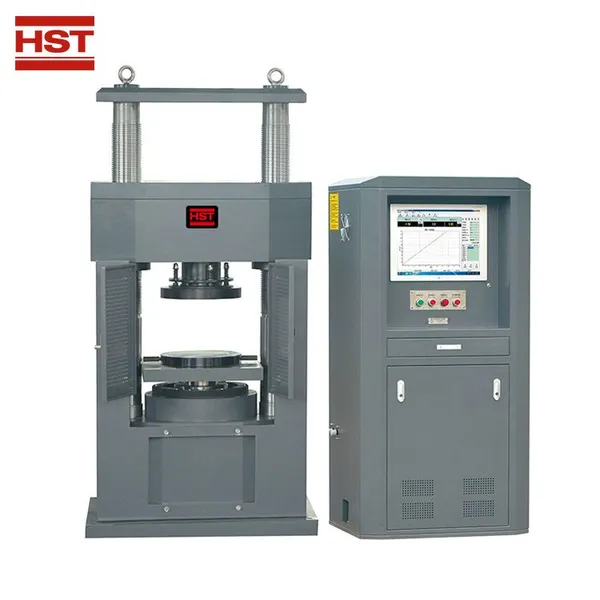

HST-YAW3000D HST-YAW3000D-II 3000kN Automatic Concrete Compression Testing Machine 200T 300T Compression Testing Machine
US$ 59482.15
1 - 2 Set
US$ 52484.25
≥3 Set
Key Specifications
Get Latest Price
Type:
Hydraulic Compression Testing Machine
Platens Size:
Ø300 mm
Resolution:
1 N
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
HST-YAW-3000DH 3000kN Automatic Concrete Compression Testing Machine Compressive Strength Testing Machine 1 Year WarrantyUS$ 84534.64 - 105528.34MOQ: 1 Set -
HST Different Capacity 500KN 1000KN Concrete Creep Testing MachineUS$ 68579.42 - 69979.00MOQ: 1 Set
-
HST Strength Testing Concrete Press Test Hydraulic Compression Machine With Low PriceUS$ 10496.85 - 13995.80MOQ: 1 Set
-
HST HYJ-600S 600kn 60Ton Digital Manhole Cover Compression Testing MachineUS$ 62981.10 - 66480.05MOQ: 1 Set
-
HST YAW-1000DH 100Ton Motor Cement Brick Concrete Compression Testing MachineUS$ 66480.05 - 69979.00MOQ: 1 Set
Platens Size
Ø300 mm
Resolution
1 N
Model Number
HST-YAW3000D-II
Brand Name
HST
Place of Origin
Shandong, China
Input Voltage
380 V
Product name
Computer Control Compression Testing Machine
Model
HST-YAW3000D-II
Application
compression test of building material items
Load capacity (kN)
3000
Test Accuracy
Class1
Force range
4%-100%FS
Column spacing(mm)
400
Compression Platens(mm)
300
Piston stroke(mm)
50
weight
about 1000kg

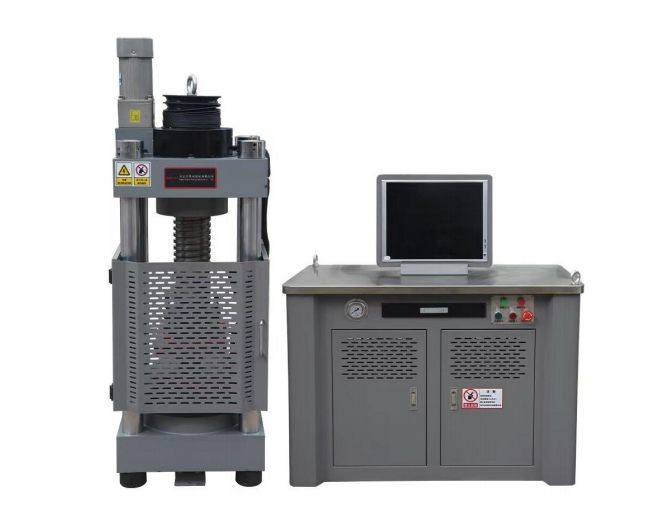

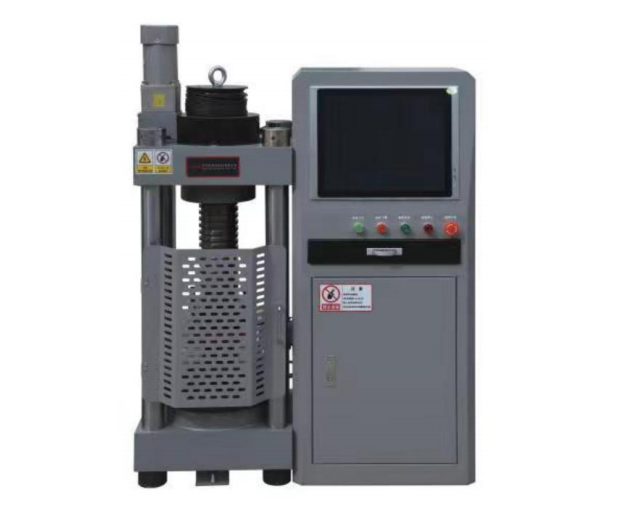

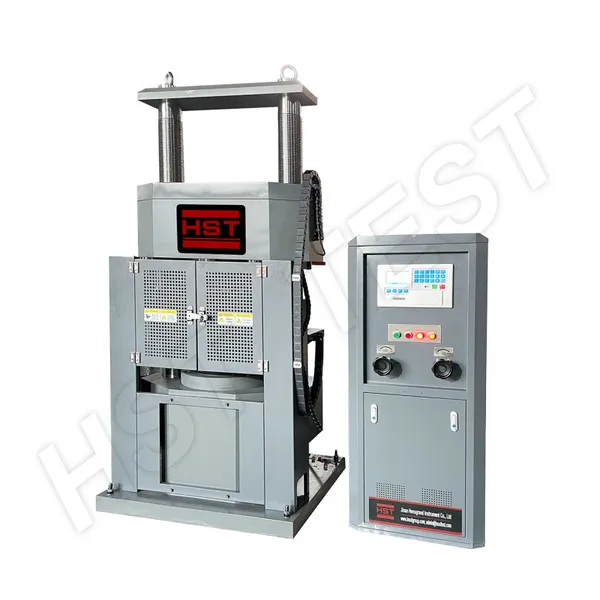

HST-YAW-3000D HST-YAW-3000D-II compression testing machine
If you want to know more models, price please contact Lisa:
Email: lisa@hssdtest.com Whatsapp/Wechat: 008615866783008
Products Description
Application :
The testing machine tests the mechanical properties of cement, mortar, brick, concrete and other
building materialswith servo motor acceleration and deceleration control technology, showing the
load value, loading speed and loading curve. The test data is automatically processed, stored,
and printed.This series compression testing machine is mainly designed for compression test of building material items, such as concrete cube, concrete blocks, cement specimen, and bricks etc, also used for compression performance test of rubber pad and top forge test of metal. With new design idea and advanced technology, this series have more
advantages in appearance, operation & applications. It is the ideal test equipment for quality control at industry & mineral enterprises, education in high schools, and technology researches at scientific institutes.
building materialswith servo motor acceleration and deceleration control technology, showing the
load value, loading speed and loading curve. The test data is automatically processed, stored,
and printed.This series compression testing machine is mainly designed for compression test of building material items, such as concrete cube, concrete blocks, cement specimen, and bricks etc, also used for compression performance test of rubber pad and top forge test of metal. With new design idea and advanced technology, this series have more
advantages in appearance, operation & applications. It is the ideal test equipment for quality control at industry & mineral enterprises, education in high schools, and technology researches at scientific institutes.
Standards:
It is conformed to EN 12390-3, 12390-4; BS 1881,ASTM E4, ASTM C139, ISO7500-1,
EN10002-2, BS 1610, DIN51220, C1231 –AASHTO T22 -NF P18-411 -UNE 83304, 7242 etc.
It is conformed to EN 12390-3, 12390-4; BS 1881,ASTM E4, ASTM C139, ISO7500-1,
EN10002-2, BS 1610, DIN51220, C1231 –AASHTO T22 -NF P18-411 -UNE 83304, 7242 etc.
Applicable Specimen size:
Extensive ranges for Cubic sample: 100mm, 150mm, 200mm and more;
Rectangular sample: 400x200x200mm, 400x200x400mm etc;
Cylindrical sample dia.150x300mm, dia.100x200mm, dia. 200x400mm or others as per
customer required.
Remark: test space can be customized according to specified specimen size.
Extensive ranges for Cubic sample: 100mm, 150mm, 200mm and more;
Rectangular sample: 400x200x200mm, 400x200x400mm etc;
Cylindrical sample dia.150x300mm, dia.100x200mm, dia. 200x400mm or others as per
customer required.
Remark: test space can be customized according to specified specimen size.

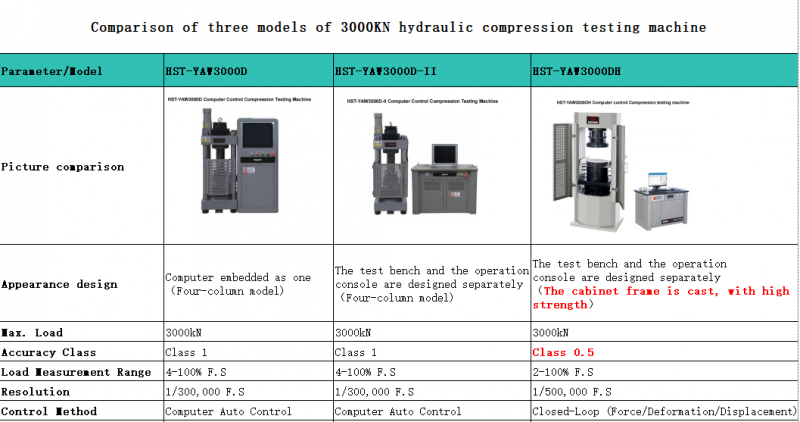

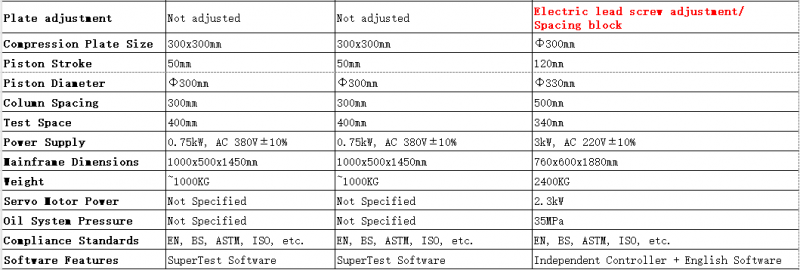

Main Technical Parameters:
Model | HST-YAW-3000D HST-YAW-3000D-II |
Load capacity(KN) | 3000KN |
Test Accuracy | Class1 |
Force range | 4%-100%FS |
Upper and low compression platen | 300x300mm |
Column spacing(mm) | 400mm |
Distance between two columns | 300mm |
Piston diameter | 300mm |
Mainframe dimensions | 1000x500x1450mm |
Piston stroke(mm) | 50 |
weight | about 1000kg |
The total power of the power supply | 0.75KW, AC 380V±10% |
Company Profile
Recommend Products
50N-5KN Single Column Universal Testing Machine | Electronic Universal Testing Machine with 10kN Pneumatic Grips | Electronic Universal Testing Machine with Hydraulic grips |
Electronic Universal Testing Machine with Temperature Chamber | 50kN -1000kN Hydraulic Dynamic Static Fatigue Testing Machine | 100kN -2000kN Servo Hydraulic Universal Testing Machine |
Customer Photos
Exhibition
Certifications
FAQ:
Are your company a trading one or a factory ?
Factory + trade (integration),19 years focusing on test instruments field,14 years exporting experience.
How to choose the most suitable products?
Our professional team will give you the best suggestion as long as you tell us what kind of test you need to do and the required specification.
How to operate the machine ?
We will deliver English manual and video with the machine to you. If you still need our help, please contact us.
Does the machine can be customized according to my requirements ?
Sure, we have a strong technical team and have rich experience. Our goal is to make you satisfied.
What's the delivery term?
At most of time, we have stock in the factory. If there is no stock, normally, the delivery time is 3-10 working days after deposit receipt. If you are in urgent need, we can consider making special arrangement for you.
How about your warranty?
Generally, our warranty is one year. Within the warranty period, we can offer technique support and part parts change, necessarily, our engineers may go to your place for better service.
Can you arrange the shipment for me ?
We can arrange the shipment for our clients by sea or by air. Trading terms FOB, CIF, EXW are available.
