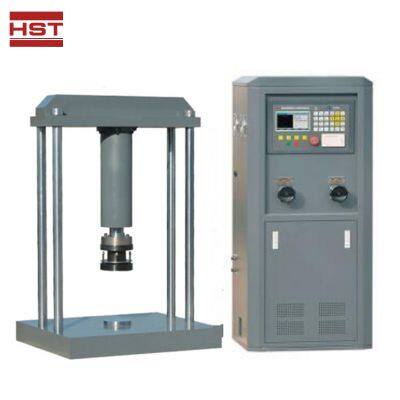

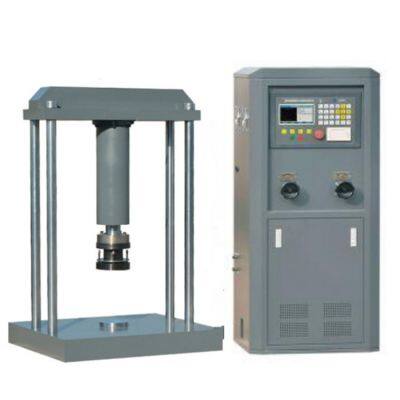

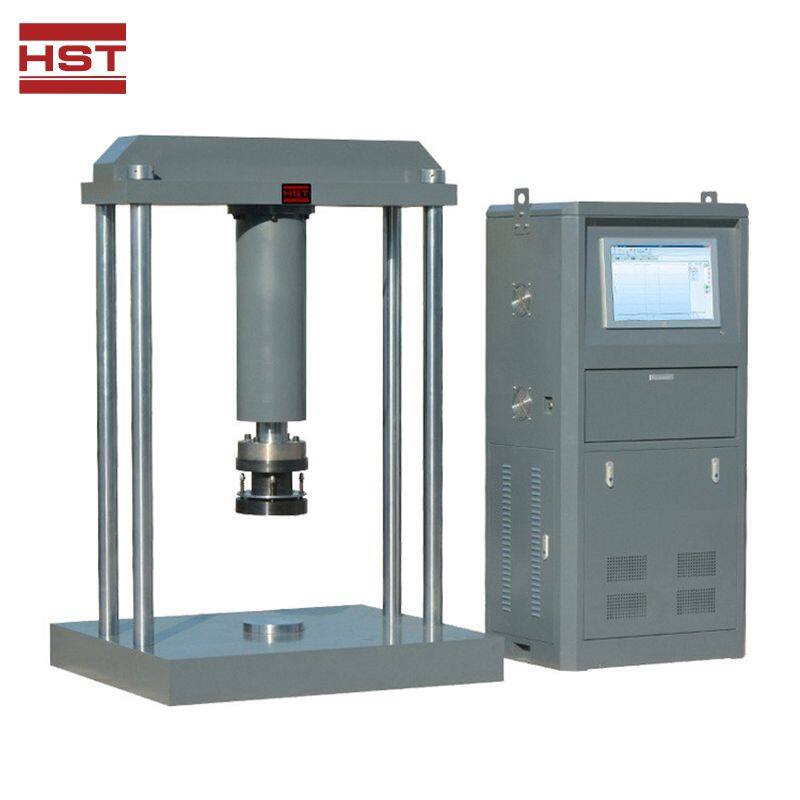

HST-YJ600W Computer Control
Manhole Cover Compression Testing Machine
Application
This machine is used to determine compression strength and residual deformation of castiron
manhole cover. Compositive manhole and steel fiber reinforced concrete well cover. It can do the compression test to other material if equipped with other accessories.
Standards:
CJ / T3012-1993 "Cast Iron Inspection Manhole Cover"
CJ / T121-2000 "Recycled Resin Composite Material Inspection Manhole Cover" CJ/T211-2005 "Polymer Matrix Composite Material inspection Manhole cover" CJ/T511-2017 "Cast Iron Inspection Manhole Cover"
JC889-2001 "Steel Fiber Reinforced Concrete Inspection Manhole Cover"
GB / T 23857-2009 "Inspection Manhole Cover"
Specifications
|
Model |
HST-YJ600W |
|
Control model |
Computer automatic control |
|
Max test force |
600kN |
|
Accuracy class |
Class 1 |
|
Effective test space |
1200× 1200mm |
|
Test range |
2%-100%FS |
|
Deviation of deformation measure |
0.001mm; |
|
Max. piston moves speed |
80 mm/min |
|
Maximum compression space |
400 mm |
|
Compression plate size |
Upper pressure plate size Φ250mm Down pressure plate size Φ 360mm |
|
Deformation measuring range |
0-20 |
|
Piston stroke |
400 mm |
|
Power Supply |
AC380V±10%, 50Hz/60Hz |
|
Mainframe dimensions |
1220×1050×1900mm |
|
Control cabinet dimensions |
800×600×1600mm |
|
Weight of Mainframe |
300kg |
|
Weight of control cabinet |
2500kg |
|
Video (Round sample) |
|
|
Video (Rectangle Sample) |
