HCT -1000 Servo Control Concrete Pipe Testing Equipment
1.Application:
Factory direct supply: HCT -1000 Servo Control Concrete Pipe Compression Testing Machine is designed for the radial compression test of drainpipe and other cement pipes which is in accordance with 'Test Method of Concrete and Ferroconcrete Drainpipe'. It is also suitable for the compression test of other metallic and non-metallic pipes. It consists of load frame, oil source, computer and servo unit.
2.Load frame:

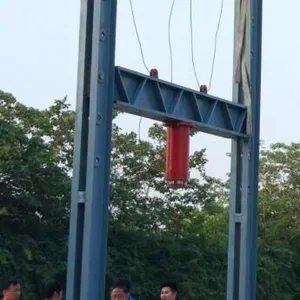

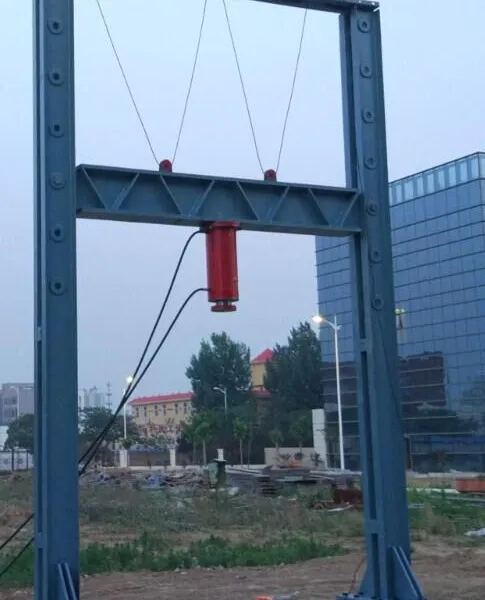

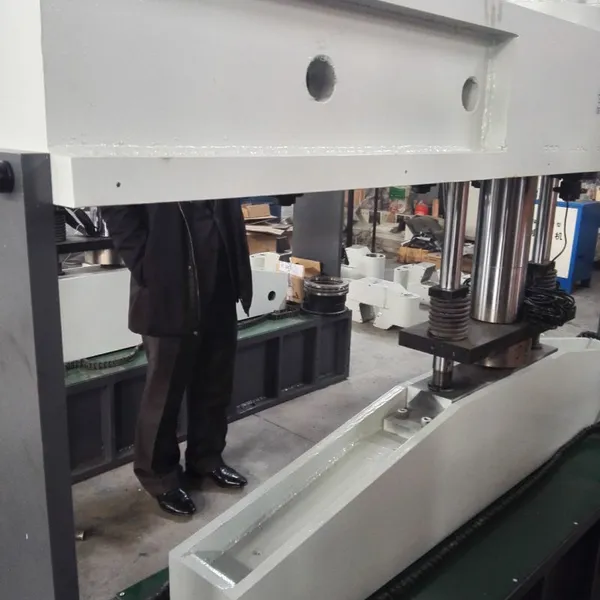

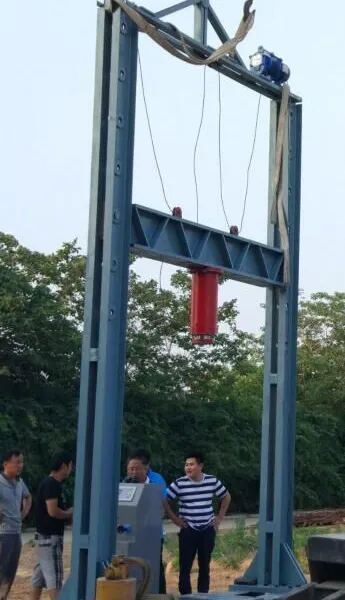

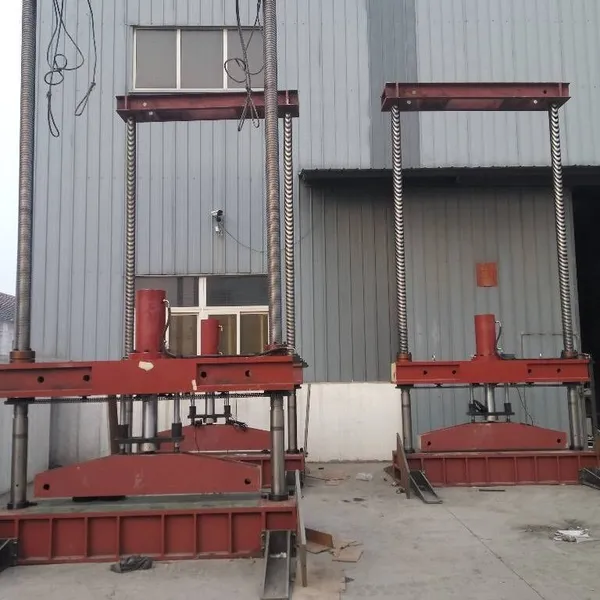

The load frame has dual columns with top actuator.
The base of the load frame is made of steel plate and
it is convenient to take in and off the specimen (drainpipe and other concrete pipe). The oil power source has constant servo with flow 4.1L/min, 26Mpa. The servo valve is Bosch/Moog or Atos. Load is measured by load cell. The deformation can be measured through two digital dial indicators
3.Specification:
|
No |
Item |
HCT-100 |
HCT-200 |
HCT-500 |
HCT-600 |
HCT-700 |
|
1 |
Max. Load (kN) |
100 |
200 |
500 |
600 |
700 |
|
2 |
Measuring range (kN) |
2-100 |
4-200 |
10-500 |
12-600 |
14-700 |
|
3 |
Load measuring method |
Load cell |
||||
|
4 |
Precision grade |
±1% |
||||
|
5 |
Test space (mm) |
1000 |
2000 |
|||
|
6 |
Upper platen size (mm) |
1000x100x120 (With rubber base plate of 25-30mm, Shore hardness is 45-60) |
2000x120x30, (With rubber base plate of 25-30mm, Shore hardness or 45-60mm) |
|||
|
7 |
Lower platen size (mm) |
1000x60x30 (With 2 wooden supporting beam, each dimension 110x60x80mm. The net space between two beams is 1/12 of the diameter of pipe) |
2000x(130-300)x150 (With 2 wooden supporting beam, each dimension 1100x60x80mm. The net space between two beams is 1/12 of the diameter of pipe) |
|||
|
8 |
Compression platens for concrete (mm) |
Ø230 |
Ø230 |
|||
|
9 |
Piston stroke (mm) |
200 |
200 |
|||
|
10 |
Space between two columns (mm) |
1200 |
2200 |
|||
|
11 |
Load speed (mm/min) |
0.5-100 |
≥50 |
|||
|
12 |
Power |
3 phases, 380V, 50Hz |
||||
|
13 |
Dimensions (mm) |
1400x350x1950 |
2700x800x4300 |
|||
|
14 |
Weight (kg) |
Approx. 1800 |
Approx. 4500 |
|||
YES-2000 YAW-2000D YES-300 YAW-300D
