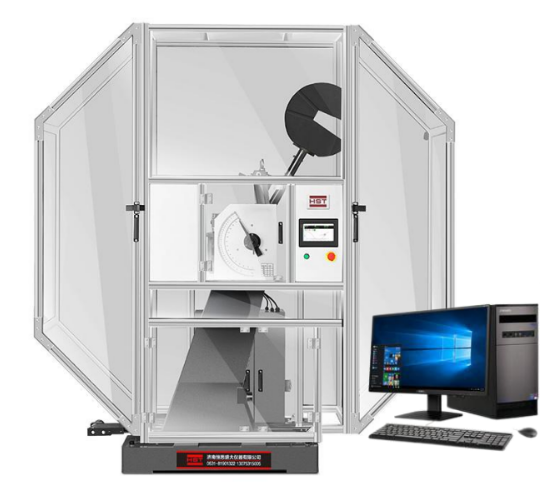

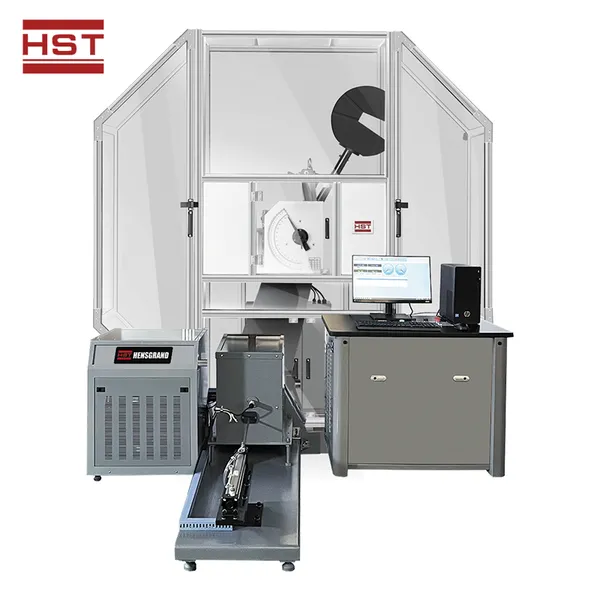

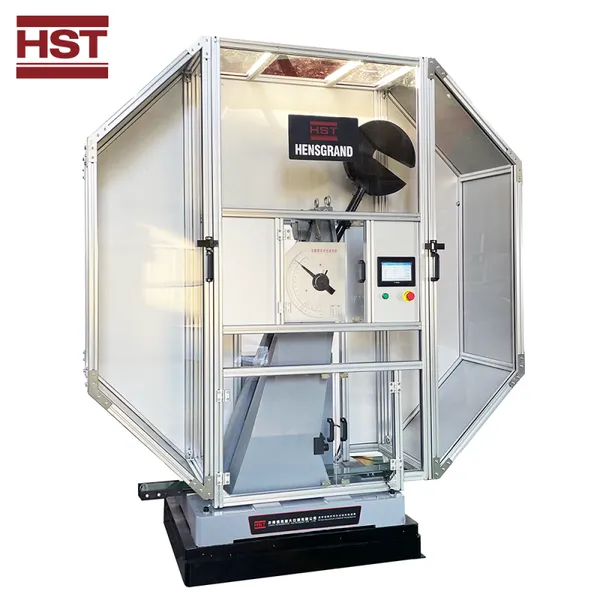

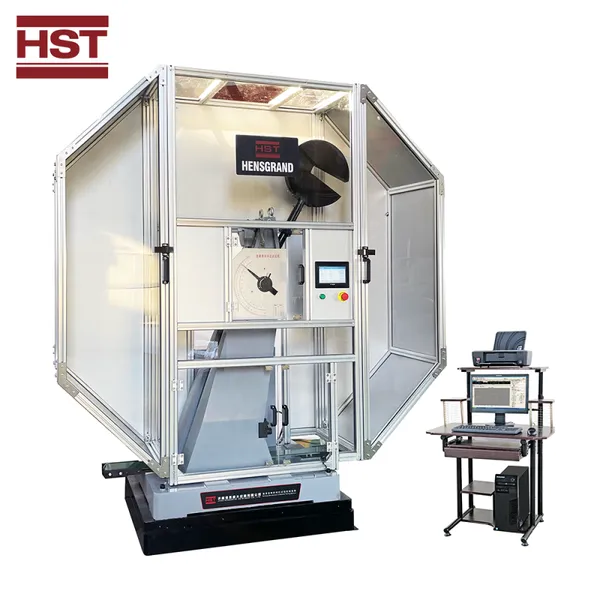

High Precision HST JBSW-300C 300J Computer and Digital Display Pendulum Impact Testing Machine 300J Impact Testing Machine
US$ 11200 - 12480
MOQ: 1 Set
Key Specifications
Get Latest Price
Type:
Testing Machine
Accuracy:
≤± 0.5%
brand name:
HST
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
HST JBW-300B 300J Computer Control Impact Testing Machine 300J Charpy Impact Testing Machine Metal Impact Testing MachineUS$ 3680 - 4080MOQ: 1 Set -
HST JBS-50 50J Digital Display Metal Impact Testing Machine 50J Charpy Impact Testing Machine Metal Impact Testing MachineUS$ 1650 - 1860MOQ: 1 Set
-
HST JB-500B 500J Motorized Impact Testing Machine 250J 500J Charpy Impact Testing Machine Metal Impact Testing MachineUS$ 4100 - 4560MOQ: 1 Set
-
HST JB-300 150J 300J Manual Impact Testing Machine 150J 300J Charpy Impact Testing MachineUS$ 1780 - 1980MOQ: 1 Set
-
HST XJJD-15T 7.5J 15J Touch Screen Charpy Impact Testing Machine 7.5J 15J Charpy Impact Testing MachineUS$ 10216.94 - 11336.60MOQ: 1 Set
Accuracy
≤± 0.5%
brand name
HST
place of origin
Shandong, China
Application
Universal Testing, Auto Testing, Plastic Testing, Textile Testing, Paper Testing, Strength Testing, Tensile Testing, Compression Testing, Impact Testing
customized support
OEM, ODM
power
250KW
Protection Class
IP65
Voltage
380 V
warranty
1 Year
Product name
Computer and digital display impact testing machine
Model
HST JBSW-300C
Max. impact energy
300J
Dial scale range and division value
2J
Pendulum torque
160.7695 N/m
Impact speed
5.24 m/s
Specimen support surface inclination
11°±1°
Pendulum pre-lift angle
150°
Support span
40+0.2mm
Power supply
3 phase, AC380V±10%, 50Hz
HST JBSW-300C Computer And Digital Display Pendulum Impact Testing Machine
For price and model details, please contact Lisa:
Email:lisa@hssdtest.com Whatsapp/Wechat: 008615866783008
Email:lisa@hssdtest.com Whatsapp/Wechat: 008615866783008
Products Description
Application
2. GB/T 229-2020 "Metallic materials Charpy pendulum impact test method"
3. JJG 145-2007 "Pendulum impact test machine"
4. ASTM E23-07a "Standard Test Methods for Notched Bar Impact Testing of Metallic Materials"
5. ISO 148:1998 "Metallic materials – Charpy pendulum impact test"
The HST JBSW-300C microcomputer-controlled impact testing machine produced by our company is a new generation of high-tech testing equipment developed according to the national standard GB/T3808-2018 "Inspection of pendulum impact testing machine", and performs impact tests on metal materials according to the national standard GB/T229-2020 "Metal Charpy notch impact test method". The cross section of the sample used is 10×10mm. It mainly tests ferrous metals with large impact toughness, especially steel and its alloys.
The test principle of this product is to calculate the difference between the potential energy before the pendulum impact and the residual potential energy after the impact, and obtain the absorbed work of the tested sample. The equipment operation can be controlled by manual control box or computer automatic control. It is easy to operate and has high work efficiency. The residual energy after the pendulum breaks the sample can be used to automatically swing the pendulum, and the test results can be saved and printed. When the impact test of the sample is carried out continuously, its superiority can be better reflected.
The test principle of this product is to calculate the difference between the potential energy before the pendulum impact and the residual potential energy after the impact, and obtain the absorbed work of the tested sample. The equipment operation can be controlled by manual control box or computer automatic control. It is easy to operate and has high work efficiency. The residual energy after the pendulum breaks the sample can be used to automatically swing the pendulum, and the test results can be saved and printed. When the impact test of the sample is carried out continuously, its superiority can be better reflected.
Standard:
1. GB/T 3808-2018 "Inspection of pendulum impact test machine"
2. GB/T 229-2020 "Metallic materials Charpy pendulum impact test method"
3. JJG 145-2007 "Pendulum impact test machine"
4. ASTM E23-07a "Standard Test Methods for Notched Bar Impact Testing of Metallic Materials"
5. ISO 148:1998 "Metallic materials – Charpy pendulum impact test"
MODEL | HST JBSW-300C |
Display type | Computer display, digital display and dial display |
Max. impact energy | 300J |
Dial scale range and division value | 2J |
Pendulum torque: | 160.7695 N•m |
Pendulum pre-lift angle: | 150º |
The distance between the pendulum shaft and impact point | 750mm |
Impact speed | 5.24 m/s |
pecimen support end arc radius | 1~1.5mm |
Specimen support support surface inclination | 11º±1º |
Support span | 40+0.2mm |
Impact knife arc radius | 2~2.5mm |
Impact knife blade radius | R2mm |
Impact knife thickness | 16 mm |
Minimum resolution of computer displa | 0.1J |
Standard specimen dimension | 10╳10╳55mm |
Motor power | 380V180W |
Power supply | three-phase four-wire 50Hz380V |
Dimensions | about 2100╳850╳2200mm |
Net Weight | about 850kg |
