HST JBS-50 50J Digital Display Metal Impact Testing Machine 50J Charpy Impact Testing Machine Metal Impact Testing Machine
US$ 1650 - 1860
MOQ: 1 Set
Key Specifications
Get Latest Price
Type:
Testing Machine
Accuracy:
≤± 0.5%
brand name:
HST
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
HST JB-500B 500J Motorized Impact Testing Machine 250J 500J Charpy Impact Testing Machine Metal Impact Testing MachineUS$ 4100 - 4560MOQ: 1 Set -
HST JB-300 150J 300J Manual Impact Testing Machine 150J 300J Charpy Impact Testing MachineUS$ 1780 - 1980MOQ: 1 Set
-
HST XJJD-15T 7.5J 15J Touch Screen Charpy Impact Testing Machine 7.5J 15J Charpy Impact Testing MachineUS$ 10216.94 - 11336.60MOQ: 1 Set
-
DWC40 -40c Metal Impact for Test Specimen Compressor 1-Year Warranty Cooling Chamber for Test Equipment 220V VoltageUS$ 1200 - 1599MOQ: 1 Set
-
DWC60 -60c Metal Impact for Test Specimen Compressor 1-Year Warranty Cooling Chamber for Test Equipment 220V VoltageUS$ 1200 - 1599MOQ: 1 Set
Accuracy
≤± 0.5%
brand name
HST
place of origin
Shandong, China
Application
Universal Testing, Auto Testing, Plastic Testing, Textile Testing, Paper Testing, Strength Testing, Tensile Testing, Compression Testing, Impact Testing
customized support
OEM, ODM
power
/
Protection Class
IP65
Voltage
Other
warranty
1 Year
Product name
Digital Display Metal Impact Testing Machine
Model
HST JBS-50
Max. impact energy
50J
The span of the sample support(mm)
30-40mm adjustable
Impact speed
3.8m/s
Raised angle
150°
Standard sample size
10*10*55/5*5*50mm
Digital display resolution Angle
0.01°
Digital display resolution Energy
0.001J

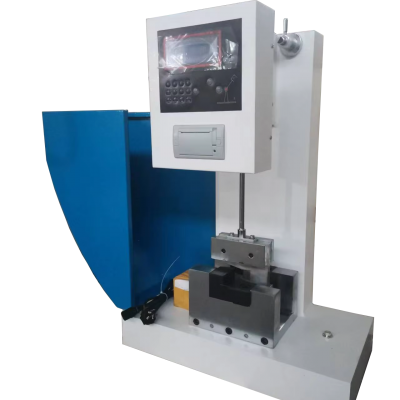

HST JBS-50 Digital Display Metal Pendulum Impact Testing Machine
For price and model details, please contact Lisa:
Email:lisa@hssdtest.com Whatsapp/Wechat: 008615866783008
Products Description
1.Application
GB/T 3808-2018 Test of pendulum impact testing machine.
GB/T 229-2020 Metallic materials Charpy pendulum impact test method test.
GB/T 1817-2017 Test method for impact toughness of cemented carbide at room temperature.
GB/T 18658-2002 Charpy V-notch standard specimen for testing of pendulum impact testing machines
This impact testing machine is used to measure the impact resistance performance of metal materials under dynamic load, so as to judge the quality status of materials under dynamic load. This testing machine is suitable for ferrous metals and cemented carbide materials with small impact toughness, which can be used for the impact of metal materials in the material laboratories of scientific research units, colleges and universities, metallurgy and machinery manufacturing industries.
2.Standard:
JJG 145-2007 Verification regulation of pendulum impact testing machine.
GB/T 3808-2018 Test of pendulum impact testing machine.
GB/T 229-2020 Metallic materials Charpy pendulum impact test method test.
GB/T 1817-2017 Test method for impact toughness of cemented carbide at room temperature.
GB/T 18658-2002 Charpy V-notch standard specimen for testing of pendulum impact testing machines
3.Important technical parameters
MODEL | HST JBS-50 | |
Impact energy(J) | 50 | |
Pendulum moment(N·M) | 26.79492 | |
This machine comes standard with 1 set of pendulum (including 2 energy levels) | ||
Impact speed(m/s) | 3.8 | |
pendulum pre-lifting Angle | 150° | |
The span of the sample support(mm) | 30-40mm adjustable | |
Support pliers rounded Angle(mm) | R1.0~1.5 | |
Impact blade rounded Angle(mm) | R2.0~2.5 | |
Pendulum center to impact point distance(mm) | 395 | |
Standard sample size | 10*10*55/5*5*50mm | |
Digital display resolution | Angle: 0.01° | |
Energy: 0.001J | ||
Power supply | AC220V±10% 50Hz | |
Structure and performance：
The testing machine is composed of fuselage, impact pendulum, sample support, measuring device, control mechanism and other parts
1. Fuselage: composed of a beam, Angle positioning mechanism and level.
2, impact pendulum: by an upper connecting sleeve, pendulum rod, pendulum, positioning block, impact blade, etc.
The pendulum energy consists of one main pendulum and four counterweight weights. One main pendulum is 25J. There are 4 pieces of 50J counterweight (users can choose according to their needs).
3. Sample support: composed of clamp support, clamp mouth and press block
4. Control mechanism: manual lifting hammer hanging pendulum, composed of manual and electric impact release mechanism. The mechanism is to fix the impact pendulum at a position of 150° and impact with an electric drop hammer.
5, measuring device: composed of a digital display acquisition system. The energy consumed by the sample after impact and the impact strength are shown.
6. The impact energy is calculated according to the following formula:
E=Pd (cosβ-cosα)
Where: Pd -- impact white moment (constant)
α -- measured value of pre-lifting Angle of impact pendulum (constant)
Beta -- Angle of rise after impact
