High Quality HST-DIT1800E Ejection Impact Testing Machine
US$ 170000 - 182000
MOQ: 1 Set
Key Specifications
Get Latest Price
Type:
Testing Machine
Accuracy:
≤±1%
brand name:
HST
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
High Quality HST-DWTT80000 80000J Drop Weight Impact Testing MachineUS$ 170000 - 182000MOQ: 1 Set -
High Precision JBW JBS 600J 750J Instrumented Pendulum Impact Testing Machine 1-Year Warranty for Long-Term Material TestingUS$ 28500 - 31500MOQ: 1 Set
-
HST Charpy Impact Testing Machine JB-300C 1-Year Warranty Long-Term Material Testing Semi-automatic Impact MachineUS$ 8500 - 10800MOQ: 1 Set
-
High Precision HST JBS-450C Touch Screen Pendulum Impact Testing Machine 1-Year Warranty for Long-Term Material TestingUS$ 8800 - 10800MOQ: 1 Set
-
30000J DWTT Ferrite Steel Pipeline Drop Weight Tear Impact Testing Machine FactoryUS$ 75000 - 80000MOQ: 1 Set
Accuracy
≤±1%
brand name
HST
place of origin
Shandong, China
Application
Universal Testing, Auto Testing, Plastic Testing, Textile Testing, Paper Testing, Strength Testing, Tensile Testing, Compression Testing, Impact Testing
customized support
OEM, ODM
power
3KW
Protection Class
IP65
Voltage
380 V
warranty
1 Year
Product name
Ejection Impact Testing Machine
Model
HST-DIT1800E
Impact energy
6~1800J
Impact speed
1.6~20m/s
impact height
0.1~1.2m(Simulation up to 20m)
maximum impact speed
7m/s~20m/s(70kg~3kg)
Hammer lifting speed
1m/min~3m/min Continuous adjustable
Hammer head positioning accuracy
1mm
Experimental dynamic error
<2%
Maximum load of impact force sensor
100kN

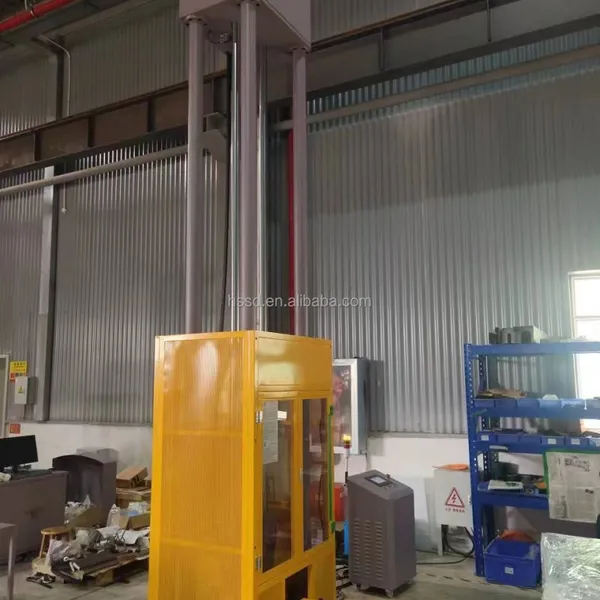

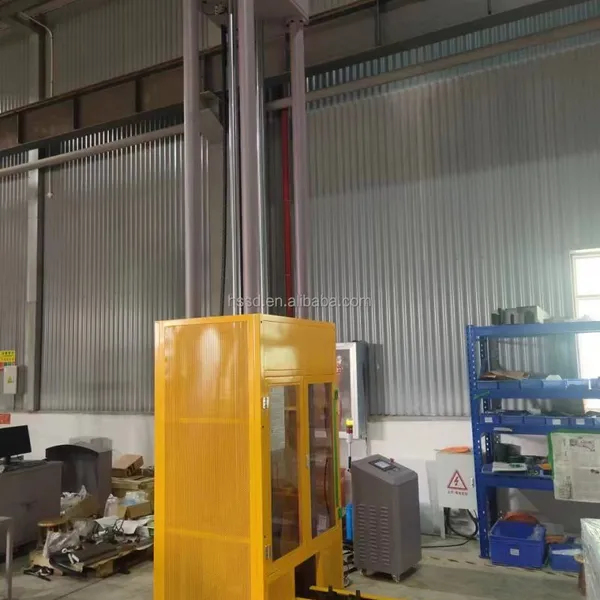

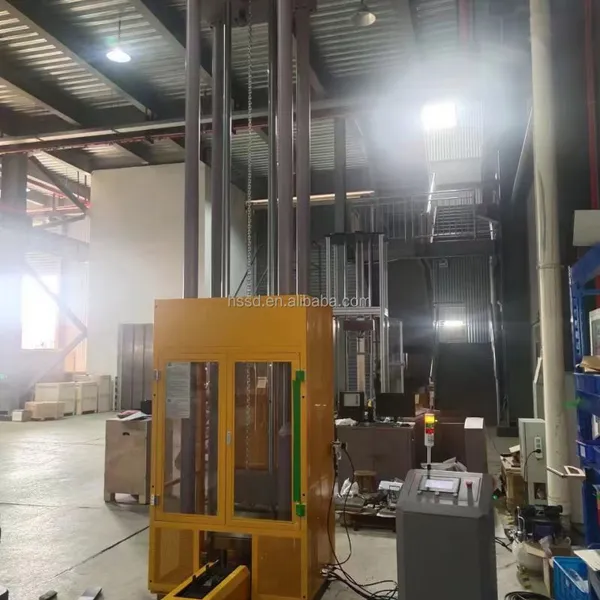

HST-DIT1800E Ejection Impact Testing Machine
For price and model details, please contact Lisa:
Email:lisa@hssdtest.com Whatsapp/Wechat: 008615866783008
Products Description
1.Application :
-ASTM D 3763-02《Standard Test Method for High Speed Puncture Properties of Plastics Using Load and Displacement Sensors》
-ASTM E 23-07a《Standard Test Methods for Notched Bar Impact Testing of Metallic Materials》
3.Specifications
The ejection drop weight impact testing machine is mainly a testing equipment for testing the impact resistance of various metal and non-metal pipes and plates (including various non-metal materials such as plastics, ceramics, nylon, building materials, etc.). The impact force value sensor and test system are used, and the high-speed data acquisition card uses the oscilloscope impact sensor to measure the load and deformation transient values during the fracture process of the impacted sample, that is, the impact absorbed energy, the force-displacement-energy curve and the curve during the impact process. Characteristic points on:slope discontinuity force F1, maximum contact force Fm, maximum force energy Wm, total impact energy Wt and corresponding displacement, enabling data analysis of the sample impact process to reflect the material's ability to resist dynamic impact loads. , analysis of the stress and deformation characteristics of the specimen when subjected to impact loading and the dynamic fracture toughness of the material under high strain rates.
2.Standards:
1. -ASTM D 7136/D 7136M-05《Standard Test Method for Measuring the Damage Resistance of a Fiber-Reinforced Polymer Matrix Composite to a Drop-Weight Impact Event》
-ASTM D 3763-02《Standard Test Method for High Speed Puncture Properties of Plastics Using Load and Displacement Sensors》
-ASTM E 23-07a《Standard Test Methods for Notched Bar Impact Testing of Metallic Materials》
3.Specifications
Technical projects |
HST-DIT1800E |
|
Impact energy |
6～1800J |
|
Impact speed |
1.6～20m/s |
|
impact height |
0.1～1.2m(Simulation up to 20m) |
|
maximum impact speed |
7m/s～20m/s（70kg～3kg） |
|
Hammer lifting speed |
1m/min～3m/min Continuous adjustable |
|
Hammer head positioning accuracy |
1mm |
|
Maximum load of impact force sensor |
100kN |
|
Impact force value sensor static linear error |
Full range ±1%（10%～50%FS） Point by point ±2%（50%～100%FS） |
|
A/D sampling resolution |
16bits |
|
Maximum sampling frequency |
2MHz |
|
Frequency response |
500kHz |
|
Channel storage capacity |
60000点 |
|
Experimental dynamic error |
<2% |
|
Test area space |
720mm×660mm×580mm |
|
Testing machine dimensions |
920×860mm×3300mm |
|
Testing machine net weight |
1200kg |
|
power supply |
220V±10%，50Hz±10%，3kw |
4. Overall dimensions:
The overall dimensions of this equipment are shown in the table and diagram below: (Unit: mm)
Model |
Dimension AxBxC |
Max. Impact height |
Spring compression space |
HST-DIT1800E |
920×860×3300 |
1200 |
150 |
