Home > Instruments & Meters > Test Instrument > Test Machine > JBS-300C Touch Screen Metal Charpy Impact Testing Machine 300J ASTM E23 Standard High Precision Equipment

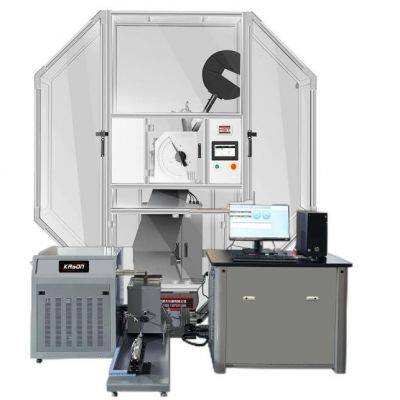

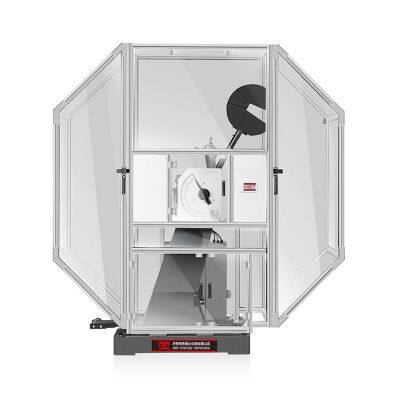

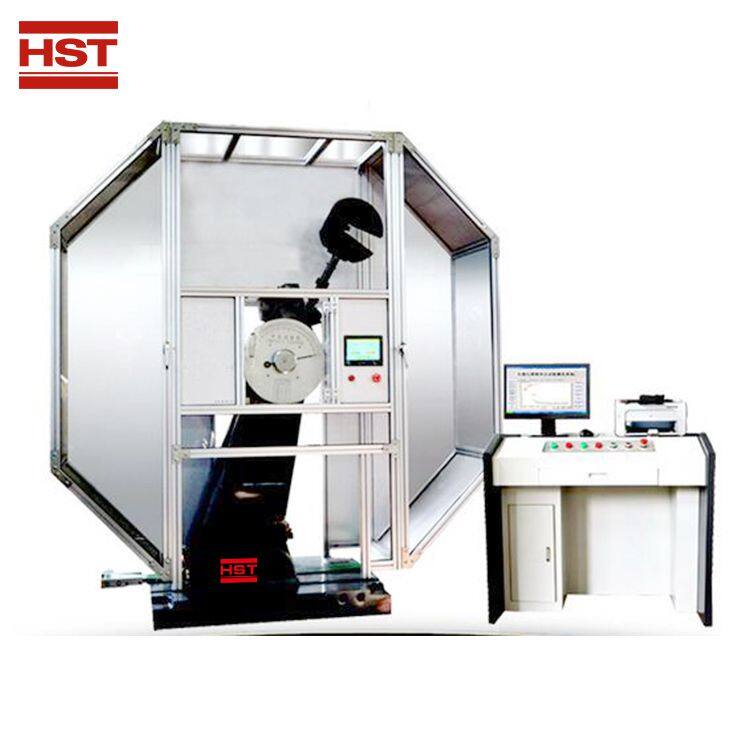

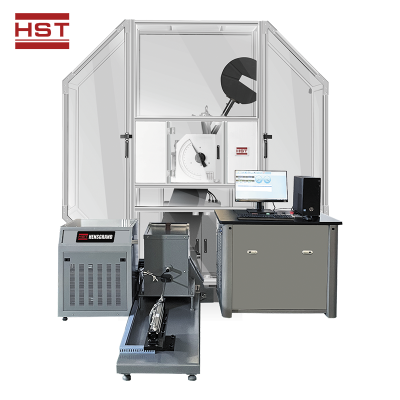

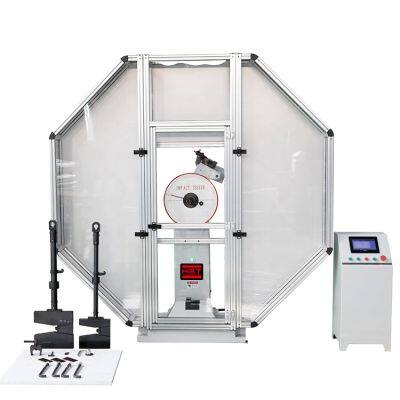

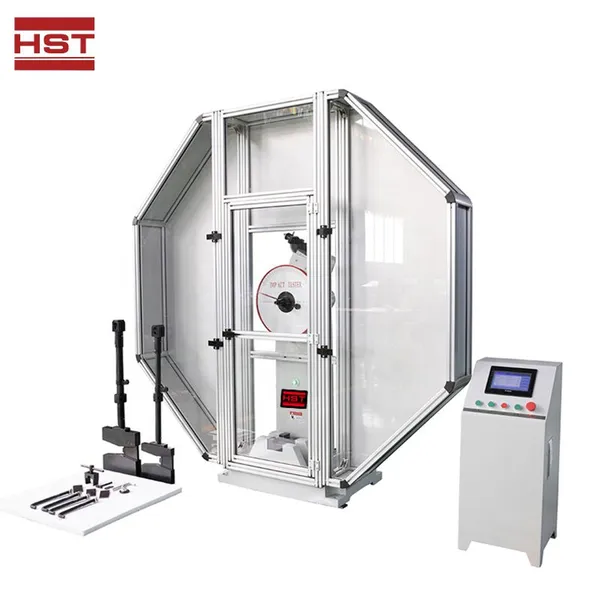

JBS-300C Touch Screen Metal Charpy Impact Testing Machine 300J ASTM E23 Standard High Precision Equipment
US$ 8000 - 9000
MOQ: 1 Set
Key Specifications
Get Latest Price
Type:
Testing Machine
Accuracy:
class1, 1 Grade
brand name:
HST
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
JBW-300B Series Computer Monitor Pendulum Charpy Impact Tester + Charpy Low Temperature Impact Tester + Impact Testing MachineUS$ 45486.35 - 48985.30MOQ: 1 Set -
High Quality HST-DIT1800E Ejection Impact Testing MachineUS$ 170000 - 182000MOQ: 1 Set
-
High Quality HST-DWTT80000 80000J Drop Weight Impact Testing MachineUS$ 170000 - 182000MOQ: 1 Set
-
High Precision JBW JBS 600J 750J Instrumented Pendulum Impact Testing Machine 1-Year Warranty for Long-Term Material TestingUS$ 28500 - 31500MOQ: 1 Set
-
HST Charpy Impact Testing Machine JB-300C 1-Year Warranty Long-Term Material Testing Semi-automatic Impact MachineUS$ 8500 - 10800MOQ: 1 Set
Accuracy
class1, 1 Grade
brand name
HST
place of origin
Shandong, China
customized support
OEM, ODM
power
0.75kw
Protection Class
IP55
Voltage
380 V, 220 V
warranty
1YEAR
Product name
ASTM E23 Touch Screen Metal Charpy Impact strTesting Machine
display
dial display and digital display
Power supply
AC 3 Phase 380V 60/50Hz
Certificate
CE ISO
Function
Metal material impact test
Protection
With protection net
Application
impact test for metal material
specimen size
10mm*10mm*55mm
Power
Electronic
Product Description
1. Application
Pendulum Charpy Impact Testing Machine is used to determine the impact toughness of metal materials under dynamic load according to ISO148, ASTM E23 and EN 10045. It is suitable for laboratory, metallurgy industry, machinery production, steel plant and other fields. There are three types of models: JB, JBS & JBW series.
JB Series Semi-automatic type: it features as pendulum to be raised or released automatically, dial gauge to show the impact energy. It is easy to operate with high efficiency.
JBS Series Digital Display type: adopting PLC Controller, the results can be displayed on both LCD digital screen and dial gauge. The test results also can be printed out with micro-printer.
JBW series Computer type: carry out the functions of zero clearing and automatic return, capturing the value of lost impact energy and pendulum cycle by means of setting up with computer program, and the results can be monitored, stored and printed out.
2. Specification:
Specifications | JB-300B JBS-300B JBW-300B | JB-500B JBS-500B JBW-500B | |||
Type | Type B | ||||
Impact energy (J) | 150,300 | 250,500 | |||
Impact velocity (m/s) | 5.2 | 5.4 | |||
Raised angle | 150º | ||||
Standard span (mm) | 40+0.2mm | ||||
Distance between pendulum rotating | 750 | ||||
Round angle of jaws (mm) | R1- 1.5 | ||||
Round angle of striking edge (mm) | R2-2.5 or R8±0.05 | ||||
Size of specimen (mm) | 10 x 10(7.5/5) x 55 | ||||
Power supply | 3phs, 380V, 50Hz/60Hz or Specified by users | ||||
Dimensions (mm) | 2124 x 600 x 1340 | 2144 x 736 x 1390 | |||
Gross weight(KG) | 550 | 750 | |||
