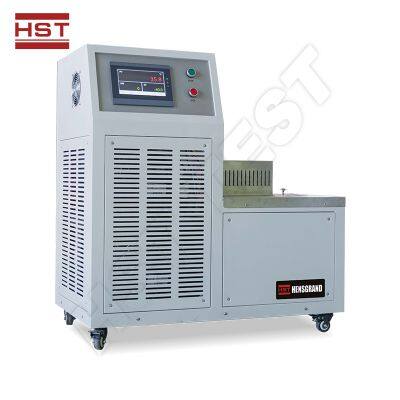

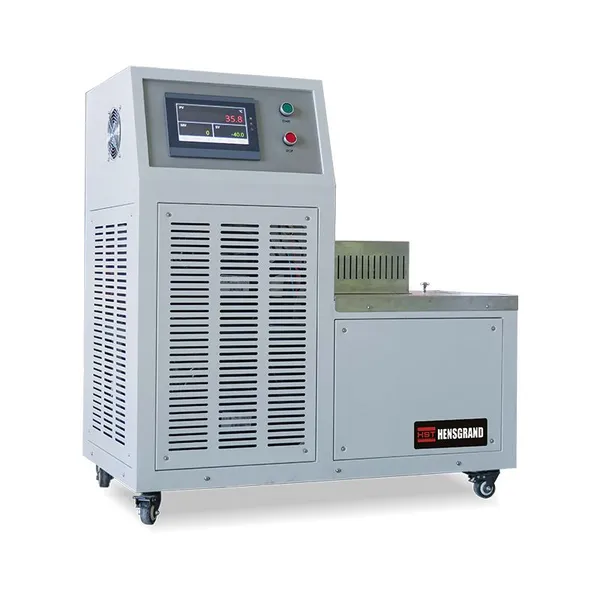

DWC100 -100c Metal Impact for Test Specimen Compressor 1-Year Warranty Cooling Chamber for Test Equipment 220V Voltage
US$ 1200 - 1599
MOQ: 1 Set
Key Specifications
Get Latest Price
Type:
Testing Machine
Display:
Digital
Accuracy:
1class
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
JBS-300C Touch Screen Metal Charpy Impact Testing Machine 300J ASTM E23 Standard High Precision EquipmentUS$ 8000 - 9000MOQ: 1 Set -
JBW-300B Series Computer Monitor Pendulum Charpy Impact Tester + Charpy Low Temperature Impact Tester + Impact Testing MachineUS$ 45486.35 - 48985.30MOQ: 1 Set
-
High Quality HST-DIT1800E Ejection Impact Testing MachineUS$ 170000 - 182000MOQ: 1 Set
-
High Quality HST-DWTT80000 80000J Drop Weight Impact Testing MachineUS$ 170000 - 182000MOQ: 1 Set
-
High Precision JBW JBS 600J 750J Instrumented Pendulum Impact Testing Machine 1-Year Warranty for Long-Term Material TestingUS$ 28500 - 31500MOQ: 1 Set
Display
Digital
Accuracy
1class
brand name
HST OR OEM
place of origin
Shandong, China
Application
Impact Testing
customized support
OEM, ODM, OBM
power
0.75kw
Protection Class
IP55
Voltage
220 V, 380 V
warranty
1 year
Cooling range
DWC-80 -80c Metal impact test specimen compressor cooling chamber
Temperature Control Accuracy
±0.5°C
Box Material
Steel spray
refrigeration
compressor
Cooling Medium
Ethanol or other unfrozen liquid
Product Description
DWC-60 -60c Metal impact test specimen compressor cooling chamber
This equipment used liquid nitrogen refrigeration technology, the use of the principle of heat balance and mixing method of circulation to achieve uniformity of the sample auto-cooling and temperature, to fully meet the temperature indicators of national standard GB229-2007 of the provisions. The equipment is simple, convenient and efficient for working, which is the ideal equipment of specimen cooling and insulation for low-temperature impact testing. At the same time, it can also be used for other low-temperature detection and testing.
Model | DWC-40 | DWC-60 | DWC-80 | DWC-100 | |||
Temperature range | +30~-40° | +30~-60° | +30~-80° | +30~-100° | |||
Temperature Control Accuracy | ±0.5° | ||||||
Effective working space | 120×120×80mm | ||||||
Specimen dimension | 10×10×55mm | ||||||
Specimen quantity | More than 60 pcs | ||||||
Temperature dropping speed | +30°C~0°C | +30°C~0°C | +30°C~0°C | 30°C~0°C | |||
1.2°C/min | 2°C/min | 2°C/min | 2°C/min | ||||
0°c~-20°C | 0°c~-20°C | 0°c~-20°C | 0°c~-20°C | ||||
0.8°C/min | 1.5°C/min | 1.5°C/min | 1.5°C/min | ||||
-20°C~-40°C | -20°C~-40°C | -20°C~-60°C | -20°C~-40°C | ||||
0.5°C/min | 1.0°C/min,-40~-60 | 1.0°C/min | 1.0°C/min | ||||
-60°C~-80°C | -60°C~-100°C | ||||||
0.7°C/min | 0.7°C/min | 0.7°C/min | |||||
Dimensions(mm) | 800×510×480 | 800×510×480 | 800×510×480 | ||||
Mode of refrigeration | Compressor refrigeration | ||||||
Cooling Medium | Ethanol or other unfrozen liquid | ||||||
