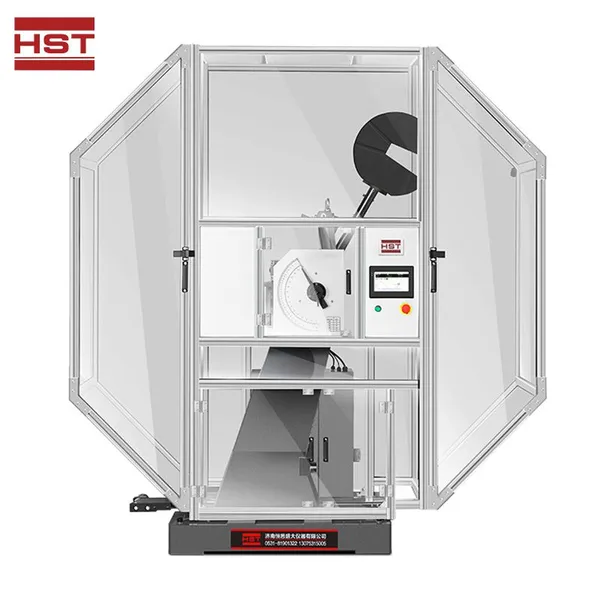

JBS-450C 450J ASTM E23 Touch Screen Metal Charpy Impact Testing Machine
US$ 8000 - 9000
MOQ: 1 Set
Key Specifications
Get Latest Price
Type:
Testing Machine
Accuracy:
class1, 1 Grade
brand name:
HST
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
HST Low Temperature Tester Cooling Chamber for Charpy v Notch Impact TestUS$ 27291.81 - 29391.18MOQ: 1 Set -
HST DWC-60 DWC-80 DWC-100 DWC-196 Low Temperature Tester Cooling Chamber for Charpy v Notch Impact TestUS$ 27291.81 - 29391.18MOQ: 1 Set
-
HST Charpy Impact Testing Low Temperature Meter With Factory Price CDW-196S Low Temperature Test Chamber for Charpy Impact TestUS$ 27291.81 - 29391.18MOQ: 1 Set
-
HST DWC-80 Degree C Metal Charpy Impact Test Sample Cooling Low Temperature Chamber TankUS$ 27291.81 - 29391.18MOQ: 1 Set
-
HST DWC-196 Impact Test Cryogenic Cooling Chamber Tester Impact Test Low Temperature ChamberUS$ 27291.81 - 29391.18MOQ: 1 Set
Accuracy
class1, 1 Grade
brand name
HST
place of origin
Shandong, China
customized support
OEM, ODM
power
0.75kw
Protection Class
IP55
Voltage
380 V, 220 V
warranty
1YEAR
Product name
ASTM E23 Touch Screen Metal Charpy Impact strTesting Machine
display
dial display and digital display
Power supply
AC 3 Phase 380V 60/50Hz
Certificate
CE ISO
Function
Metal material impact test
Protection
With protection net
Application
impact test for metal material
specimen size
10mm*10mm*55mm
Power
Electronic
Product Description
1. Application
Pendulum Charpy Impact Testing Machine is used to determine the impact toughness of metal materials under dynamic load according to ISO148, ASTM E23 and EN 10045. It is suitable for laboratory, metallurgy industry, machinery production, steel plant and other fields. There are three types of models: JB, JBS & JBW series.
JB Series Semi-automatic type: it features as pendulum to be raised or released automatically, dial gauge to show the impact energy. It is easy to operate with high efficiency.

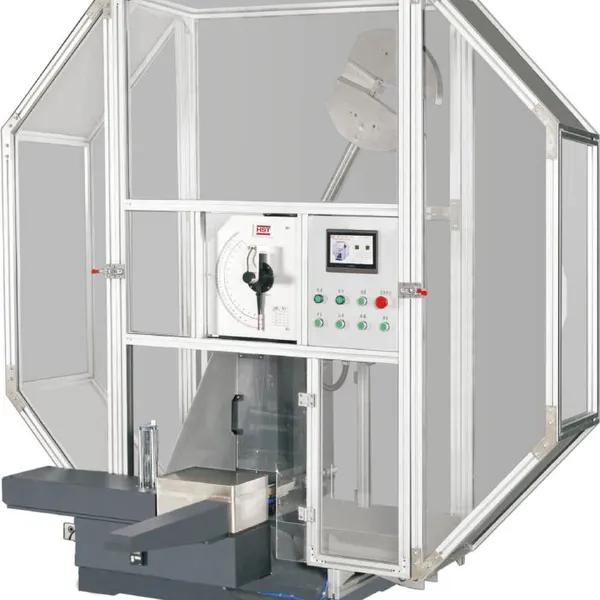

JBS Series Digital Display type: adopting PLC Controller, the results can be displayed on both LCD digital screen and dial gauge. The test results also can be printed out with micro-printer.

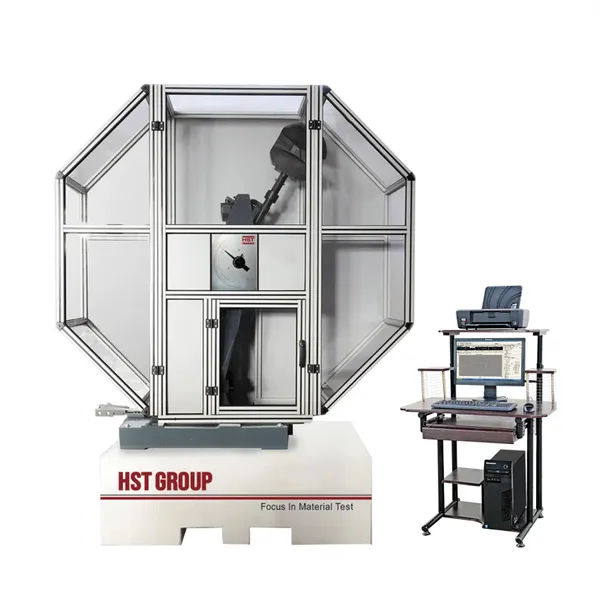

JBW series Computer type: carry out the functions of zero clearing and automatic return, capturing the value of lost impact energy and pendulum cycle by means of setting up with computer program, and the results can be monitored, stored and printed out.
2. Specification:
MODEL |
HST JBS-450C |
Machine type |
Type C |
Display type |
with dial gauge and touch screen display |
Max. impact energy |
450J |
Optional pendulum |
150J, 300J |
Pendulum moment 150J |
80.3848Nm |
Pendulum moment 300J |
150.7695 Nm |
Pendulum moment 450J |
241.1543 Nm |
The distance between the pendulum shaft and impact point |
750mm |
Impact speed |
5.24 m/s |
Angle resolution |
0.025° |
Striking angle |
150°±1 |
Support span |
40+0.2mm |
Radius of support curvature |
R1~1.5mm |
Angle of support taper |
11±1° |
Striking edge radius |
2 (R2) or 8 (R8)mm |
Striking thickness |
16 mm |
Striking tip angle |
30° |
Standard specimen dimension |
55×10×10mm, 55×10×7.5mm, 55×10×5mm according to customer sample size |
Power supply |
3 phase, AC380V±10%, 50Hz |
Dimensions |
2220×900×2220mm |
Net Weight |
1000KG |
