HST 500J Touch Screen Low-temperature Automatic Impact Testing Machine(RT to -80℃) JBDS-500Y-80

HST 500J Touch Screen Low-temperature Automatic Impact Testing Machine(RT to -80℃) JBDS-500Y-80 thumbnail-1
HST 500J Touch Screen Low-temperature Automatic Impact Testing Machine(RT to -80℃) JBDS-500Y-80 thumbnail-2
HST 500J Touch Screen Low-temperature Automatic Impact Testing Machine(RT to -80℃) JBDS-500Y-80 thumbnail-3
HST 500J Touch Screen Low-temperature Automatic Impact Testing Machine(RT to -80℃) JBDS-500Y-80 thumbnail-4
HST 500J Touch Screen Low-temperature Automatic Impact Testing Machine(RT to -80℃) JBDS-500Y-80 thumbnail-5
HST 500J Touch Screen Low-temperature Automatic Impact Testing Machine(RT to -80℃) JBDS-500Y-80 thumbnail-6
HST 500J Touch Screen Low-temperature Automatic Impact Testing Machine(RT to -80℃) JBDS-500Y-80 photo-1
HST 500J Touch Screen Low-temperature Automatic Impact Testing Machine(RT to -80℃) JBDS-500Y-80 photo-2
HST 500J Touch Screen Low-temperature Automatic Impact Testing Machine(RT to -80℃) JBDS-500Y-80 photo-3
HST 500J Touch Screen Low-temperature Automatic Impact Testing Machine(RT to -80℃) JBDS-500Y-80 photo-4
HST 500J Touch Screen Low-temperature Automatic Impact Testing Machine(RT to -80℃) JBDS-500Y-80 photo-5
HST 500J Touch Screen Low-temperature Automatic Impact Testing Machine(RT to -80℃) JBDS-500Y-80 photo-6
US$ 9080 - 10080 MOQ: 1 Set
Key Specifications
Get Latest Price
Type:
Testing Machine
Accuracy:
≤± 0.5%
brand name:
HST
Contact Supplier Request Quote Chat Now
Hst Group Co.,ltd.
Gold Verified Supplier
1Yr
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Accuracy ≤± 0.5%
brand name HST
place of origin Shandong, China
Application Universal Testing, Auto Testing, Plastic Testing, Textile Testing, Paper Testing, Strength Testing, Tensile Testing, Compression Testing, Impact Testing
customized support OEM, ODM
power /
Protection Class IP65
Voltage 380 V
warranty 1 Year
Product name Low-temperature Automatic Charpy Impact Testing Machine
Model HST JBDS-500Y-80
Max. impact energy 500J
Impact Energy 250J 500J
Impact speed 5.4 m/s
Thickness of impact knife 16 mm
Round angle of striker R 1-1.5 mm
Standard span 40+0.2mm
Power supply 3-phase 380V± 10%, 50Hz
Temperature control range room temperature~-80°c
HST JBDS-500Y-80 Digital display
Low-temperature Automatic Charpy Impact Testing Machine
For price and model details, please contact Lisa:
Email:lisa@hssdtest.com Whatsapp/Wechat: 008615866783008
Products Description
1.Application :
Full Automatic Impact Testing Machine was widely used in mechanical metallurgy, aerospace engineering, vessel building, academy and institute, and nuclear power engineering fields which has high requirement on temperature testing with high efficiency.

2.Standards:
ISO 148-1 -Metallic materials - CHARPY pendulum impact test.
JIS Z 2242 -Method for CHARPY pendulum impact test of metallic materials.
EN 10045-1 -Metallic materials-CHARPY impact test.
ASTM E23 (CHARPY) -Standard test method for notched bar impact testing of metallicmaterials.
GOST 9454-78 -Impact bending test method at low, room and high temperatures.

3.Specifications

Model
HST JBDS-500Y-80
Energy display mode
with dial gauge and touch screen
Max. impact energy
500J
Impact Energy
250J
500J
Value Of Every Grid
2.5J
5J
Moment Of Pendulum
133.9746N.m
267.9492N.m
Distance between pendulum shaft and impact point
800mm
Impact speed
5.4m/s
Raised angle
150°
Standard span
40+0.2mm
Round angle of the jaw
R1-1.5mm
Round angle of impact edge
R2-2.5,R8±0.05mm
Angle accuracy
0.1°
Standard specimen dimension
10×10(7.5/5)×55mm
Thickness of impact knife
16mm
Dip angle of supporting surface of supports
11°±1°
Impact edge Angle
30°±1°
Impact edge curvature radius
2mm impact edge
2-2.5
8mm impact blade
8±0.05
8mm impact shoulder Angle radius
0.1-1
8mm impact blade width
4 ±0.05
Impact blade width
10-18mm
Impact knife thickness
16mm
Meet the sample size
10×10x55 mm

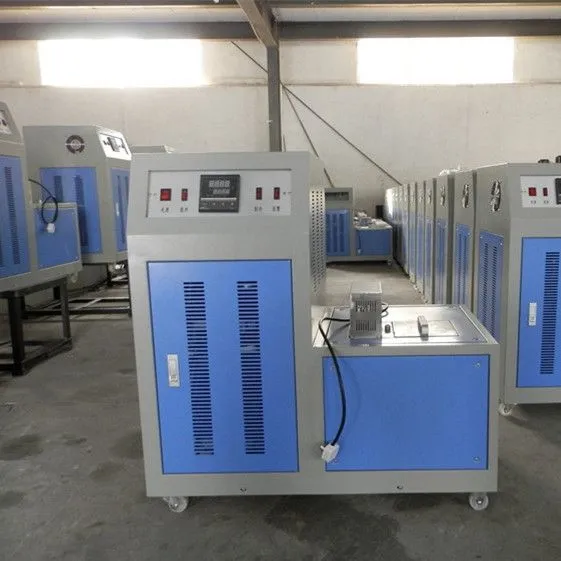

Refrigeration mode
Compressor
Refrigerating medium
Freon
Capacity of sample box
Standard 20
Temperature control range
room tempeature~-80°c
Constant temperature accuracy
fluctuation ±0.5°C grades 1°C
Sample delivery method
pneumatic
Sample delivery positioning time
≤4S
Positioning mode
pneumatic
Positioning accuracy
0.1 mm
Pneumatic pressure
0.3 to 0.7MPa
Angle measurement
photoelectric encoder
Angle accuracy
0.1°
Dial energy resolution
≥0.5J
computer screen display energy resolution
0.01J
Mainframe Overall dimensions
2100×600×1450mm
Low-temperature system
1100x1000x500mm
Electrical cabinet
960×620×830mm
Weight
800Kg
Power supply
3-phase 380V± 10%, 50Hz

Measurement and control part description:
