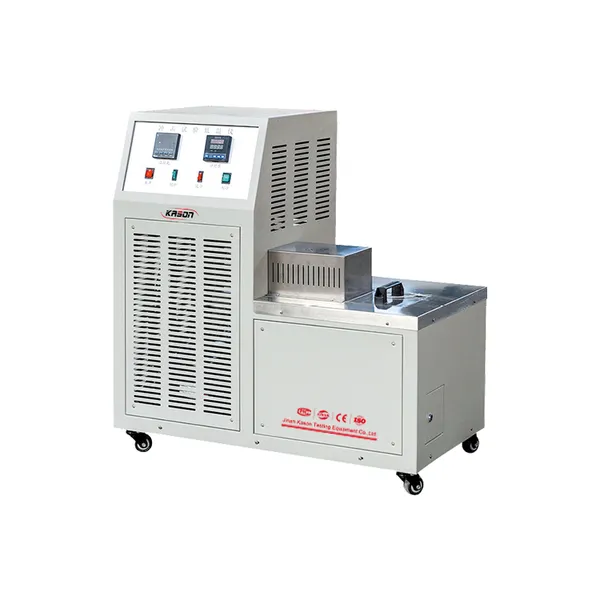

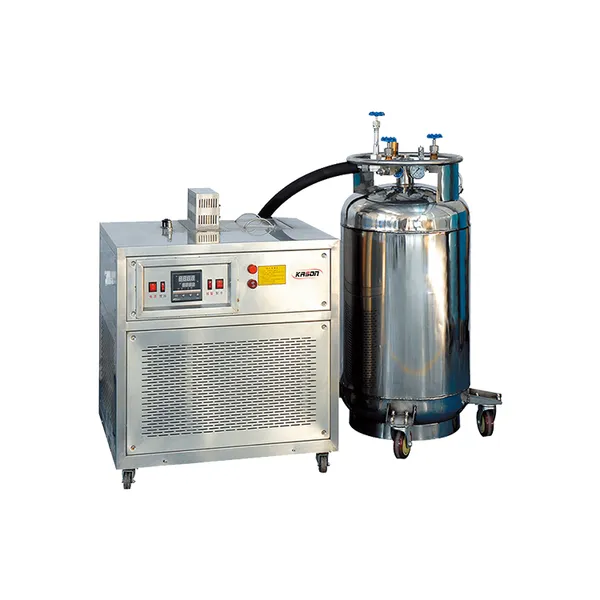

Low Temperature Chamber for Impact Testing
US$ 1995 - 2005
MOQ: 1 Piece
Key Specifications
Get Latest Price
Type:
Testing Machine
Accuracy:
1
brand name:
/
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Touch Screen Display C Type Charpy Pendulum Impact Testing MachineUS$ 7755 - 7855MOQ: 1 Piece -
500J Touch Screen Low-temperature Automatic Impact Testing Machine(RT to -60℃) 250J 500J Digital Display HST JBDS-500Y-60US$ 9300 - 11000MOQ: 1 Set
-
HST 500J Touch Screen Low-temperature Automatic Impact Testing Machine(RT to -80℃) JBDS-500Y-80US$ 9080 - 10080MOQ: 1 Set
-
HST Low-temperature Automatic Charpy Impact Testing Machine Liquid Nitrogen Cooling HSTJBDS-500D-196US$ 10500 - 13000MOQ: 1 Set
-
500J Computer Control Low-temperature Impact Testing Machine(RT to -80℃) 500J Impact Testing Machine HST- JBDW-500Y-80US$ 8500 - 11000MOQ: 1 Set
Accuracy
1
brand name
/
place of origin
SHN
customized support
OEM
power
1KW, Electronic
Protection Class
IP55
Voltage
220 V
warranty
1 Year
Products Description
Application
Model The machine is designed according to Charpy notch Impact Test Method for Metal Material, and adopts compressor cooling technology. It utilizes the heat balance principle and cycle stirring method to realize the constant temperature cooling to impact specimen with the reliable performance. Digital display, automatic control temperature, and it is the ideal equipment for cooling and keeping temperature to impact specimen.
Main component
The machine obtains one compressor, heating unit, electronic control box , cooling tank, cooling medium circulation system, automatic warning device, etc.
Standards
ASTM, E23-02a, En10045, ISO83，GB/T229-2009
Parameters
Temperature range | 30℃~-80 ℃ |
Temperature control accuracy | ±0.2℃ |
Uniformity | 1°C |
Temperature dropping speed | +30°C~0°C about 1.5°C/min 0°C~-20°C about 1.3°C/min -20°C~-40°C about 1.2°C/min -40°C~－60°C about 1.0°C/min －60°C～－80°C about 0.8°C/min |
Maximum dimensions(L×W×H) | 910*510*950mm |
Cooling tank dimensions (L×W×H) | 300*160*120mm |
Effective cooling room (L×W×H) | 140*160*120mm |
Specimen Quantity | 72 (impact specimen size: 10×10×55mm) |
Independent digital display timer | 1 second to 59 minutes and 59 seconds, resolution 1 second |
Mode of refrigeration | compressor refrigeration |
Cooling medium | methanol or anhydrous ethanol about 5L (75% alcohol disinfectant is prohibited) |
Power | 220V±10%, 50HZ, 3.2kW |
Working environment temperature | 5℃～30℃ |
