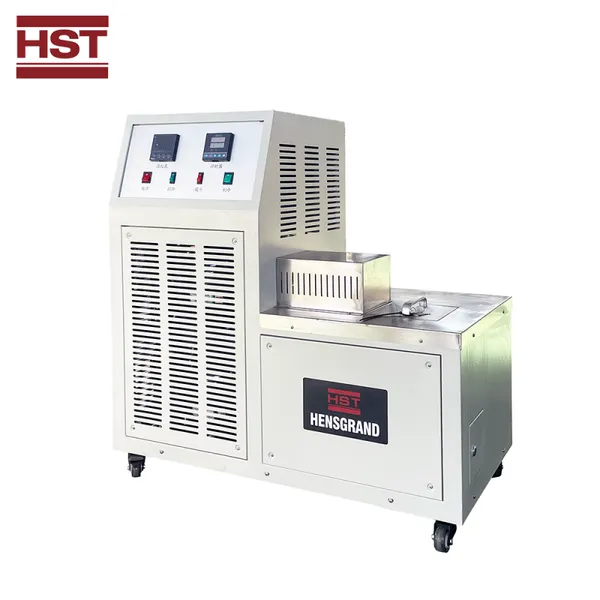

Home > Instruments & Meters > Test Instrument > Test Machine > HST Low Temperature Tester Cooling Chamber for Charpy v Notch Impact Test
US$ 29391.18
1 Set
US$ 27291.81
≥2 Set
Key Specifications
Get Latest Price
Type:
Testing Machine
Warranty:
12 Months
Display:
Digital display
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
HST DWC-196 -196 Degrees Charpy Cooling Chamber Low Temperature Impact Testing ChamberUS$ 27291.81 - 29391.18MOQ: 1 Set -
Low Temperature Chamber for Impact TestingUS$ 1995 - 2005MOQ: 1 Piece
-
Touch Screen Display C Type Charpy Pendulum Impact Testing MachineUS$ 7755 - 7855MOQ: 1 Piece
-
500J Touch Screen Low-temperature Automatic Impact Testing Machine(RT to -60℃) 250J 500J Digital Display HST JBDS-500Y-60US$ 9300 - 11000MOQ: 1 Set
-
HST 500J Touch Screen Low-temperature Automatic Impact Testing Machine(RT to -80℃) JBDS-500Y-80US$ 9080 - 10080MOQ: 1 Set
Warranty
12 Months
Accuracy
1
brand name
HST or OEM
place of origin
Shandong, China
customized support
OEM
power
2kw
Protection Class
IP55
Voltage
380 V
warranty
1year
Product name
Low Temperature Cooling Bath
Application
Cooling the specimen
Power supply
220V~240V, 50HZ
Standard
ASTM, E23-02a, En10045, ISO83,GB/T229-2009
Certificate
CE, ISO
Temperature control accuracy
±0.5°
Effective working space
120x120x80mm
Specimens amount
60
DWC-196 Liquid Nitrogen Cooling Low Temperature Impact Test Chamber For Impact Test
Application

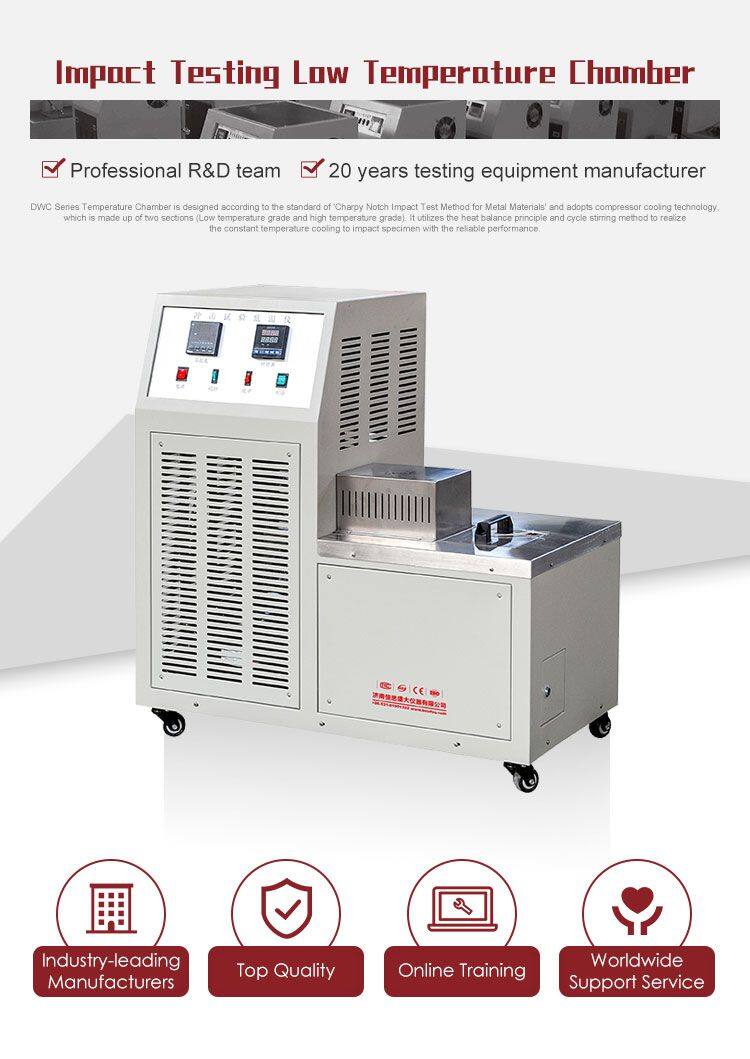

DWC Series Temperature Chamber is designed according to the standard of 'Charpy Notch Impact Test Method for Metal Materials' and adopts compressor cooling technology, which is made up of two sections (Low temperature grade and high temperature grade). It utilizes the heat balance principle and cycle stirring method to realize the constant temperature cooling to impact specimen with the reliable performance.
Product Display
| Model | DWC-40 | DWC-60 | DWC-80 | DWC-100 |
| Temperature range | +30~-40° | +30~-60° | +30~-80° | +30~-100° |
|
Temperature Control Accuracy |
±0.5° | |||
| Effective working space | 120×120×80mm | |||
| Specimen dimension | 10×10×55mm | |||
| Specimen quantity | More than 60 pcs | |||
|
Temperature dropping speed |
+30°C~0°C 1.2°C/min |
+30°C~0°C 2°C/min |
+30°C~0°C 2°C/min |
+30°C~0°C 2°C/min |
|
0°c~-20°C 0.8°C/min |
0°c~-20°C 1.5°C/min |
0°c~-20°C 1.5°C/min |
0°c~-20°C 1.5°C/min |
|
|
-20°C~-40°C 0.5°C/min |
-20°C~-40°C 1.0°C/min |
-20°C~-60°C 1.0°C/min |
-20°C~-40°C 1.0°C/min |
|
|
-20°C~-40°C 0.5°C/min |
-40°C~-60°C 0.7°C/min |
-60°C~-80°C 0.7°C/min |
-60°C~-100°C 0.7°C/min |
|
| Dimensions(mm) | 800×510×480 | |||
| Mode of refrigeration | Compressor refrigeration | |||
| Cooling Medium | Ethanol or other unfrozen liquid | |||
