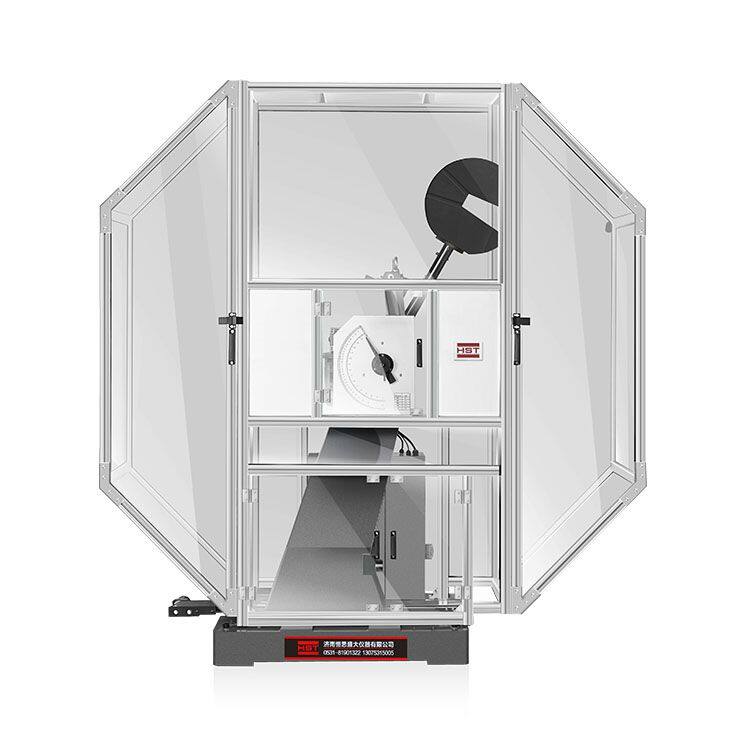

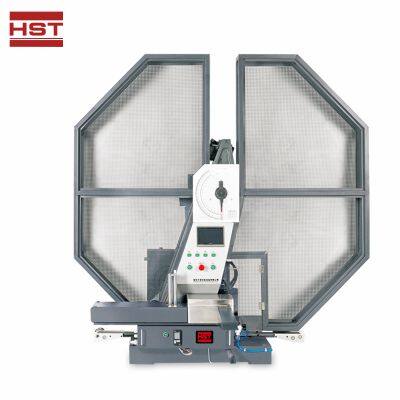

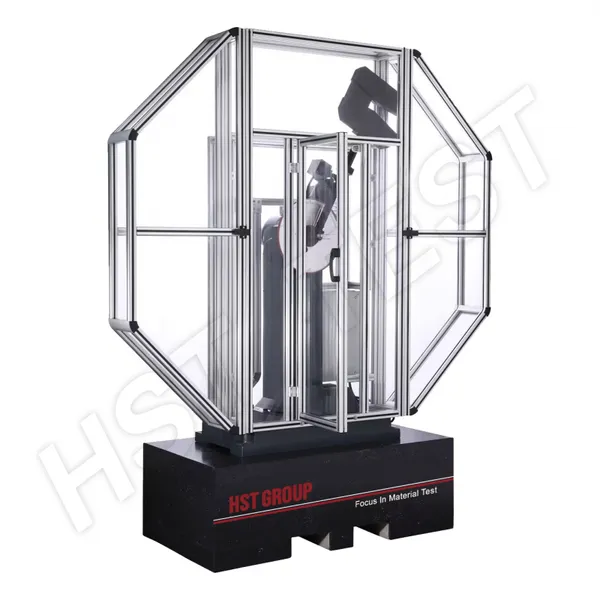

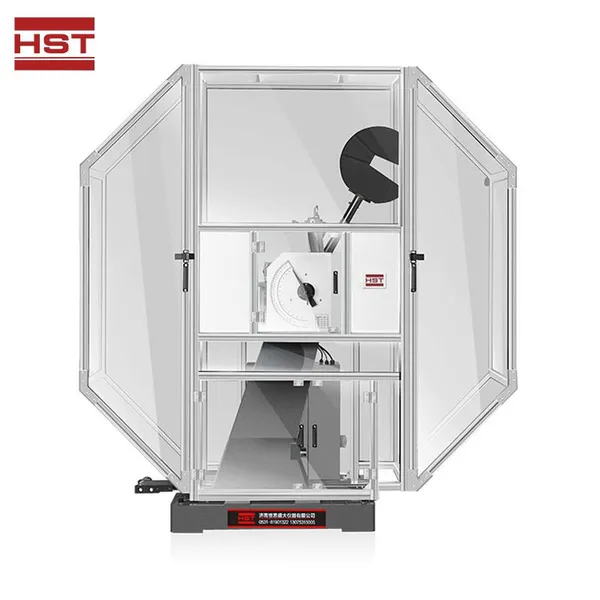

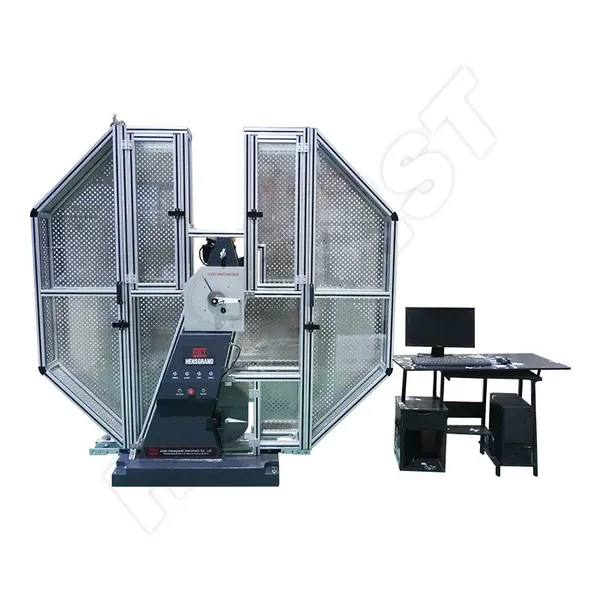

Touch Screen Display C Type Charpy Pendulum Impact Testing Machine
US$ 7755 - 7855
MOQ: 1 Piece
Key Specifications
Get Latest Price
Type:
Testing Machine
Accuracy:
1
brand name:
/
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
500J Touch Screen Low-temperature Automatic Impact Testing Machine(RT to -60℃) 250J 500J Digital Display HST JBDS-500Y-60US$ 9300 - 11000MOQ: 1 Set -
HST 500J Touch Screen Low-temperature Automatic Impact Testing Machine(RT to -80℃) JBDS-500Y-80US$ 9080 - 10080MOQ: 1 Set
-
HST Low-temperature Automatic Charpy Impact Testing Machine Liquid Nitrogen Cooling HSTJBDS-500D-196US$ 10500 - 13000MOQ: 1 Set
-
500J Computer Control Low-temperature Impact Testing Machine(RT to -80℃) 500J Impact Testing Machine HST- JBDW-500Y-80US$ 8500 - 11000MOQ: 1 Set
-
300J Computer Control Low-temperature Impact Testing Machine(RT to -60℃) 300J Impact Testing Machine HST- JBDW-300Y-60US$ 8000 - 10000MOQ: 1 Set
Accuracy
1
brand name
/
place of origin
SHN
customized support
OEM
power
1KW, Electronic
Protection Class
IP55
Voltage
220 V
warranty
1 Year
Products Description
Application:
JBS-C Charpy Impact Testing Machine is mainly used to to measure impact absorbing energy and impact toughness of metal material
Advantages:
1.Main frame and foundation is integration, good stiffness and high stability.
2.Round pendulum makes wind resistance to mini.Impact knife adopts wedge block to compress and install.It is easy to exchange.
3.Suspension pendulum device adopts hydraulic buffer to avoid damage and low noise when hang pendulum.It extends service life and improves safety.
4.This machine adopts reducer to transport. Its structure is simple, easy to install and maintain, long service life and low breakdown rate.
5.It has samples recycling device. The device outputs broke sample from testing machine after impact to avoid tester to recycle broke sample from testing machine and improve efficiency and safety.
6.It has totally closed safety net to avoid broke sample to splash and tester to approach testing machine when processing test and ensure tester and equipment safe.
7.Control system adopts Japan Panasonic PLC and imported high-precision rotary encoder to get timely angle of pendulum. Anti-interference of system is strong.
Standards:
ISO148, EN10045, ASTM E23, GB/T3808-2002 ,GB/T229-2007.
Specifications
Parameters:
MODEL |
JBS-300C |
JBS-450C |
JBS-600C |
JBS-750C |
||||
Max. impact energy(J) |
300 |
450 |
600 |
750 |
||||
Pendulum torque(N·m) |
M=80.3848 |
M=160.7695 |
M=241.1543 |
M=321.5390 |
||||
Raised angle(mm) |
150°±1° |
|||||||
Distance from the axis of support to the center of percussion(mm) |
750 |
|||||||
Impact speed(m/s) |
5.24 |
|||||||
Standard span(mm) |
40 |
|||||||
Round angle of the jaw |
R (1.0~1.5)mm (1mm is special ordered.) |
|||||||
Angle of Taper of Supports |
11°±1° |
|||||||
Angle of Striking Tip |
30°±1° |
|||||||
Thickness of Striking(mm) |
16 |
|||||||
Round corner of support jaw |
R (1.0~1.5)mm (1mm is special ordered.) |
|||||||
Blade curvature radius |
R (2.0~2.5)mm (8mm is special ordered.) |
|||||||
Standard specimen dimension(mm) |
55x10x10 , 55x10x7.5 , 55x10x5 |
|||||||
Power supply |
3phs, 380V/220V±10%, VAC50Hz or specified |
|||||||
Dimensions (mm) |
||||||||
Gross weight(KG) |
||||||||
