About the 8440-2052

With control functions such as load sharing, breaker control logic, AMF (auto mains failure) and stand-by operation, and single or multiple unit operations for up to 32 genset units, part 8440-2052 is optimized for use in a variety of applications. This genset control unit is part of the easYgen-3000 series by Woodward.

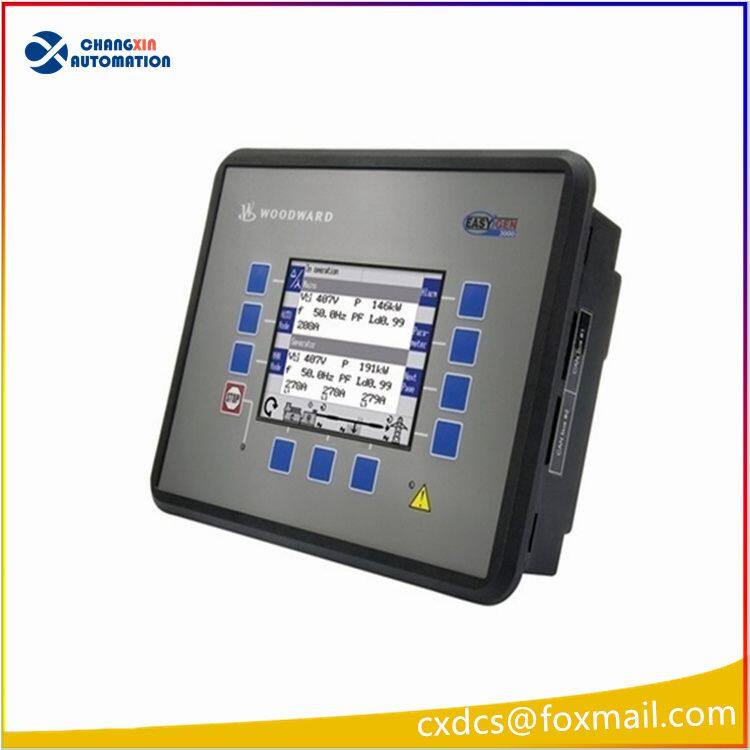

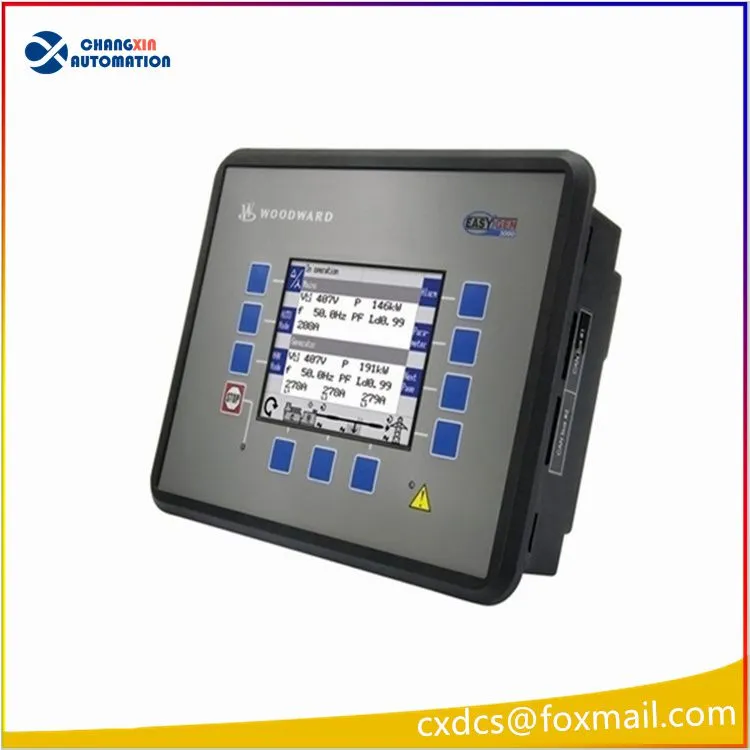

Part 8440-2052 is a 3200-P2 model. As a 3200 model, this control has a built-in operator interface on the front panel of the unit’s plastic housing. Package 2 (P2) models come with an additional control feature of three PID controllers, which are freely configurable. It has 5A CT inputs and is designed for front panel mounting. Part 8440-2052 has a 12/24 VDC (8 to 40 VDC) power supply.

This easYgen genset controller has both analog and discrete I/Os

Up to 12 configurable discrete I/Os
32 external discrete I/Os (each) via CANopen
3 configurable analog inputs
16 external analog inputs via CANopen
4 external analog outputs via CANopen

easYgen model 8440-2052 measures speed input using magnetic / switching pickup, with a 50/60 Hz (40 to 85 Hz) measuring frequency. Speed, frequency, voltage, power factor, excitation, and many more setpoints may be configured for maximum generator, engine, and mains protection. There are 12 discrete alarm outputs, 10 of which are configurable.

Configuration may be done via PC (using ToolKit software) or directly through the control unit itself using the built-in HMI. This operator interface has a keypad, and a color LCD, and access may be managed with the multi-level password protection capabilities of the 8440-2052 model. There are fourteen languages available with the software. Additional product specs may be found in easYgen-3000 manual 37258P.

FAQ & Contact:

🌟 About Us:

• Company Type: We are a trading company.

• Lead Time: Typically 1 to 3 days for in-stock items. Negotiable for out-of-stock goods.

• Samples: Availability and charges are subject to the specific products and order quantity.

• Payment Terms: 100% T/T before shipping. Negotiable for larger quantities.

Shipping Details:

1. 📦 For in-stock items, we ship within 3 days upon receiving payment.

2. ✈️ Worldwide shipping via DHL, UPS, FedEx, TNT, and EMS.

3. 📬 Please inform us if you have a preferred shipping agent.

4. 📦 Parts are packed in sturdy boxes. Notify us for any special packaging needs.

5. 🕓 Shipping occurs before 4:30 PM, and we'll provide a tracking number post-shipment. Delivery takes approximately 7 to 15 days.

6. 📧 Kindly email us upon receiving the package.

7. 📝 When inquiring about shipping costs, include necessary details:

◦ 1). Zip code

◦ 2). Company name (if applicable) and your name

◦ 3). Phone number and extension

Company Services:

1. 🚀 Swift delivery (1-3 days for in-stock items)

2. 🌍 Extensive experience (Over 10 years in sales)

3. 📦 Large inventory (Various brands and global warehouses)

4. 🛡️ Quality assurance (Clear product conditions with a 1-year warranty)

Connect With Us

📞 Phone: +86 13328779317

📧 Email: cxdcs@foxmail.com

💬 WhatsApp: +86 13328779317

🕒 Business Hours: Online Support 24/7

📍 Address: Room B39, 2nd Floor, Dongfang Yayuan, Baomin 2nd Road, Chentian Community, Xixiang Sub-district, Bao'an District, Shenzhen City

🌟 For all your industrial needs, count on our expertise and dedication! Contact us anytime for seamless and reliable service. 🌟

Product Tags: Woodward , 8440-2052 , easYgen Genset Controller

Analog Inputs (non isolated)	freely scalable
Back Panel Dimensions	250W X 227H X 50mm D
Contact Material	AgCdO
Front Panel Dimensions	282W X 216H X 96D mm
Intrinsic Consumption	Max. 17 W
Measurable Alternator Windings	3p-3w, 3p-4w, 1p-2w, 1p-3w
Measuring Frequency	50/60Hz (40 - 85 Hz)
