HST WAW-1000F 100T 1000KN Electro-hydraulic Single Space Servo Universal Testing Machine
US$ 34200 - 38000
MOQ: 1 Set
Key Specifications
Get Latest Price
Type:
Testing Machine
Accuracy Class:
High Accuracy
Accuracy:
≤± 0.5%
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
WAW-2000KN Hydraulic Universal Testing Machine Software With Tensile/compression/electro Hydraulic Tensile Testing MachineUS$ 53200 - 55000MOQ: 1 Set -
HST Compression Hydraulic Universal Tensile Testing Machine Laboratory Metal Wire Material Bending Shear Tearing Strength TesterUS$ 87473.75 - 90972.70MOQ: 1 Set
-
HST 1000KN Extensometer Hydraulic Servo Automatic Loading Metal Material Tensile Strength Testing MachineUS$ 89573.12 - 90972.70MOQ: 1 Set
-
WEW-1000E 100ton Computer Display Hydraulic Universal Tensile Strength TesterUS$ 62981.10MOQ: 1 Set
-
HST WAW-2000F 200T 2000KN Electro-hydraulic Single Space Servo Universal Testing MachineUS$ 56500 - 62500MOQ: 1 Set
Accuracy Class
High Accuracy
Accuracy
≤± 0.5%
brand name
HST
place of origin
Shandong, China
Application
Universal Testing, Auto Testing, Plastic Testing, Textile Testing, Paper Testing, Strength Testing, Tensile Testing, Compression Testing, Impact Testing
customized support
OEM, ODM
power
5.5KW
Protection Class
IP65
Voltage
380 V
warranty
1 Year
Product name
Electro-Hydraulic Single Space Servo Universal Testing Machine
Model
HST WAW-1000F
Load Capacity
1000kN
Accuracy class
Class 0.5, ISO-7500
Testing load Accuracy
≤±0.5%
Test force range
1%-100%F.S
Deformation resolution
1/500,000 of FS
Displacement resolution
0.01mm
Power supply
5.5KW 3 phase, AC380V±10%, 50Hz

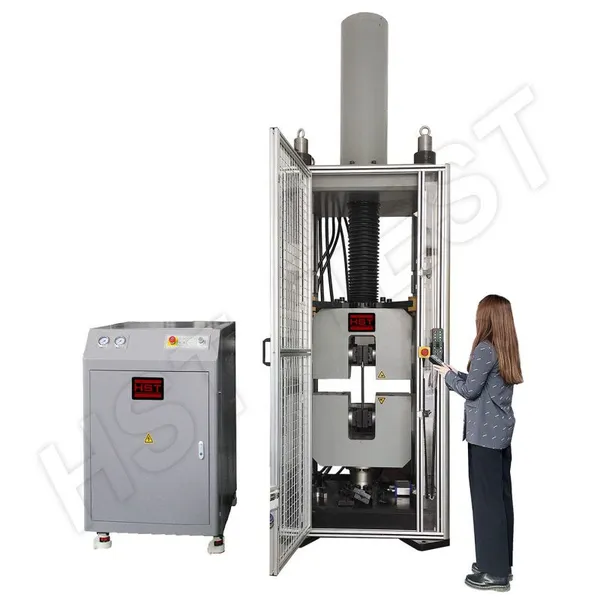

HST WAW-1000F Electro-hydraulic Single Space Servo Universal Testing Machine (Hydraulic automatic Wedge Grip)
If you want to know more models, price please contact Lisa:
Email: lisa@hssdtest.com Whatsapp/Wechat: 008615866783008
Products Description
Application:
HST-WAW1000F servo-hydraulic universal testing machine is designed with up-mounted actuator structure. Bidirectional differential cylinder provides bidirectional control of tension and compression in one single space.
Clearance-free structure and actuator up and down to adjust the test space offers easy operation and high efficiency. This machine is mainly used for tensile test of metallic materials. It provides closed loop control of constant force, constant displacement and constant extension, smoothly switching among them.
Test results can be automatically calculated and be able to printed and exported.
Safety Divice
* Strokeprotection:Machinery, computer double protection, prevent over preset
* Force protection: system setting
* Emergency stop device: handing emergencies
Applied Standards:
1. Load meets or exceeds the following standards: ASTM E4, ISO7500-1, EN10002-2, BS1610, DIN 51221.
2. Strainmeasurement meets or exceeds the following standard: ASTM E83, ISO 9513, BS3846, EN10002-4
3. Also conform to some other standards:ASTM E8, ASTM A370, ASTM 615, ISO 6892-1, ISO 146303, ISO 156301, BS 4449.
HST-WAW1000F servo-hydraulic universal testing machine is designed with up-mounted actuator structure. Bidirectional differential cylinder provides bidirectional control of tension and compression in one single space.
Clearance-free structure and actuator up and down to adjust the test space offers easy operation and high efficiency. This machine is mainly used for tensile test of metallic materials. It provides closed loop control of constant force, constant displacement and constant extension, smoothly switching among them.
Test results can be automatically calculated and be able to printed and exported.
Safety Divice
* Strokeprotection:Machinery, computer double protection, prevent over preset
* Force protection: system setting
* Emergency stop device: handing emergencies
Applied Standards:
1. Load meets or exceeds the following standards: ASTM E4, ISO7500-1, EN10002-2, BS1610, DIN 51221.
2. Strainmeasurement meets or exceeds the following standard: ASTM E83, ISO 9513, BS3846, EN10002-4
3. Also conform to some other standards:ASTM E8, ASTM A370, ASTM 615, ISO 6892-1, ISO 146303, ISO 156301, BS 4449.
Specifications:
MODEL |
HST WAW-1000F |
|
Max. Load capacity |
1000kN |
|
Structure |
Single space, four column |
|
Accuracy class |
Class 0.5, ISO-7500 |
|
Testing load Accuracy |
≤±0.5% |
|
Test force range |
1%-100%F.S |
|
Test force resolution |
1/500,000 of FS |
|
Deformation measuring range |
1%～100%FS |
|
Deformation accuracy |
±0.5% |
|
Deformation resolution |
1/500,000 of FS |
|
Displacement resolution |
0.01mm |
|
Maximum speed of piston rise |
200mm/min |
|
Test force loading rate range |
0.02%～2%FS/s |
|
Tensile space |
750mm |
|
Max. Compression space |
600mm |
|
Space between columns |
680mm |
|
Piston stroke |
700mm |
|
Clamping method |
Hydraulic Automatic Clamp With Wedge grip |
|
Round insert |
Ф13-Ф26mm, Ф26-Ф45 |
|
Flat insert |
0-20mm, 20-40mm |
|
Compression plant |
Ф160mm |
|
Dimension of load frame |
900×760×3355mm |
|
Dimension of control console |
810×1153×1190mm |
|
Weight |
Approx. 5500KG |
|
Power |
5.5KW ,3 phase, 380VAC±10％, 50Hz |
|
Operating Temperature |
0 to +38° C (+32 to +100° F) |
|
Humidity Range |
10% to 90% non-condensing |
|
NOTE: 1. Extra wide and/or extra height frames are available. 2. Power supply system is completely customizable. 3. Specifications are subject to change without notice. |
||
Overall Dimensions:(Unit mm)
Load frame features:
1 Single-space structure, Single zone design ensures all types of tests finish in one space. Compact and reasonable design is ergonomic and effectively reduces labor intensify.
2 Top-mounted hydraulic double direction actuator is used to apply a tensile or compressive load to the test specimen; this design makes it easy to provide different stroke lengths and extended test openings to suit unique applications without costly customization.
3 The main frame is full rigid and gap-free structure. When the tensile specimen is broken, the testing machine has no impact on the ground. Meanwhile, the host has the advantages of high resistance to pull (pressure).
4 4-column construction providing superior axialand lateral stiffness, chrome plated columns for easy cleaning and longest life.
5 Large test space Double acting crossbeam quickly accommodates specimens of varying lengths. In the case of additional length of columns, the maximum testing space is adjustable to meet extra length specimens.
6 Optional extra height load frames are available to accommodate pretested concrete strand.
