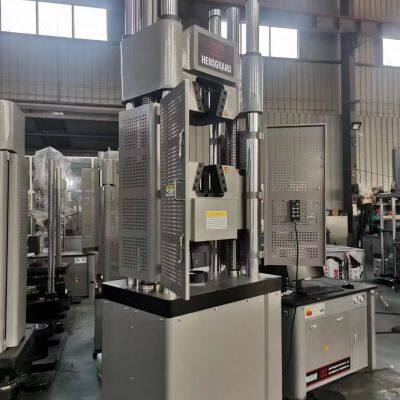

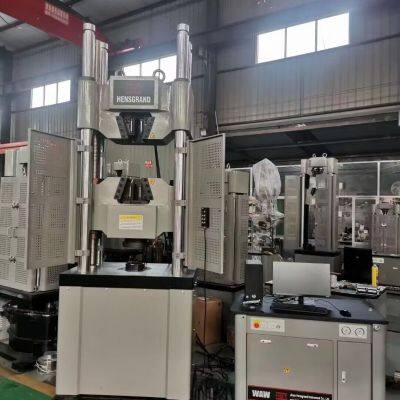

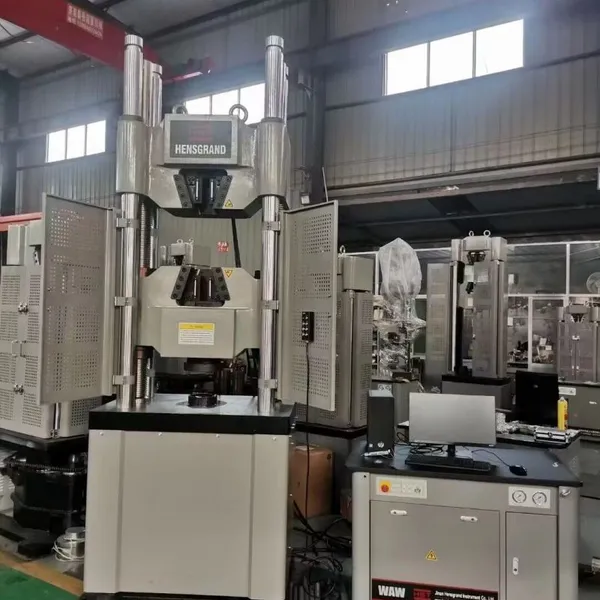

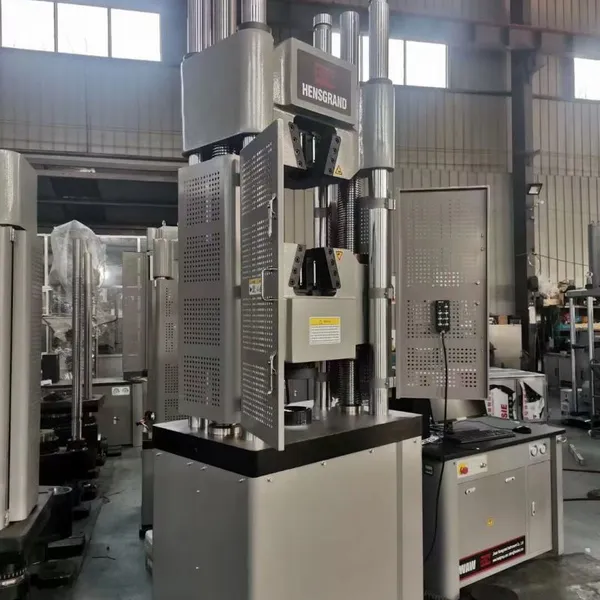

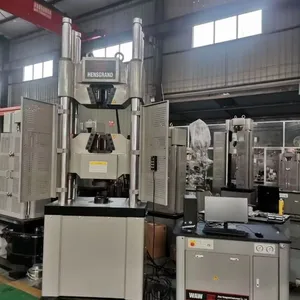

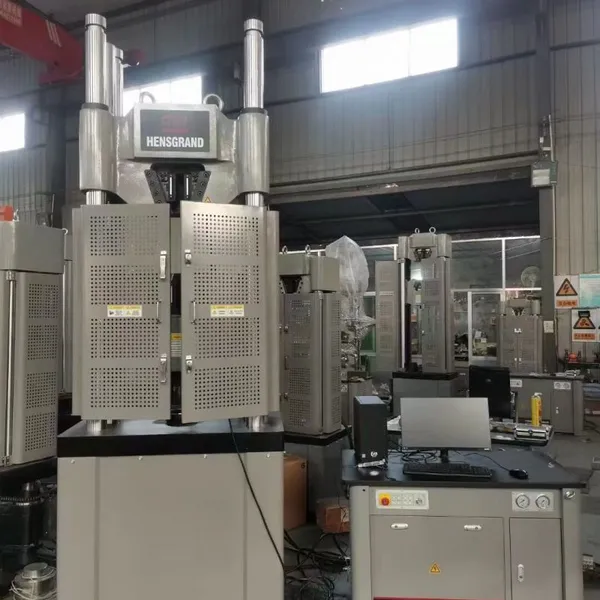

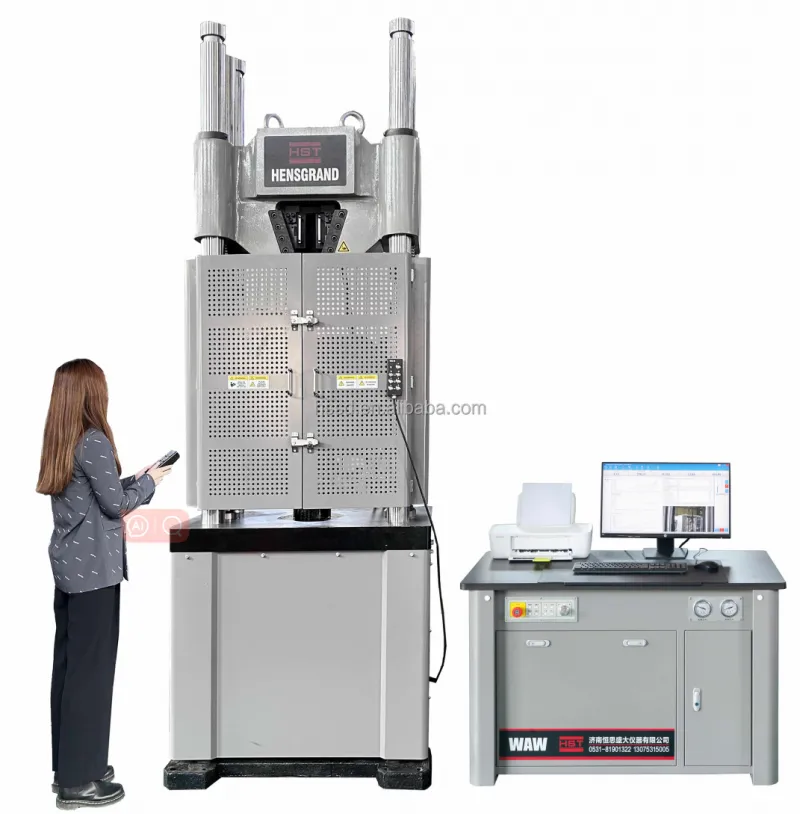

Wew-2000E 2000kN 200ton Computer Display Hydraulic Universal Testing Machine
1. Application
2000kN Tensile Tester is suitable for tension, compression, bending, shearing,
peeling, tearing and other tests by adding different test fixture for metal and non-metal materials. It is widely used in inspection department, engineering area, laboratories, universities and institutes for material properties research and quality control.
2. Standards
ISO75001, ASTM A370, ASTM E4, ASTM E8 and BSEN standards
3. Main specifications
Contact: Alice Skype: hssdtest whatsapp /wechat/mobile:+8617853101076 /15098778967
|
Product Model |
HST WEW-2000D |
|
Number of columns |
|
|
Load Capacity |
2000kN |
|
Load Capacity |
200000kgf |
|
Calibration standard |
ISO 7500 |
|
Calibration standard |
Class 1 |
|
Testing load Accuracy |
±1% |
|
Load Measuring Range |
2%~100%FS |
|
Load Resolution |
1/500,000 of FS |
|
Manual displacement control speed rang |
0~85mm/min |
|
Displacement measurement resolution |
0.01mm |
|
Displacement measurement accuracy |
Better than ≤±0.5% |
|
Deformation measuring range |
1%~100%FS |
|
Deformation resolution |
1/500000FS of the max deformation |
|
Deformation accuracy |
≤±0.5% of Indicating Value |
|
Overload Protection |
≥5% of Full Range |
|
Main frame parameters |
|
|
Max. Tensile Testing Space |
1250mm |
|
Max. Compression Testing Space |
850mm |
|
Column center space |
800mm |
|
Column diameter |
Φ100mm |
|
Max. Piston stroke |
250mm |
|
Piston diameter |
Φ320mm |
|
Loading rate range |
0.02%-2%FS |
|
Max speed of piston moving without load |
85 mm/min |
|
Cross beam adjustment for max speed |
About 220 mm/min |
|
Cross beam moving motor power |
0.75KW |
