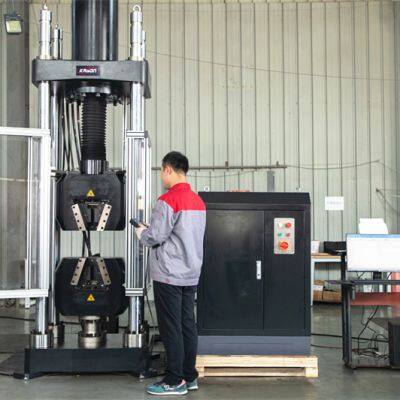

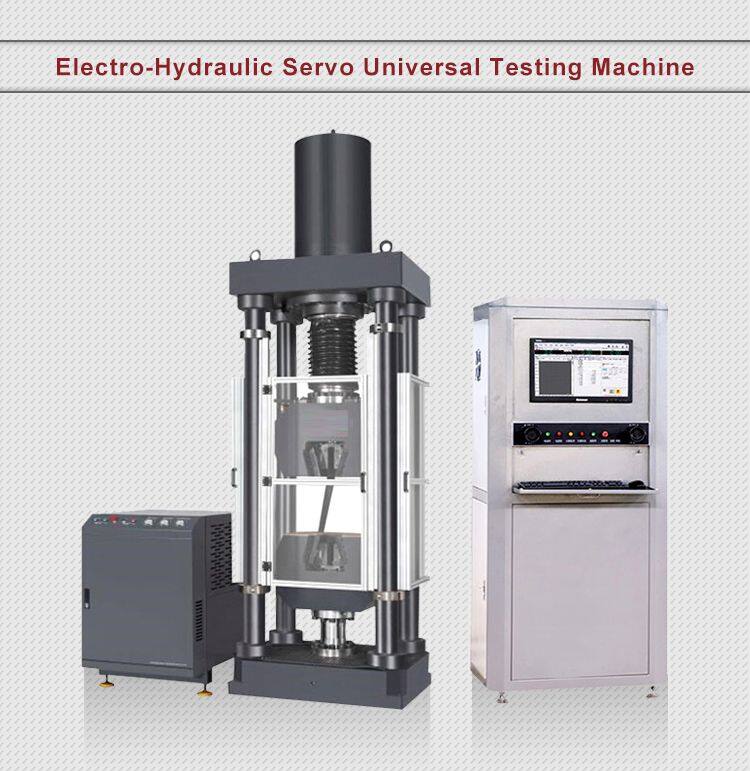

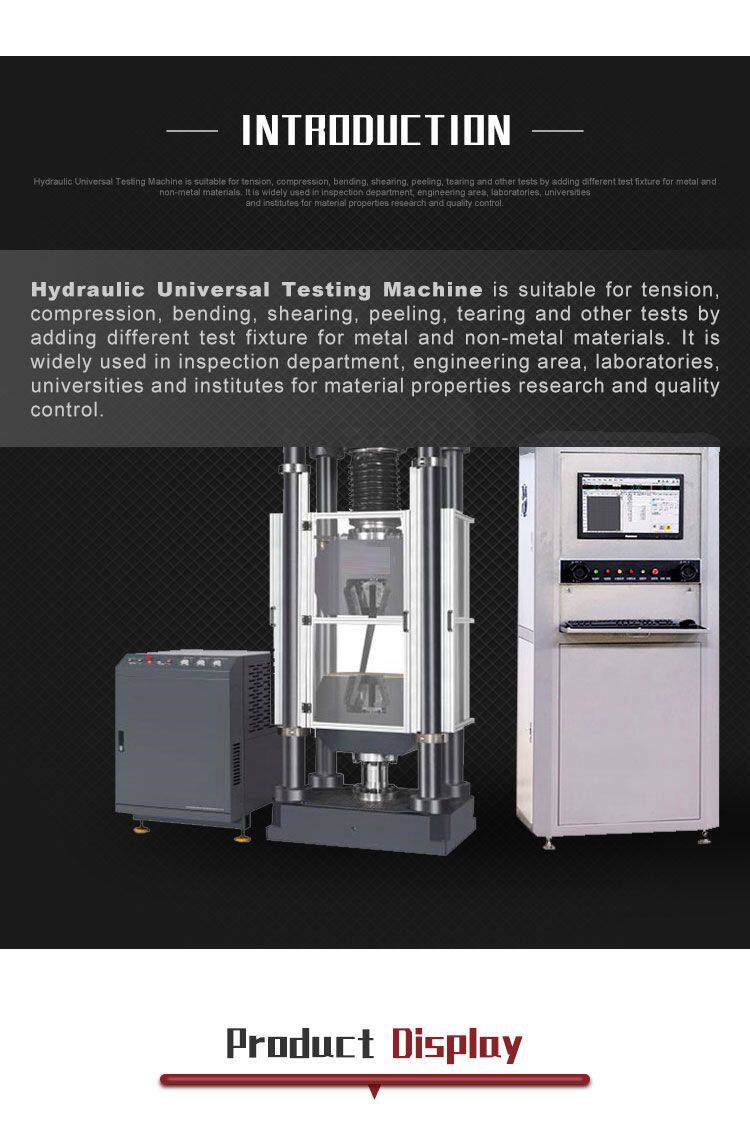

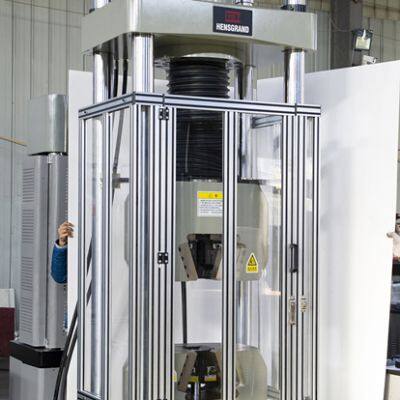

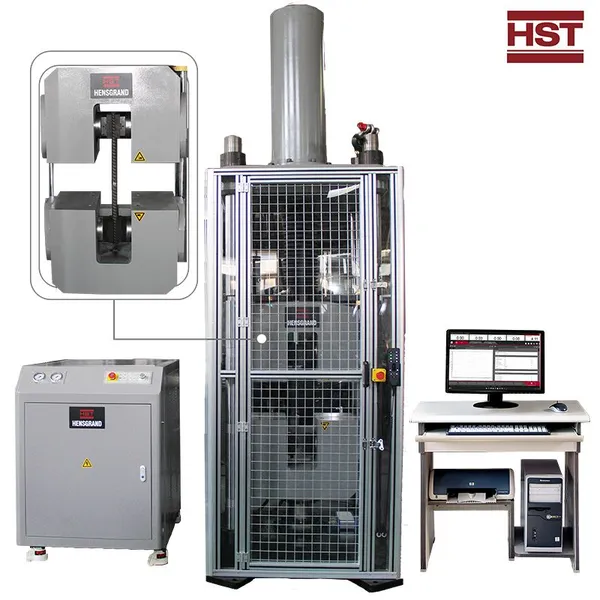

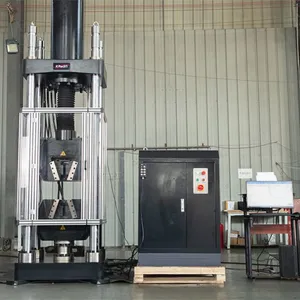

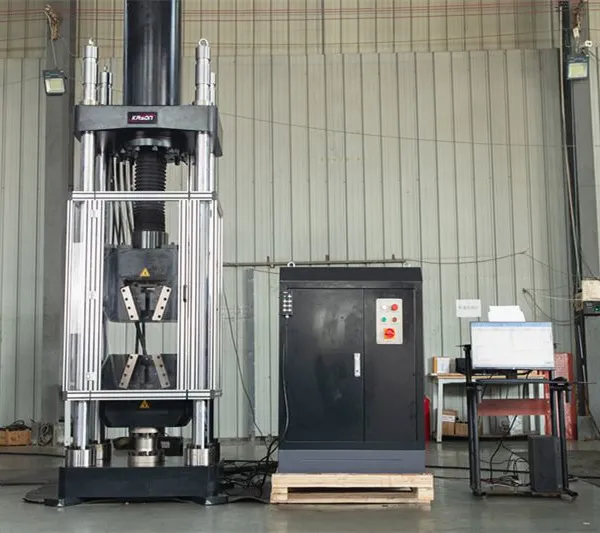

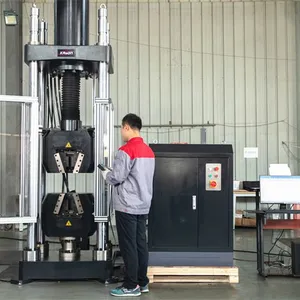

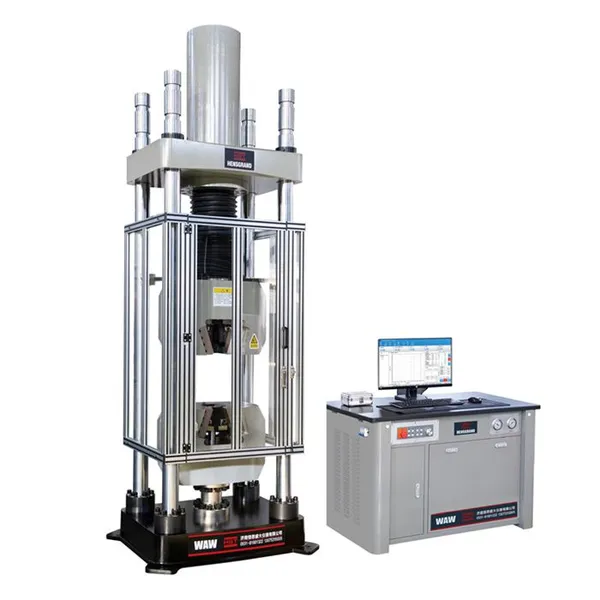

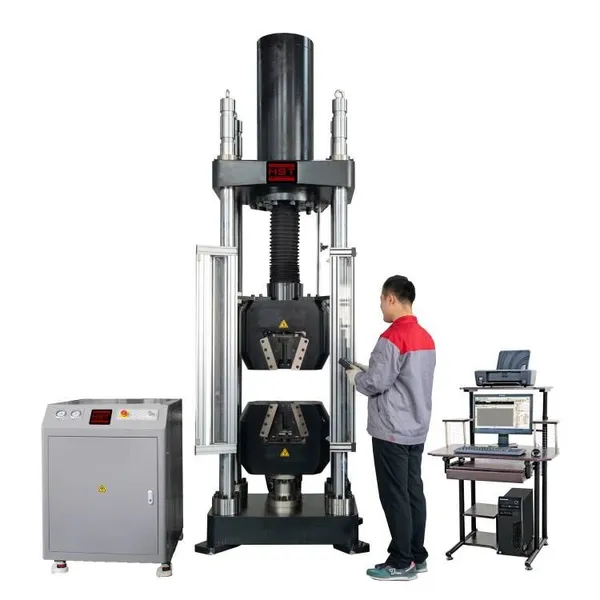

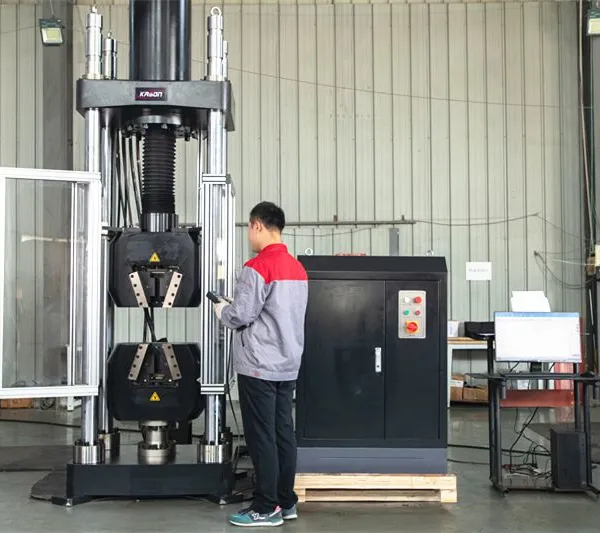

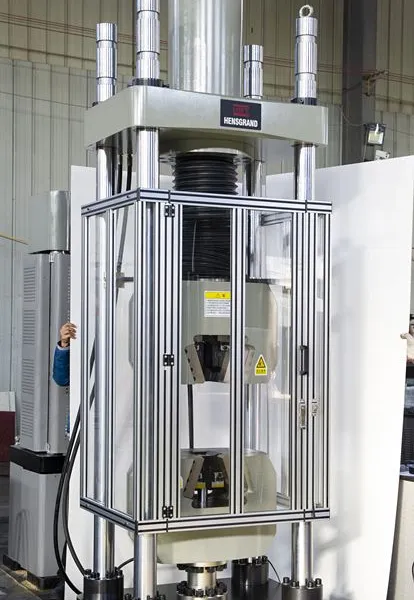

WAW-1000F deformed steel bar single tensile test machine with Hydraulic wedge grip
1. Application:
This High Frequency Material Tensile Testing Machine is applied in the steel industry, quality inspection stations and other high-frequency, high-fatigue fast metal tensile test.
2.Technical parameter:
|
Model |
WAW-300F |
WAW-600F |
WAW-1000F |
WAW-2000F |
WAW-3000F |
|
Max. Load capacity(kN) |
300 |
600 |
1000 |
2000 |
3000 |
|
Structure |
Four column |
||||
|
Accuracy of testing load(%) |
±0.5 |
||||
|
Accuracy of deformation(%) |
±0.5 |
||||
|
Test Range |
1%-100% |
||||
|
Deformation measurement range |
1%-100% |
||||
|
Posion rising speed(mm/min) |
0-250 |
0-250 |
0-150 |
0-100 |
0-100
|
|
Piston descending speed(mm/min) |
0-250 |
0-250 |
0-180 |
0-100 |
0-100 |
|
Test Force Loading Rate Range |
0.02%-2%FS/s |
||||
|
Host structure |
2 |
4 |
4 |
4 |
4 |
|
Max. Tensile space(mm) |
400 |
580 |
680 |
800 |
800 |
|
Max. Compression space(mm) |
300 |
460 |
520 |
520 |
520 |
|
Actuator stroke(mm) |
370 |
580 |
680 |
800 |
800 |
|
Max. Loading speed(mm/min) |
100 |
100 |
75 |
50 |
100 |
|
Distance between columns(mm) |
500 |
490x330 |
660x400 |
800x400 |
900x540 |
|
Clamping method |
Hydraulic Automatic Clamp With Wedge |
||||
|
Round insert(mm) |
10-32 |
10-40 |
15-60 |
15-70 |
15-70 |
|
Flat insert(mm) |
2-25 |
2-30 |
2-40 |
10-70 |
10-70 |
|
Compression platens(mm) |
120 |
150 |
200 |
240 |
240 |
|
Dimensions of load frame(mm) |
880x630x2980 |
880x630x2980 |
980x720x3530 |
1220x880x4180 |
|
|
Weight(kg) |
1500 |
3000 |
5000 |
8500 |
11500 |
