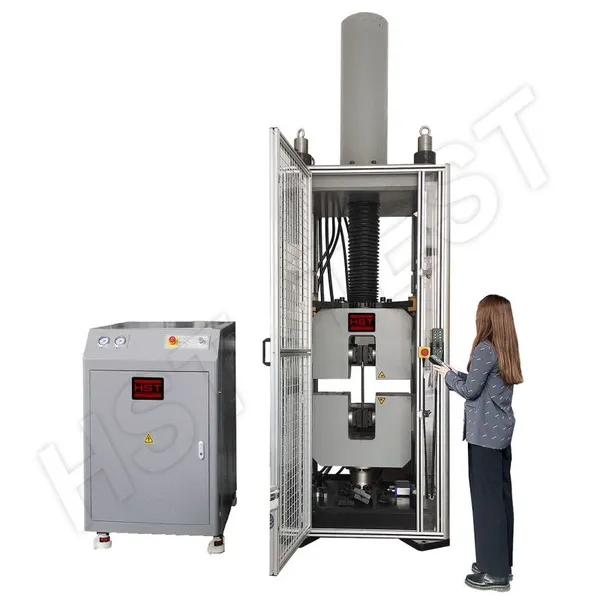

HST LAW -2000D 2000KN 2000KN Computer Servo Steel Strand Tensile Testing Machine
US$ 31680 - 35200
MOQ: 1 Set
Key Specifications
Get Latest Price
Type:
Testing Machine
Weight:
5600kg
Accuracy:
≤± 0.5%
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
HST LAW -600E 600KN Servo Steel Strand Universal Testing Machine Computer Servo Control Strength TesterUS$ 14500 - 16800MOQ: 1 Set -
Hydraulic Tension Test 200 Tons Price 1000kn Tensile Universal Testing Compressive Bending Strength MachineUS$ 35689.29 - 36389.08MOQ: 1 Set
-
HST 1000KN Hydraulic Steel Rebar Metal Tensile Strength Tester Universal Building Material Testing MachineUS$ 89573.12 - 90972.70MOQ: 1 Set
-
Wew-2000E 2000kN 200ton Computer Display Steel Rebar Hydraulic Universal Tensile Testing EquipmentUS$ 25000 - 30000MOQ: 1 Set
-
HST WAW-1000F 100T 1000KN Electro-hydraulic Single Space Servo Universal Testing MachineUS$ 34200 - 38000MOQ: 1 Set
Accuracy
≤± 0.5%
brand name
HST
place of origin
Shandong, China
Application
Universal Testing, Auto Testing, Plastic Testing, Textile Testing, Paper Testing, Strength Testing, Tensile Testing, Compression Testing, Impact Testing, Tensile, comprssion, bending test
customized support
OEM, ODM
power
2.75-5KW
Protection Class
IP65
Voltage
380 V
warranty
1 Year
Logo/graphic design
Digital Printing
Product name
Computer Servo Steel strand tensile testing machine
Product Model
HST LAW-2000D
Load Capacity
2000kN
Testing load Accuracy
±0.5%
Testing Speeds
0~85mm/min
Max. Tensile Testing Space
1250MM
Max. Compression Testing Space
850MM
Power supply
5kW, 3 phase, AC380V±10%, 50Hz
HST LAW-600E 600kN Computer Control
Servo Steel Wire Strand Tensile Testing Machine (Class 0.5)
If you want to know more models, price please contact Lisa:
Email: lisa@hssdtest.com Whatsapp/Wechat: 008615866783008
Products Description
Application:
2. Fasteners (tensile, proof, single and double shear) ;
3. Construction materials (reinforcement bar, wire, mesh, folding, compression of concrete and components).,etc.
WAW Series Computer-Controlled Servo-hydraulic Universal Testing Machine is suitable to test various metallic & non-metallic materials for tension, compression, bending and shearing testing.
Applied Standards:
1. Metals-(wire, rod, tube, strip, plate, strip) ;
2. Fasteners (tensile, proof, single and double shear) ;
3. Construction materials (reinforcement bar, wire, mesh, folding, compression of concrete and components).,etc.
Load meets or exceeds the following standards: ASTM E4, ISO7500-1, EN 10002-2, BS1610, DIN 51221.
Strain measurement meets or exceeds the following standards: ASTM E83, ISO 9513, BS 3846 and EN 10002-4.
Strain measurement meets or exceeds the following standards: ASTM E83, ISO 9513, BS 3846 and EN 10002-4.
Specifications:
Product Model |
HST LAW-2000D |
|
Number of columns |
6 (4 columns and 2 screws) |
|
Load Capacity |
2000kN |
|
Load Capacity |
200000kgf |
|
Calibration standard |
ISO 7500 |
|
Calibration standard |
Class 1 |
|
Testing load Accuracy |
±1% |
|
Load Measuring Range |
1%~100%FS |
|
Load Resolution |
1/500,000 of FS |
|
Accuracy of Stress Rate Control |
±0.5% |
|
Displacement resolution |
0.0025mm |
|
Displacement accuracy |
≤±0.5% of Indicating Value |
|
Deformation measuring range |
1%~100%FS |
|
Deformation resolution |
1/±500000FS of the max deformation |
|
Deformation accuracy |
≤±0.5% of Indicating Value |
|
Overload Protection |
≥5% of Full Range |
|
Main frame parameters |
||
Max. Tensile Testing Space |
1250mm |
|
Max. Compression Testing Space |
850mm |
|
Distance between two columns |
800mm |
|
Column diameter |
Φ100mm |
|
Max. Piston stroke |
250mm |
|
Piston diameter |
Φ320mm |
|
Testing Speeds |
0~85mm/min |
|
Cross beam adjustment for max speed |
About 220 mm/min |
|
Cross beam moving motor power |
0.4KW |
|
Controls parameter |
||
Control mode |
Force closed loop control, deformation closed loop control, displacement closed loop control |
|
Force control controls the speed range |
0.001%~5%FS/s |
|
Force control speed control accuracy |
When 0.001% ~ 1% FS/s is better than ≤± 0.5%;
When 1% ~ 5% FS/s better than ≤± 0.2%
|
|
Force control hold accuracy |
±0.002%F.S |
|
Deformation control controls speed range |
0.001%~5%FS/s |
|
Deformation control accuracy accuracy |
When 0.001% ~ 1% FS/s is better than ≤± 0.5%;
When 1% ~ 5% FS/s better than ≤± 0.2%；
|
|
Deformation control hold accuracy |
≤±0.002%F.S |
|
Displacement control speed range |
0.1~85mm/min |
|
Displacement control speed accuracy |
≤±0.2% |
|
Displacement control hold accuracy |
≤±0.02mm |
|
Hydraulic servo oil source parameters |
||
Max. pressure |
25MPa |
|
Max. oil pump flow |
7 L/min |
|
Oil filter accuracy |
10um |
|
Main oil pump motor power |
4KW |
|
Oil tank capacity |
110L |
|
Machine parameter |
||
Load frame dimension |
1100x850x3060mm |
|
Oil power dimension |
1200x680x750mm |
|
Total weight |
5600kg |
|
Power supply |
5kW, 3 phase, AC380V±10%, 50Hz |
|
Operating Temperature |
0 to +38° C (+32 to +100° F) |
|
Humidity Range |
10% to 90% non-condensing |
|
NOTE: 1. Extra wide and/or extra height frames are available. 2. Power supply system is completely customizable. 3. Specifications are subject to change without notice. |
||
Other tensile grip (optional)
Test area for compression /flexural / bending/shear (optional)
Company Profile
Recommend Products
50N-5KN Single Column Universal Testing Machine |
Electronic Universal Testing Machine with 10kN Pneumatic Grips |
Electronic Universal Testing Machine with Hydraulic grips |
Electronic Universal Testing Machine with Temperature Chamber |
50kN -1000kN Hydraulic Dynamic Static Fatigue Testing Machine |
100kN -2000kN Servo Hydraulic Universal Testing Machine |
Customer Photos
Exhibition
Certifications
FAQ:
Are your company a trading one or a factory ?
Factory + trade (integration),20 years focusing on test instruments field,15 years exporting experience.
How to choose the most suitable products?
Our professional team will give you the best suggestion as long as you tell us what kind of test you need to do and the required specification.
How to operate the machine ?
We will deliver English manual and video with the machine to you. If you still need our help, please contact us.
Does the machine can be customized according to my requirements ?
Sure, we have a strong technical team and have rich experience. Our goal is to make you satisfied.
What's the delivery term?
At most of time, we have stock in the factory. If there is no stock, normally, the delivery time is 3-10 working days after deposit receipt. If you are in urgent need, we can consider making special arrangement for you.
How about your warranty?
Generally, our warranty is one year. Within the warranty period, we can offer technique support and part parts change, necessarily, our engineers may go to your place for better service.
Can you arrange the shipment for me ?
We can arrange the shipment for our clients by sea or by air. Trading terms FOB, CIF, EXW are available.
