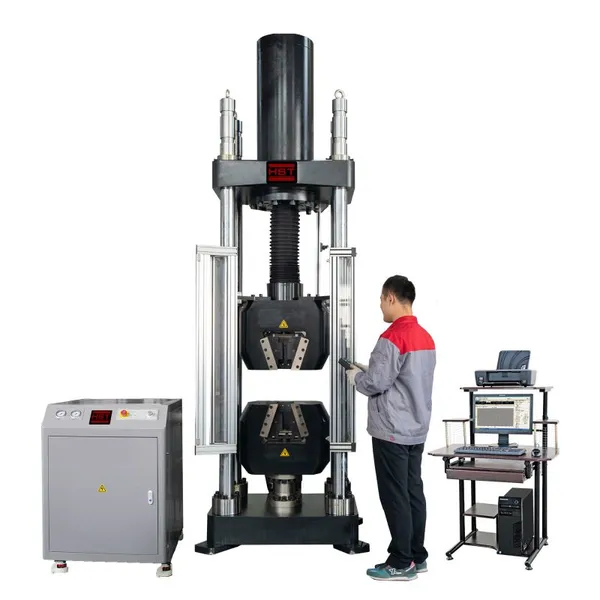

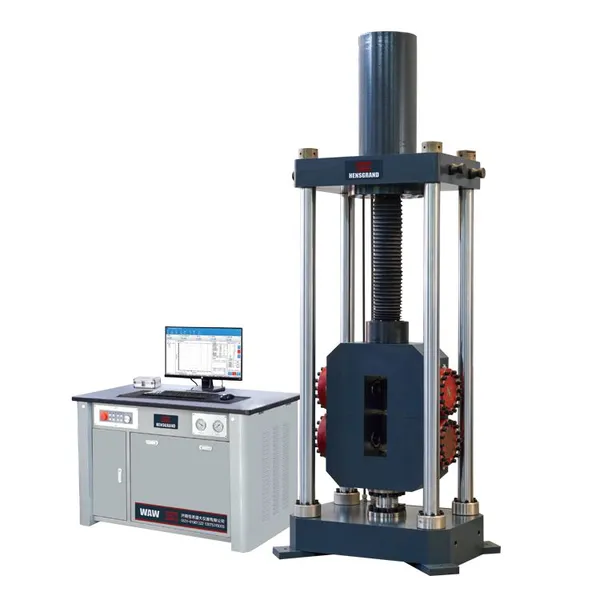

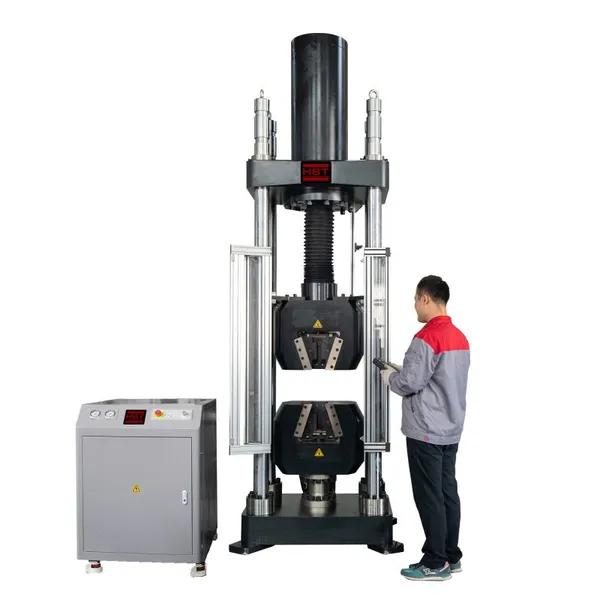

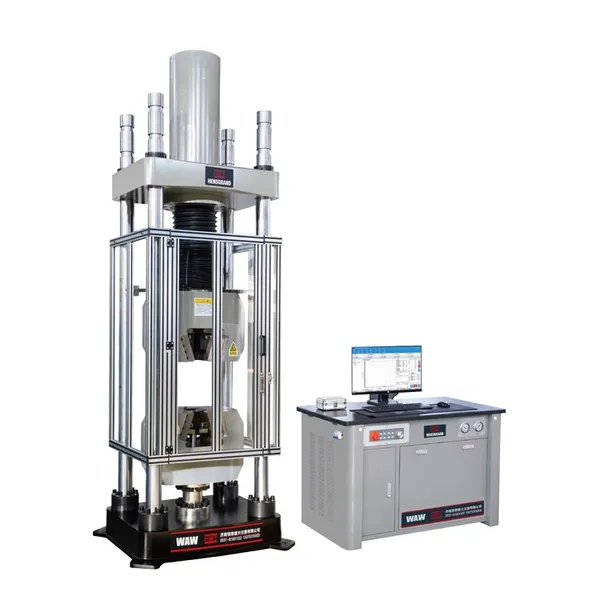

Hydraulic Compression Testing Electro-hydraulic Servo Universal Testing Machine Hydraulic Universal Metal Tensile Test Machine
US$ 53200 - 55000
MOQ: 1 Set
Key Specifications
Get Latest Price
Type:
Testing Machine
Warranty:
12months, 1 Year
Brand Name:
HST
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Hydraulic-Powered Computerized Servo Universal Testing MachineUS$ 53200 - 55000MOQ: 1 Set -
Automatic Computer Controlled Hydraulic-servo Utm Steel Rebar Tension Tensile Universal Tester Testing MachineUS$ 53200 - 55000MOQ: 1 Set
-
100 Ton Computer Servo Control Hydraulic Universal Tensile Testing Machine for Rebar Tensile Strength Tester 1000KNUS$ 53200 - 55000MOQ: 1 Set
-
WAW-2000F 2000kn Steel Bar Single Tensile for Test Machine EquipmentUS$ 50000 - 60000MOQ: 1 Set
-
WAW-1000F Manual Deformed Steel Bar Single Tensile for Test Machine 1-Year Warranty-ASTM Hydraulic Wedge Grip 1000KN forUS$ 30000 - 35000MOQ: 1 Set
Warranty
12months, 1 Year
Brand Name
HST
Place of Origin
Shandong, China
Product name
Hydraulic universal test machine
Application
Tensile, comprssion, bending test, Universal Testing, Auto Testing, Plastic Testing, Textile Testing, Paper Testing, Strength Testing, Tensile Testing, Compression Testing, Impact Testing
Power supply
380V, 50HZ, 3P or customized
Sturcture
4 columns
Standard
ASTM , ISO, EN, GB, etc
Certificate
CE, ISO
Clamping method
Hydraulic clamp
Protection way
Overload, overcurrent, protection net, etc
Customized support
OEM, ODM
Voltage
380 V
Protection Class
IP65
Power
2.5KW
Accuracy
≤± 0.5%
Products Description
Application
Clearance-free structure and actuator up and down to adjust the test space offers easy operation and high efficiency.
This machine is mainly used for tensile test of metallic materials.
It provides closed loop control of constant force, constant displacement and constant extension, smoothly switching among them.
Test results can be automatically calculated and be able to printed.
Standards
1. Load meets or exceeds the following standards: ASTM E4, ISO7500-1, EN10002-2, BS1610, DIN 51221.
2. Strainmeasurement meets or exceeds the following standard: ASTM E83, ISO 9513, BS3846, EN10002-4
3. Also conform to some other standards:ASTM E8, ASTM A370, ASTM 615, ISO 6892-1, ISO 146303, ISO 156301, BS 4449.
2. Strainmeasurement meets or exceeds the following standard: ASTM E83, ISO 9513, BS3846, EN10002-4
3. Also conform to some other standards:ASTM E8, ASTM A370, ASTM 615, ISO 6892-1, ISO 146303, ISO 156301, BS 4449.
Model |
WAW300F |
WAW600F |
WAW1000F |
WAW2000F |
WAW3000F |
||||
Max. Load capacity(kN) |
300 |
600 |
1000 |
2000 |
3000 |
||||
Structure |
Four column |
||||||||
Load resolution |
Capacity/500, 000 FS |
||||||||
Accuracy of testing load(%) |
Classe 0.5 dal 0.5% del fondo scala ISO-7500
±0.5
|
||||||||
Overload protection |
130％Overload protection (no deformation, no mechanical damage) |
||||||||
Accuracy of deformation(%) |
±0.5 |
||||||||
Test Range |
1%-100% |
||||||||
Deformation measurement range |
1%-100% |
||||||||
Resolution of displacement(mm) |
0.01 |
||||||||
Posion rising speed（mm/min） |
0-200 |
0-200 |
0-200 |
0-100 |
0-100 |
||||
Test Force Loading Rate Range |
0.02%-2%FS/s |
||||||||
Max. Tensile space(mm) |
700 |
700 |
750 |
830 |
850 |
||||
Max. Compression space(mm) |
550 |
550 |
600 |
680 |
650 |
||||
Actuator stroke(mm) |
650 |
650 |
700 |
750 |
650 |
||||
Distance between columns(mm) |
580 |
580 |
680 |
780 |
840 |
||||
Clamping method |
Hydraulic Automatic Clamp With side action grip |
||||||||
Round insert(mm) |
Ф13-Ф26; Ф26-Ф40 |
Ф13-Ф26; Ф26-Ф40 |
Ф13-Ф26; Ф26-Ф45 |
Ф15-Ф40; Ф40-Ф70 |
Ф15-Ф30; Ф30-Ф50; Ф50-Ф80 |
||||
Flat insert(mm) |
0-15, 15-30 15-30 |
0-15, 15-30 15-30 |
0-20, 20-40 |
10-40;40-70 |
10-40;40-80 40-70 |
||||
Compression platens(mm) |
Ф160 |
||||||||
Power supply |
3-phase-380V-50Hz |
||||||||
