Microcomputer-Controlled WAW Hydraulic Servo Universal Testing Machine Customized OEM Support
US$ 5999 - 19899
MOQ: 1 Set
Key Specifications
Get Latest Price
brand name:
HST
place of origin:
Shandong, China
customized support:
OEM, ODM, OBM
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
(GOOD) HST 300 KN Tensile Strength Hydraulic Universal Testing Machine Class 0.5 ISO 7500 Accuracy IP55 Protection 220V 1 YearUS$ 499 - 14899MOQ: 1 Set -
Hydraulic Compression Testing Electro-hydraulic Servo Universal Testing Machine Hydraulic Universal Metal Tensile Test MachineUS$ 53200 - 55000MOQ: 1 Set
-
Hydraulic-Powered Computerized Servo Universal Testing MachineUS$ 53200 - 55000MOQ: 1 Set
-
Automatic Computer Controlled Hydraulic-servo Utm Steel Rebar Tension Tensile Universal Tester Testing MachineUS$ 53200 - 55000MOQ: 1 Set
-
100 Ton Computer Servo Control Hydraulic Universal Tensile Testing Machine for Rebar Tensile Strength Tester 1000KNUS$ 53200 - 55000MOQ: 1 Set
brand name
HST
place of origin
Shandong, China
customized support
OEM, ODM, OBM
warranty
1 years
Model Number
WAW-1000D
Product name
Hydraulic universal test machine
Application
Tensile, comprssion, bending test
Power supply
380V, 50HZ, 3P or customized
Sturcture
4 columns and 2 screws
Standard
ASTM , ISO, EN, GB, etc
Max.piston stroke
250mm
Description
WAW-3000L 3000kN 300t Chain Belt Sling Horizontal Tensile Testing machine
Application:
It has widely application, for a variety of long, short sample test, especially for large, long length sample. Common test types such as: wire rope tensile test, lifting belt tensile test, safety rope tensile test, power fittings destruction test, etc

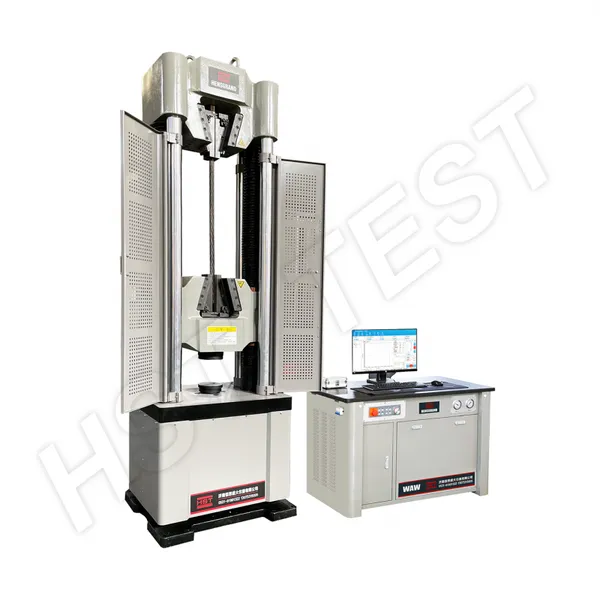

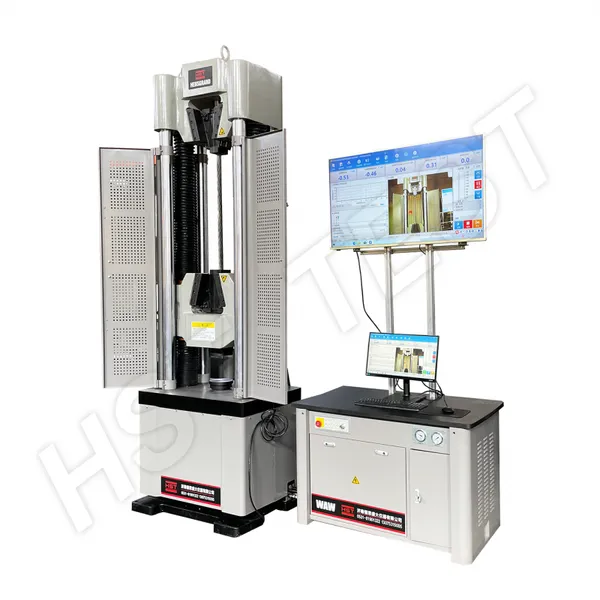

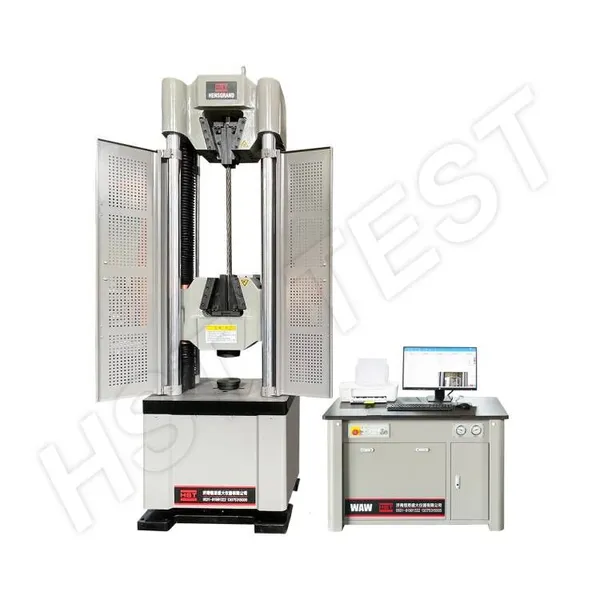

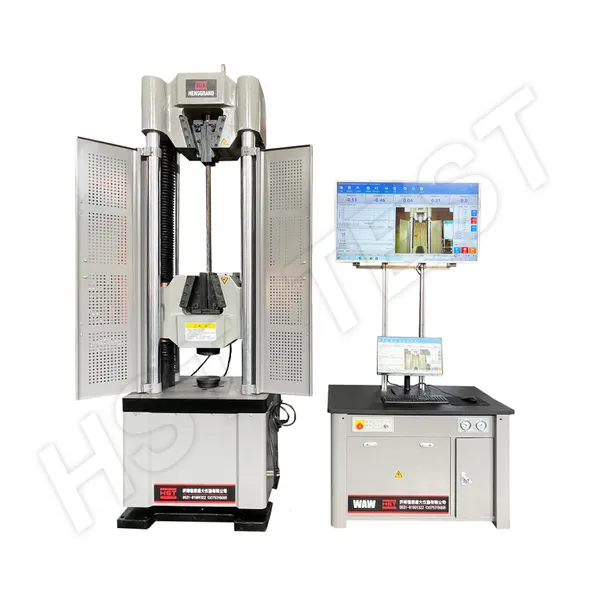

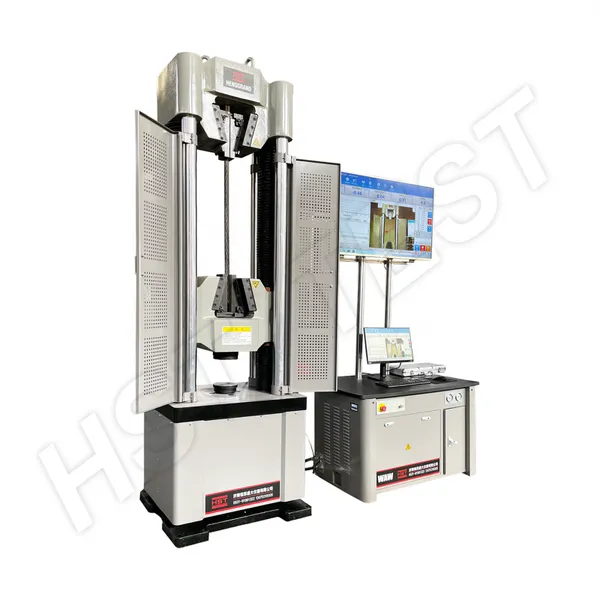

The machine adopting computer control, hydraulic servo drive, hydraulic single-pole bidirectional cylinder loading, precision spoke load sensor signal measuring force value, high accuracy sensor measurement displacement.
Smooth loading, accurate measurement, rapid control response, can achieve load control and displacement (speed) control, a variety of curve form. Can choose (superposition or a single display), can easily and accurately achieve the load, displacement and other digital calibration and verification, with full load protection and position protection, test data can be accessed arbitrarily and can re-analyze data and curves, including local amplification and data re-editing, test methods can be programmed and stored or read, and print out the test reports and curves
2.Standards
ASTMA370, ASTME4, ASTME8, ASTME9, ISO6892, ISO7438, ISO7500-1, EN10002-4, GB/T228-2002, GB 16491-2008, HGT 3844-2008 QBT 11130-1991, GB13-22-1991, HGT 3849-2008,GB6349-1986, GB/T 1040.2-2006, ASTM C165, EN826, EN1606, EN1607, EN12430 etc.
Technical parameter:
Model |
WAW-300/600/1000/2000/3000/5000L |
Max. Load(kN) |
300/600/1000/2000/3000/5000 |
Load accuracy |
Class 1 |
Load range |
2%～100%F·S |
Load resolution(kN) |
1/300000 |
Resolution of displacement (mm) |
0.01mm |
Max tensile space (mm) |
2000 ( can be customized ) |
Cylinder piston stroke(mm) |
1000 ( can be customized ) |
Displacement measuring range(mm) |
0～1000 |
Displacement accuracy |
±1% |
Range of stress loading |
1kN/s～100kN/s |
testing speed (mm/min) |
1~200 |
Piston speed |
0.1-250mm/min |
Power supply |
380 V / 3 phases 50 Hz. |
