(GOOD)Electro-Hydraulic Servo Universal Material Testing Machine Metals/Plastic/Steel Testing Equipment
US$ 499 - 14899
MOQ: 1 Set
Key Specifications
Get Latest Price
Type:
Testing Machine
Warranty:
16 Months
Accuracy:
Class 0.5, ISO 7500
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
220V Hydraulic Cylinder Tensile for Test Machine for Cement Mortar & Concrete 1-Year Warranty-Flexure Cube BreakingUS$ 2999 - 13299MOQ: 1 Unit -
High Precision Servo Hydraulic Universal Tensile Testing Machine Class 0.5 Accuracy IP55 Protection 1-Year Testing EquipmentUS$ 2999 - 12899MOQ: 1 Unit
-
Customized Hydraulic Servo Tensile Testing Machine 220V Electronic Tensile Strength Machine 1 Year Warranty Computer ControlUS$ 2999 - 12589MOQ: 1 Unit
-
300KN Hydraulic Servo Universal Tensile Strength Testing Machine Rebar Bolts Metal Tensile Testing With 220V VoltageUS$ 3899 - 12699MOQ: 1 Unit
-
ASTM A370 Hydraulic Universal Testing Machine for Steel Tensile for Test 1 Year Warranty ISO for CertifiedUS$ 2999 - 12499MOQ: 1 Unit
Warranty
16 Months
Accuracy
Class 0.5, ISO 7500
brand name
HST OR OEM
place of origin
Shandong, China
Application
Torsion Testing, Auto Testing, Universal Testing, Plastic Testing, Paper Testing, Strength Testing, Tensile Testing, Compression Testing, Impact Testing, Bending Testing, Wood Testing, Laboratory Testing
customized support
OEM, ODM, OBM
power
3-Phase, AC380V+/-10%, 50Hz(Can Be Customized)
Protection Class
IP55
Voltage
380 V, 220 V
warranty
1 year
Port
Qingdao Port
Manucfactrer
HST
Lead time
Within 7 days in stock
Payment term
T/T in advanced .50% deposit,50% before shipment
Load Accuracy
Class 0.5, ISO 7500
Displacement Resolution (mm)
AC 3 Phase 380V 60/50Hz or 220V
Measuring range
0.0025
Deformation Measuring Range
1%/2%~100%FS
Power Supply
3-Phase, AC380V+/-10%, 50Hz(Can Be Customized)
The advantages of equipment:

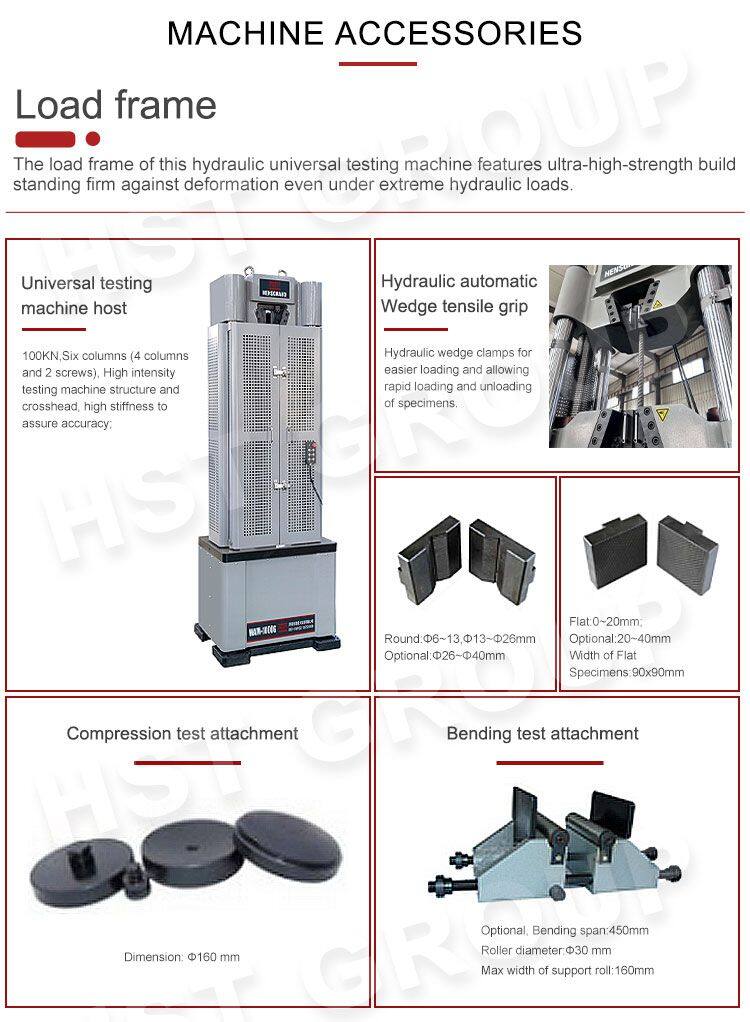

1. The load frame adopts the structure of the oil cylinder at the bottom and the barycenter is low, so that the whole structure is compactness and stability;
2. The upper beam and worktable are linked by the four upright columns, so the worktable move smoothly. Also the whole structure is compactness and stability;
3. Adopt the USA wheel load-sensors of high precision. Stable functions avoid the value of zero drift caused by the use of hydraulic sensors adopted by other manufacturers and the influence of measurement results caused by friction between the oil cylinder and piston.

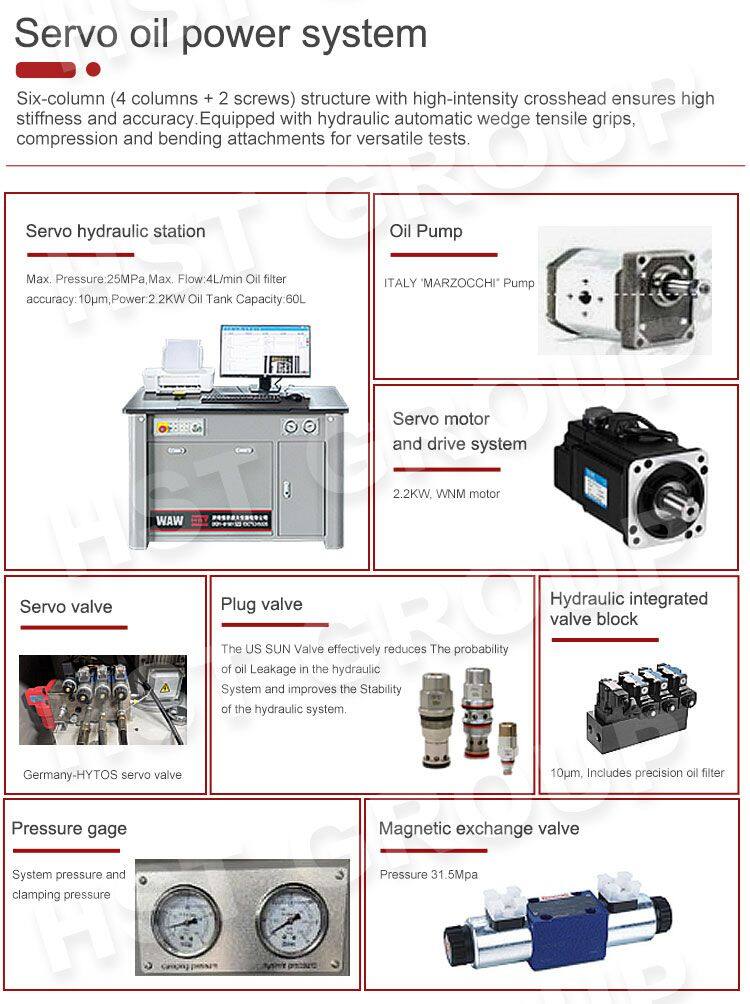

4. Italy imports oil pump unit, low noise and oil circuit is stability and no concussion;
5. Hydraulic seals adopt double-sealed structure, effectively preventing oil leaking;
6. Collocate the protective board, effectively preventing the clamping splint being scratched;
| MODEL | WAW-300E/600E/1000E/1000G/1200E/2000E | LAW-1000/1200 E | |
| Max.Load(kN) | 300/600/1000/1000/1200/2000 | 1000/1200 | |
| Load Accuracy | Class 0.5, ISO 7500 | ||
| Displacement Resolution (mm) | 0.0025 | ||
| Load Measuring Range | 1%~100% of FS | Load Range | 1%~100% of FS |
| Deformation Measuring Range | 1%~100%FS | Deformation Measurement Range | 2%~100% of Extensometer |
| Test Speed Accuracy | ≤+/-0.5% of Indicating Value | Max. Compression Test Space(mm) | 1100 |
| Displacement Accuracy | ≤+/-0.5% of Indicating Value | Displacement Value Relative Error | ≤+/-0.5% of Indicating Value |
| Load Resolution | 1/500,000 of FS | Max. Tension Test Space(mm) | 1400/1500 |
| Accuracy Of Stress Rate Control | +/-0.5% | Distance Between Two Columns(mm) | 580/610 |
| Tensile Testing Space(mm) | 780~1250 Depending on different version | Max. Piston Stroke(mm) | 250 |
| Compression Space(mm) | 550~850 Depending on different version | Testing Speeds(mm/min) | 0-100/0-80 |
| Distance Between Two Columns(mm) | 430~800 Depending on different version | Load frame dimension |
860×740×2600 900×760×2880 |
| Piston Stroke(mm) | 200~250 Depending on different version | Weight(KG) | 2750/3600 |
| Testing Speeds(mm/min) | 0-100/0-85 Depending on different version | Tensile grip for 17 strand wire |
Φ12.7-Φ21.6 Φ9.5-Φ28.6 |
| Load Frame Dimension(mm) | 745X685X190~100X850X3060 Depending on different version | Diameter of Round Specimens(mm) | Φ13-Φ26; Φ26-Φ45 |
| Oil Power Dimension(mm) | 1200X680X750 Depending on different version | Thickness of Flat Specimens(mm) | 0-20; Optional: 20-40 |
| Weight(kg) | 1500~5600 Depending on different version | Width of Flat Specimens for Tensile Test(mm) |
100×100 110×120 |
| Power Supply(1) | 2.75KW/3KW/5KW Depending on different version |
Welcome to contact us for more information |
|
| Power Supply(2) | 3-Phase, AC380V+/-10%, 50Hz(Can Be Customized) | ||
TIP:Extra wide/height frames is avaiable.
The power supply system/tensile space/test width and speed are fully customizable.
Didn't find the model you need? For more information on other models, feel free to contact us.
Measurement system:

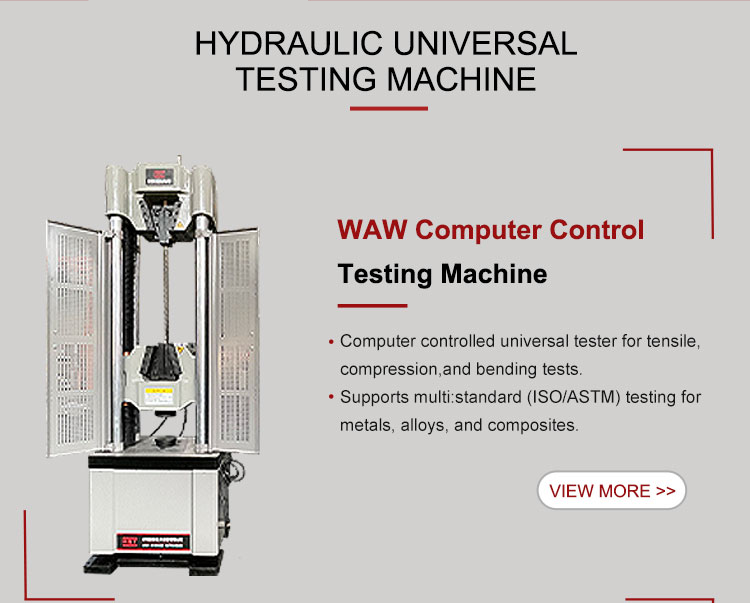

WAW microcomputer control electric-hydraulic servo universal testing machine adopts electronic measuring technology. There are characteristics of high accuracy, flexible collocation, strong interchangeability, easy to service and so on.
1. The force-measuring unit
Consists of high precision and high stability wheel load sensor and low-noise low-drift amp and 14 fast high-precision A/D converter, to ensure that the measurement of the whole range of the indication accuracy better than ± 1%.
2. Deformation and displacement measurement units
The measurement of small deformation (the rate of elongation is less than 50 %) adopts electronic extensometer and A/D converter circuit. the precision being ± 0.5%. For special requests, it can calibrate and identify several electronic extensometers.
The piston’s displacement is measured by displacement sensor.
Function and characteristics:
1. Automatic control: measurement, data acquisition & processing, drawing and printing test curve (which parts can be zoomed in or out) and test reports;
2. Monitoring system: being calibrated and turned to zero automatically;
3. Testing force: deformation and displacement are controlled by speed, and the controlling error is less than ± 1% of settings;
4. Stepless speed regulation: control speed and control way can be converted randomly in the testing and also can be kept;
5. Data storage and amplification of curve: In testing it can be arbitrary show different test curve;
6.In programe process: it can be converted to manual control, adjust manually and control speed at any moment.
7. Automatic protection if testing force overloading: the scope of protection can be arbitrary set, such as it can be set to 5% or 10% of the max testing force;
8. It can be conducted on network between testing labs and convenient for management.
Q1: What is your warranty?
A: The testing machine is guaranteed for 16 months by HST,we can help youto repair your problem controller freely,even it's not from our factory. Free Non-consumable components will be provided if any performance failure occurs within 16 months caused by non-human damage.
Q2: How to vedio provided?
A: Yes. if required, our engineers will record a specialize how-to video for you.
Q3: Are your company a trading one or a factory?
A: Yes, we are a manufactured factory&trade company (integration).15+ years focusing on test instruments field. 6 years exporting experience, warmly welcome to visit our plant (factory), we also support OEM and ODM service.
Q4: After an order is placed, when to deliver?
A: Generally about 10-25days, If we have inventory, we can arrange shipmentwithin 3 days.Please be aware that our production lead times depend on specificitems and item quantities.
Q5: What about the after-sales service and product’s quality?
A:Each instruments must be carried out 100% quality examination and test whenshipping and delivery goods. Engineers would be go abroad to training, repair and others help you need.
Q6: what about the packing of equipment?
A: Covered with air bubble film before put the machine into the stanard exporting wooden case, which not only has good shock absorption, impact resistance, heat sso has the advantag- es of nontoxic, odorless, moisture corrosion, good transparency etc.
