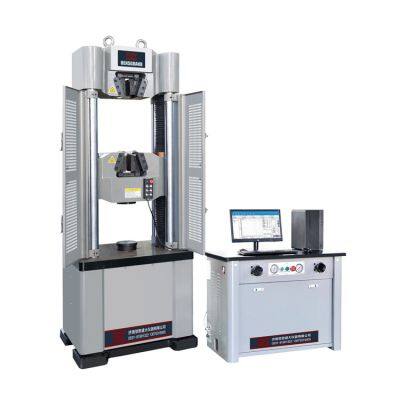

HST CE ISO Certificate WEW-1000D 1000kn Shear Compressive Bending UTM Universal Tensile Strength Testing Machine
US$ 8000 - 9500
MOQ: 1 Set
Key Specifications
Get Latest Price
Type:
Hydraulic Tensile Testing Machine
Display:
Computer Display
Maximum Compressive Space:
550 mm
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
HST 600 KN Tensile Strength Hydraulic Universal Testing Machine Class 0.5 Accuracy IP55 Protection Universal Testing MachineUS$ 43800 - 52800MOQ: 1 Set -
5000KN Hydraulic Servo Universal Testing Machine Tensile Testing Machine HST WAW-5000FUS$ 55000 - 135000MOQ: 1 Set
-
WE-600D Digital Wire Rope 600KN 60T Hydraulic Universal Tensile Strength Testing MachineUS$ 7000 - 9000MOQ: 1 Set
-
WE-1000E Digital Hydraulic Universal 1000KN 100T Steel Rebar Tensile Strength Testing MachineUS$ 7000 - 9000MOQ: 1 Set
-
WAW-2000E ASTM E8 200Ton 2000KN Steel Rebar Strand Wire HydraulicCompression Bending Tensile Universal Testing MachineUS$ 199440.15 - 202939.10MOQ: 1 Set
Maximum Compressive Space
550 mm
Maximum Tensile Space
780mm
Model Number
WEW-1000D
Brand Name
HST
Place of Origin
Shandong, China
Crossbeam Displacement Accuracy
0~300mm/min
Power Supply
380v/220V
Product name
WEW-100D automatic 60t servo tensile testing machine
Usage
Metal or nonmetal materials test
Max. Load force
100/300/600/1000KN
Sensor
Load cell
Power supply
AC 3 Phase 380V 60/50Hz
Function
Tensile compression bending shear test
Measuring range
2%~100%
Description
300/600kn/1000kn/2000kn 100kn-2000kn Hydraulic Universal Testing Machine Materials Tester for Wholesales
Application
This series material testing machine product group was primarily developed for standardized tests on ma- terials and components. Used in conjunction with the intuitive HKtest software.
Test Typical: wide range of tension, compression, bending, shearing and low cycle test. include metal, building components, rubber, plastic, spring, high strength steel (HSS), aerospace and automotive structures, screws, nuts,large fasteners, wood products etc.
Standards
ASTMA370, ASTME4, ASTME8, ASTME9, ASTM D638, ASTM D882, ASTM D3039,ASTM D3479, ASTM E517,ASTM D695,ASTM D6641, ASTM D3410, ASTM D7791, ASTM D412, ISO6892, ISO527-3, ISO527-4, ISO7438, ISO7500-1, EN10002-4, GB/T228-2002, GB 16491-2008, HGT 3844-2008 QBT 11130-1991, GB13-22-1991, HGT 3849-2008,GB6349-
1986, GB/T 1040.2-2006, ASTM C165, EN826, EN1606, EN1607, EN12430 etc
Features:
Full computer displayed of testing process.
Manual loading speed will meet your appropriate testing speed.
Stable and reliable high intensity 4 columns and 2 reeling screw columns structure load frame.
Timely display software will provide accurate record of testing process.
Adopt oil-hydraulic automatic clamping
Export guide will create your testing report very easily.
Overload protection will secure operators.
Technical parameter:
Model |
WEW-100D |
WEW-200D WEW-300D |
WEW-500D WEW-600D |
WEW-1000D/E |
WEW-1200D |
WEW-2000E |
|||||
Control Way |
loading process manual control,computer automatic data dealing |
||||||||||
Number of Screw drivers |
4 |
||||||||||
Max. Load(KN) |
100 |
200 /300 |
500/600 |
1000 |
1200 |
2000 |
|||||
Load Accuracy |
≤± 1%/ ≤± 0.5% |
||||||||||
Load Range |
2%~100%FS |
||||||||||
Load Resolution |
1/300000 |
||||||||||
Power Supply |
3-phase, AC380V, 50Hz (Can Be Customized) |
||||||||||
