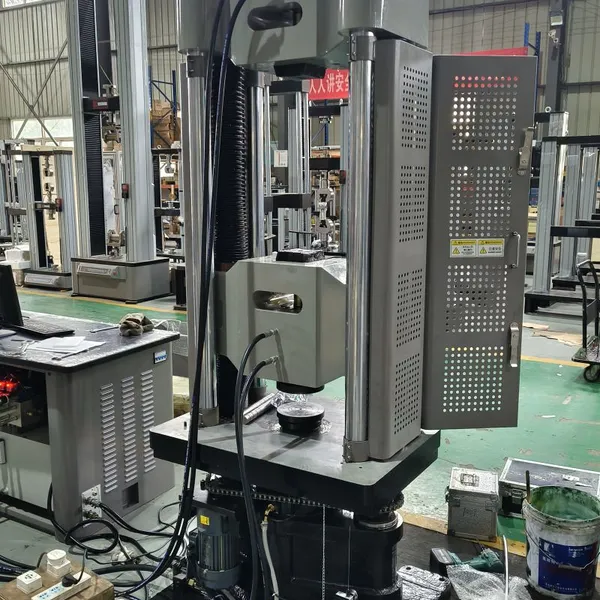

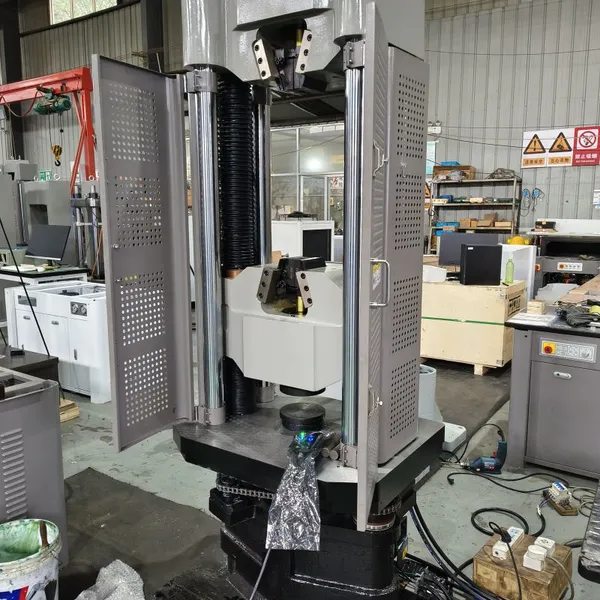

HST 300KN Electronic UTM Computer Servo Bolt Tensile Test Machine
US$ 90972.70
1 - 4 Set
US$ 83974.80
≥5 Set
Key Specifications
Get Latest Price
Type:
Testing Machine
Warranty:
12months
Accuracy Class:
High Accuracy
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
HST Hydraulic Universal 30T Computer Control Testing Machine 300 KN Servo Type Oil Cylinder Upper Testing Machine WAW-300AUS$ 13500 - 16500MOQ: 1 Set -
HST Hydraulic Universal Testing Machine 30T 300kN Class 0.5 Computer Control Hydraulic Universal Testing Machine WAW-300EUS$ 9500 - 12800MOQ: 1 Set
-
HST 500kN Hydraulic Universal Testing Machine Computer Control Tensile Space:800mm Universal Testing Machine WAW-500E 50TUS$ 10000 - 13200MOQ: 1 Set
-
3000KN Electro Hydraulic Single Universal Tensile Testing Machine Metal Wire Material for Laboratory HST WAW-3000FUS$ 60000 - 80000MOQ: 1 Set
-
Famous Brand 1000kN Electro Hydraulic Servo Universal Testing Machine/Tensile Testing MachineUS$ 35000 - 45000MOQ: 1 Set
Warranty
12months
Accuracy Class
High Accuracy
Accuracy
0.5
brand name
HST
place of origin
Shandong, China
customized support
OEM, ODM
power
2kw
Protection Class
IP67
Voltage
380 V
warranty
1YEAR
Product name
Hydraulic universal test machine
Application
Tensile, comprssion, bending test
Power supply
380V, 50HZ, 3P or customized
Sturcture
4 columns and 2 screws
Standard
ASTM , ISO, EN, GB, etc
Certificate
CE, ISO
Clamping method
Hydraulic clamp
Protection way
Overload, overcurrent, protection net, etc
Max.piston stroke
250mm
Products Description
Application
This series material testing machine product group was primarily developed for standardized tests on ma- terials and components. Used in conjunction with the intuitive HKtest software.
Test Typical: wide range of tension, compression, bending, shearing and low cycle test. include metal, building components, rubber, plastic, spring, high strength steel (HSS), aerospace and automotive structures, screws, nuts,large fasteners, wood products etc.
Standards
ASTMA370, ASTME4, ASTME8, ASTME9, ASTM D638, ASTM D882, ASTM D3039,ASTM D3479, ASTM E517,ASTM D695,ASTM D6641, ASTM D3410, ASTM D7791, ASTM D412, ISO6892, ISO527-3, ISO527-4, ISO7438, ISO7500-1, EN10002-4, GB/T228-2002, GB 16491-2008, HGT 3844-2008 QBT 11130-1991, GB13-22-1991, HGT 3849-2008,GB6349-
1986, GB/T 1040.2-2006, ASTM C165, EN826, EN1606, EN1607, EN12430 etc
Safety Divice
Stroke protection: Machinery,computer double protection, prevent over preset; Force protection: system setting
Emergency stop device: handing emergencies
Model |
WAW-100D |
WAW-200D WAW-300D |
WAW-500D WAW-600D |
WAW-1000D/E |
WAW-1200D |
WAW-2000E |
|||||
Control Way |
Constant stress uniform deformation constant displacement three closed loop control and program control dealing
|
||||||||||
Number of Screw drivers |
4 |
||||||||||
Max. Load(KN) |
100 |
200 /300 |
500/600 |
1000 |
1200 |
2000 |
|||||
Load Accuracy |
≤± 1%/ ≤± 0.5% |
||||||||||
Load Range |
2%~100%FS |
||||||||||
Load Resolution |
1/300000 |
||||||||||
Deformation Measurement Range |
2%~100%FS |
||||||||||
Deformation Accuracy |
≤± 1% |
||||||||||
Displacement Resolution |
0.01mm |
||||||||||
Testing speeds (mm/min) |
0.1~118 |
0.1~123 |
0.1~123 |
0.1~70 |
0.1~70 |
0.1~70 |
|||||
Adjustable crosshead speed(mm/min) |
450 |
450 |
350 |
350 |
320 |
320 |
|||||
Displacement Error |
≤±0.5% |
||||||||||
Max. Piston Stroke(mm) |
200 |
200 |
200 |
200/250 |
250 |
250 |
|||||
Max. Tension Test Space (mm) |
780 |
780 |
900 |
950/980 |
930 |
1250 |
|||||
Max. Compression Test Space |
550 |
550 |
650 |
700 |
640 |
850 |
|||||
Column Effective Spacing(mm) |
490 |
490 |
500 |
560/580 |
610 |
800 |
|||||
Clamping Method |
Hydraulic Automatic Clamp |
||||||||||
Flat Specimen Clamping Width(mm) |
80*80 |
80*80 |
90*90 |
100*100 |
120*110 |
150*120 |
|||||
Compression Plate Size |
Φ 160mm |
||||||||||
Bending Roller Distance |
450mm |
||||||||||
Width Of Bending Rollers |
120mm |
||||||||||
Power Supply |
3-phase, AC380V, 50Hz (Can Be Customized) |
||||||||||
