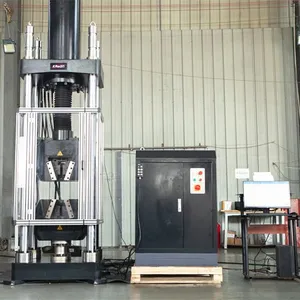

HST 600 KN Tensile Strength Hydraulic Universal Testing Machine Class 0.5 Accuracy IP55 Protection Universal Testing Machine
US$ 43800 - 52800
MOQ: 1 Set
Key Specifications
Get Latest Price
Type:
Testing Machine
Accuracy Class:
High Accuracy
Accuracy:
≤± 0.5%
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
5000KN Hydraulic Servo Universal Testing Machine Tensile Testing Machine HST WAW-5000FUS$ 55000 - 135000MOQ: 1 Set -
WE-600D Digital Wire Rope 600KN 60T Hydraulic Universal Tensile Strength Testing MachineUS$ 7000 - 9000MOQ: 1 Set
-
WE-1000E Digital Hydraulic Universal 1000KN 100T Steel Rebar Tensile Strength Testing MachineUS$ 7000 - 9000MOQ: 1 Set
-
WAW-2000E ASTM E8 200Ton 2000KN Steel Rebar Strand Wire HydraulicCompression Bending Tensile Universal Testing MachineUS$ 199440.15 - 202939.10MOQ: 1 Set
-
WAW-600E 60Ton 600KN ASTM A370 Steel Rebar Wire Rod Hydraulic Universal Shear Bending Tensile Testing MachineUS$ 66480.05 - 69979.00MOQ: 1 Set
Accuracy Class
High Accuracy
Accuracy
≤± 0.5%
brand name
HST
place of origin
Shandong, China
Application
Universal Testing, Auto Testing, Plastic Testing, Textile Testing, Paper Testing, Strength Testing, Tensile Testing, Compression Testing, Impact Testing
customized support
OEM, ODM
power
/KW
Protection Class
IP65
Voltage
380 V
warranty
1 Year
Product name
Electro-Hydraulic Single Space Servo Universal Testing Machine
Model
HST WAW-600J
Load Capacity
600kN
Accuracy class
Class 0.5, ISO-7500
Testing load Accuracy
≤±0.5%
Test force range
1%-100%F.S
Deformation resolution
1/500,000 of FS
Displacement resolution
0.01mm
Power supply
3 phase, AC380V±10%, 50Hz

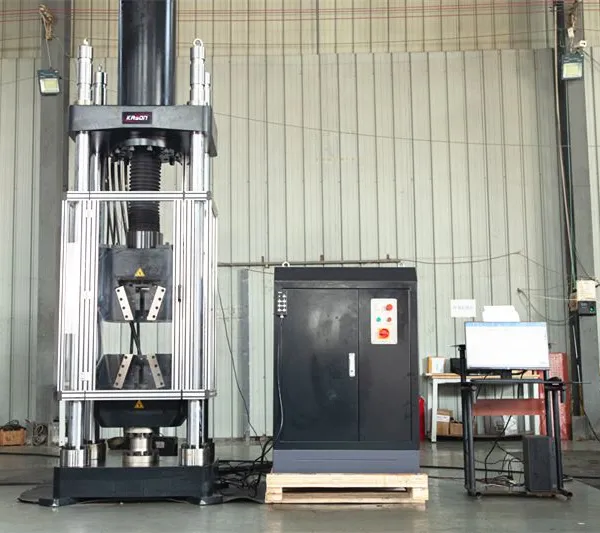

HST WAW-600J Electro-hydraulic Single Space Servo Universal Testing Machine (Hydraulic Automatic Flat Push Grip)
If you want to know more models, price please contact Lisa:
Email: lisa@hssdtest.com Whatsapp/Wechat: 008615866783008
Products Description
Application:
HST-WAW600J servo-hydraulic universal testing machine is designed with up-mounted actuator structure. Bidirectional differential cylinder provides bidirectional control of tension and compression in one single space.
Clearance-free structure and actuator up and down to adjust the test space offers easy operation and high efficiency. This machine is mainly used for tensile test of metallic materials. It provides closed loop control of constant force, constant displacement and constant extension, smoothly switching among them. Test results can be automatically calculated and be able to printed and exported.
Safety Divice
* Strokeprotection:Machinery, computer double protection, prevent over preset
* Force protection: system setting
* Emergency stop device: handing emergencies
Applied Standards:
1. Load meets or exceeds the following standards: ASTM E4, ISO7500-1, EN10002-2, BS1610, DIN 51221.
2. Strainmeasurement meets or exceeds the following standard: ASTM E83, ISO 9513, BS3846, EN10002-4
3. Also conform to some other standards:ASTM E8, ASTM A370, ASTM 615, ISO 6892-1, ISO 146303, ISO 156301, BS 4449.
HST-WAW600J servo-hydraulic universal testing machine is designed with up-mounted actuator structure. Bidirectional differential cylinder provides bidirectional control of tension and compression in one single space.
Clearance-free structure and actuator up and down to adjust the test space offers easy operation and high efficiency. This machine is mainly used for tensile test of metallic materials. It provides closed loop control of constant force, constant displacement and constant extension, smoothly switching among them. Test results can be automatically calculated and be able to printed and exported.
Safety Divice
* Strokeprotection:Machinery, computer double protection, prevent over preset
* Force protection: system setting
* Emergency stop device: handing emergencies
Applied Standards:
1. Load meets or exceeds the following standards: ASTM E4, ISO7500-1, EN10002-2, BS1610, DIN 51221.
2. Strainmeasurement meets or exceeds the following standard: ASTM E83, ISO 9513, BS3846, EN10002-4
3. Also conform to some other standards:ASTM E8, ASTM A370, ASTM 615, ISO 6892-1, ISO 146303, ISO 156301, BS 4449.
Specifications:
Product Model |
HST WAW-600J |
|
Max. Load capacity |
600kN |
|
Structure |
Single space, four column |
|
Accuracy class |
Class 0.5, ISO-7500 |
|
Testing load Accuracy |
≤±0.5% |
|
Test force range |
1%-100%F.S |
|
Test force resolution |
1/500,000 of FS |
|
Deformation measuring range |
1%～100%FS |
|
Deformation accuracy |
±0.5% |
|
Deformation resolution |
1/500,000 of FS |
|
Displacement resolution |
0.01mm |
|
Maximum speed of piston rise |
200mm/min |
|
Test force loading rate range |
0.02%～2%FS/s |
|
Tensile space |
700mm |
|
Max. Compression space |
550mm |
|
Space between columns |
580mm |
|
Piston stroke |
650mm |
|
Clamping method |
Hydraulic Automatic Clamp With Flat Push Grip |
|
Round insert |
Ф13-Ф26mm, Ф26-Ф40mm |
|
Flat insert |
0-15mm, 15-30mm |
|
Compression plant |
Ф160mm |
|
Dimension of load frame |
950×800×3000mm |
|
Dimension of control console |
1200×680×2750mm |
|
Weight |
Approx. 3000KG |
|
Power |
3 phase, 380VAC±10％, 50Hz |
|
Operating Temperature |
0 to +38° C (+32 to +100° F) |
|
Humidity Range |
10% to 90% non-condensing |
|
NOTE: 1. Extra wide and/or extra height frames are available. 2. Power supply system is completely customizable. 3. Specifications are subject to change without notice. |
||
Load frame features:
1 Single-space structure, Single zone design ensures all types of tests finish in one space. Compact and reasonable design is ergonomic and effectively reduces labor intensify.
2 Top-mounted hydraulic double direction actuator is used to apply a tensile or compressive load to the test specimen; this design makes it easy to provide different stroke lengths and extended test openings to suit unique applications without costly customization.
3 The main frame is full rigid and gap-free structure. When the tensile specimen is broken, the testing machine has no impact on the ground. Meanwhile, the host has the advantages of high resistance to pull (pressure).
4 4-column construction providing superior axialand lateral stiffness, chrome plated columns for easy cleaning and longest life.
5 Large test space Double acting crossbeam quickly accommodates specimens of varying lengths. In the case of additional length of columns, the maximum testing space is adjustable to meet extra length specimens.
6 Optional extra height load frames are available to accommodate pretested concrete strand.
