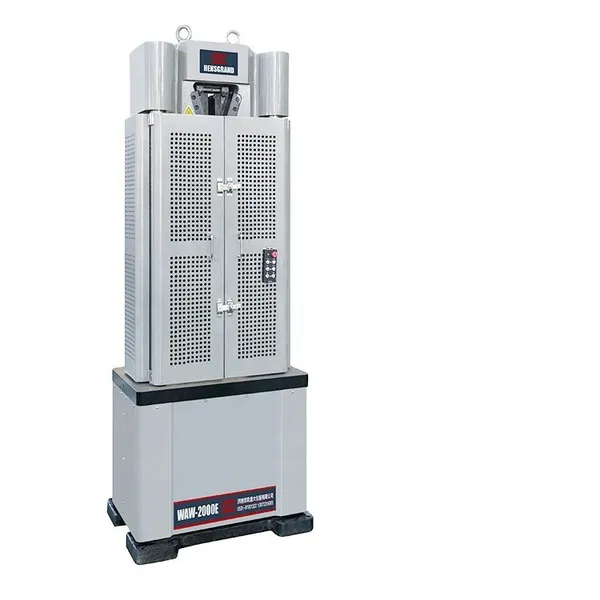

Help CenterWAW-2000E ASTM E8 200Ton 2000KN Steel Rebar Strand Wire HydraulicCompression Bending Tensile Universal Testing Machine
Related Products
-
WAW-600E 60Ton 600KN ASTM A370 Steel Rebar Wire Rod Hydraulic Universal Shear Bending Tensile Testing MachineUS$ 66480.05 - 69979.00MOQ: 1 Set -
WAW-300E 30Ton 300KN ASTME4 Steel Rebar Wire Rod Hydraulic Universal Shear Bending Tensile Testing MachineUS$ 66480.05 - 69979.00MOQ: 1 Set
-
WAW-2000E 200Ton 2000KN Steel Rebar Strand Wire Plastic Hydraulic Universal Compression Bending Tensile Testing MachineUS$ 199440.15 - 202939.10MOQ: 1 Set
-
WAW-2000E 200 Ton / 2000 KN Hydraulic Universal Testing MachineUS$ 25000 - 35000MOQ: 1 Set
-
2000kn 200tons Universal Testing Machine Metal Hydraulic Universal Testing Tensile MachineUS$ 25000 - 35000MOQ: 1 Set

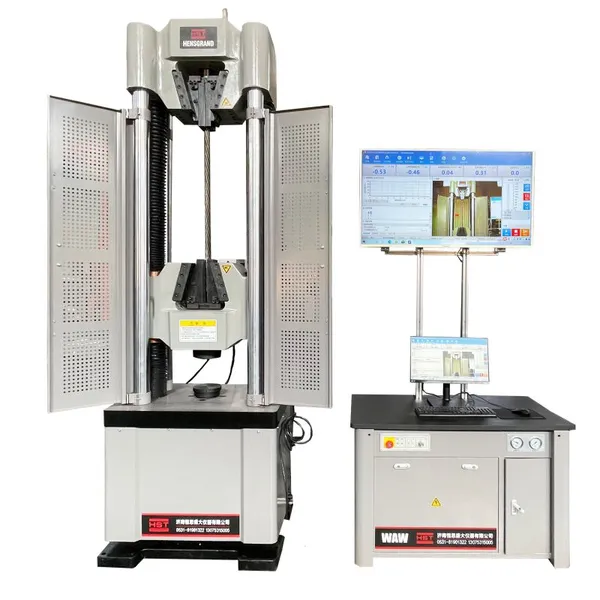

2000kn 200tons Universal Testing Machine Metal Hydraulic Universal Testing Tensile Machine
1. Application
Factory Steel Rebar Steel Strip Steel Sheet Tensile Test Equipment for sale is suitable for tension,
compression, bending, shearing, peeling, tearing and other tests by adding different test fixture for metal and nonmetal materials. It is widely used in inspection department, engineering area, laboratories, universities and institutes for material properties research and quality control.
2. Standards
ISO75001, ASTM A370, ASTM E4, ASTM E8 and BSEN standards
|
Model |
WAW-100D |
WAW-200D WAW-300D |
WAW-600D |
WAW-1000D/E |
WAW-1200E |
WAW-2000E |
|||
|
Control Way |
Constant stress uniform deformation constant displacement three closed loop control and program control dealing |
||||||||
|
Number of Screw drivers |
4 |
||||||||
|
Max. Load(KN) |
100 |
200 /300 |
600 |
1000 |
1200 |
2000 |
|||
|
Load Accuracy |
≤± 1%/ ≤± 0.5% |
||||||||
|
Load Range |
2%~100%FS |
||||||||
|
Load Resolution |
1/300000 |
||||||||
|
Deformation Measurement Range |
2%~100%FS |
||||||||
|
Deformation Accuracy |
≤± 1% |
||||||||
|
Displacement Resolution |
0.01mm |
||||||||
|
Testing speeds (mm/min) |
0.1~118 |
0.1~123 |
0.1~123 |
0.1~70 |
0.1~70 |
0.1~70 |
|||
|
Adjustable crosshead speed(mm/min) |
450 |
450 |
350 |
350 |
320 |
320 |
|||
|
Displacement Error |
≤±0.5% |
||||||||
|
Max. Piston Stroke(mm) |
200 |
200 |
200 |
200/250 |
250 |
250 |
|||
|
Max. Tension Test Space (mm) |
780 |
780 |
900 |
950/980 |
930 |
1250 |
|||
|
Max. Compression Test Space |
550 |
550 |
650 |
700 |
640 |
850 |
|||
|
Column Effective Spacing(mm) |
485 |
485 |
500 |
560/580 |
610 |
800 |
|||
|
Clamping Method |
Hydraulic Automatic Clamp |
||||||||
|
Flat Specimen Clamping Width(mm) |
80*80 |
80*80 |
90*90 |
100*100 |
120*110 |
150*120 |
|||
|
Compression Plate Size |
Φ 160mm |
||||||||
|
Bending Roller Distance |
450mm |
||||||||
|
Width Of Bending Rollers |
120mm |
||||||||
|
Power Supply |
3-phase, AC380V, 50Hz (Can Be Customized) |
||||||||
