HST Hydraulic Universal 30T Computer Control Testing Machine 300 KN Servo Type Oil Cylinder Upper Testing Machine WAW-300A
US$ 13500 - 16500
MOQ: 1 Set
Key Specifications
Get Latest Price
Type:
Testing Machine
Accuracy:
≤± 1%
brand name:
HST
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
HST Hydraulic Universal Testing Machine 30T 300kN Class 0.5 Computer Control Hydraulic Universal Testing Machine WAW-300EUS$ 9500 - 12800MOQ: 1 Set -
HST 500kN Hydraulic Universal Testing Machine Computer Control Tensile Space:800mm Universal Testing Machine WAW-500E 50TUS$ 10000 - 13200MOQ: 1 Set
-
3000KN Electro Hydraulic Single Universal Tensile Testing Machine Metal Wire Material for Laboratory HST WAW-3000FUS$ 60000 - 80000MOQ: 1 Set
-
Famous Brand 1000kN Electro Hydraulic Servo Universal Testing Machine/Tensile Testing MachineUS$ 35000 - 45000MOQ: 1 Set
-
New Design Equipment 1000kn Tensile Compressive Bending Strength 50ton Universal Testing Machine With Ce CertificateUS$ 35000 - 45000MOQ: 1 Set
Accuracy
≤± 1%
brand name
HST
place of origin
Shandong, China
Application
Universal Testing, Auto Testing, Plastic Testing, Textile Testing, Paper Testing, Strength Testing, Tensile Testing, Compression Testing, Impact Testing
customized support
OEM, ODM
power
/KW
Protection Class
IP65
Voltage
380 V
warranty
1 Year
Product name
Computer control hydraulic universal testing machine
Model
HST WAW-300A
Load Capacity
300kN
Calibration standard
Class 1
Testing load Accuracy
±1%
Load Measuring Range
2%~100%FS(10-40kN,40-70KN)
Load Resolution
1/500,000 of FS
Testing Speeds
0~50mm/min
Power supply
3 phase, AC380V±10%, 50Hz

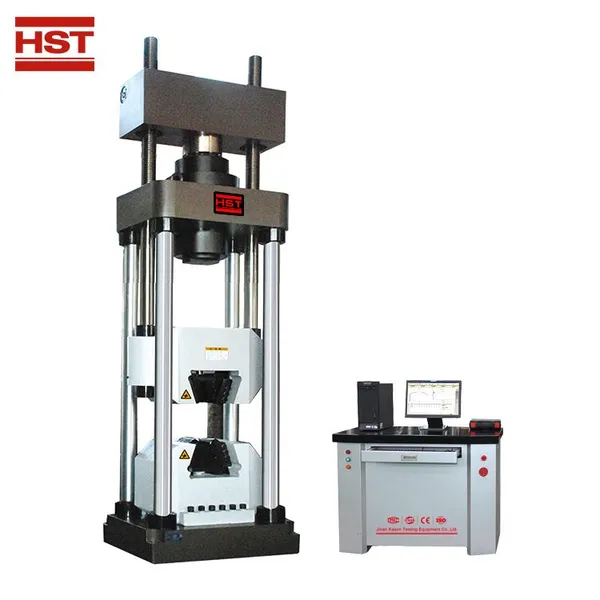

HST WAW-300A 300kN Computer Control
Servo Hydraulic Universal Testing Machine
(Top seated cylinder structure)
If you want to know more models, price please contact Lisa:
Email: lisa@hssdtest.com Whatsapp/Wechat: 008615866783008
Products Description
Application:
WAW Series Computer-Controlled Servo-hydraulic Universal Testing Machine is suitable to test various metallic & non-metallic materials for tension, compression, bending and shearing testing.
Types of specimens and materials:
1. Metals-(wire, rod, tube, strip, plate, strip) ;
2. Fasteners (tensile, proof, single and double shear) ;
3. Construction materials (reinforcement bar, wire, mesh, folding, compression of concrete and components).,etc.
Applied Standards:
Load meets or exceeds the following standards: ASTM E4, ISO7500-1, EN 10002-2, BS1610, DIN 51221.
Strain measurement meets or exceeds the following standards: ASTM E83, ISO 9513, BS 3846 and EN 10002-4.
WAW Series Computer-Controlled Servo-hydraulic Universal Testing Machine is suitable to test various metallic & non-metallic materials for tension, compression, bending and shearing testing.
Types of specimens and materials:
1. Metals-(wire, rod, tube, strip, plate, strip) ;
2. Fasteners (tensile, proof, single and double shear) ;
3. Construction materials (reinforcement bar, wire, mesh, folding, compression of concrete and components).,etc.
Applied Standards:
Load meets or exceeds the following standards: ASTM E4, ISO7500-1, EN 10002-2, BS1610, DIN 51221.
Strain measurement meets or exceeds the following standards: ASTM E83, ISO 9513, BS 3846 and EN 10002-4.
Specifications:
Product Model |
HST WAW-300A |
|
Load Capacity |
300kN |
|
Load Capacity |
30000kgf |
|
Calibration standard |
ISO 7500 |
|
Calibration standard |
Class 1 |
|
Testing load Accuracy |
±1% |
|
Load Measuring Range |
2%～100%FS |
|
Load Resolution |
1/500,000 of FS |
|
Accuracy of Stress Rate Control |
±0.5% |
|
Displacement resolution |
0.0025mm |
|
Displacement accuracy |
≤±0.5% of Indicating Value |
|
Deformation measuring range |
1%~100%FS |
|
Deformation resolution |
1/±500000FS of the max deformation |
|
Deformation accuracy |
≤±0.5% of Indicating Value |
|
Overload Protection |
≥5% of Full Range |
|
Max. Tensile Testing Space |
1000mm |
|
Compression testing space |
800mm |
|
Max. Piston stroke |
250mm |
|
Testing Speeds |
0~50mm/min |
|
Controls parameter |
||
Control mode |
Force closed loop control, deformation closed loop control, displacement closed loop control |
|
Force control controls the speed range |
0.001%~5%FS/s |
|
Force control speed control accuracy |
When 0.001% ~ 1% FS/s is better than ≤± 0.5%; When 1% ~ 5% FS/s better than ≤± 0.2% |
|
Force control hold accuracy |
±0.002%F.S |
|
Deformation control controls speed range |
0.001%~5%FS/s |
|
Deformation control accuracy accuracy |
When 0.001% ~ 1% FS/s is better than ≤± 0.5%; When 1% ~ 5% FS/s better than ≤± 0.2%； |
|
Deformation control hold accuracy |
≤±0.002%F.S |
|
Displacement control speed range |
0.1~85mm/min |
|
Displacement control speed accuracy |
≤±0.2% |
|
Displacement control hold accuracy |
≤±0.02mm |
|
Hydraulic servo oil source parameters |
||
Max. pressure |
25MPa |
|
Max. oil pump flow |
7 L/min |
|
Oil filter accuracy |
10um |
|
Main oil pump motor power |
4KW |
|
Oil tank capacity |
110L |
|
Accessory parameters |
||
Clamping mode |
Built-in wedge type hydraulic automatic clamping |
|
Overall dimensions of the jaws |
150x120mm |
|
Round specimen clamping range |
Φ15-Φ30,Φ30-Φ55,Φ55-Φ70mm |
|
Flat specimen clamping thickness |
10-40,Optional 40-70mm |
|
Compression plate dimensions |
Φ160mm |
|
Machine parameter |
||
Load frame dimension |
1100x850x3060mm |
|
Oil power dimension |
1200x680x750mm |
|
Weight |
6500kg |
|
Power supply |
3 phase, AC380V±10%, 50Hz |
|
Operating Temperature |
0 to +38° C (+32 to +100° F) |
|
Humidity Range |
10% to 90% non-condensing |
|
NOTE: 1. Extra wide and/or extra height frames are available. 2. Power supply system is completely customizable. 3. Specifications are subject to change without notice. |
||
Features:
* Top seated cylinder structure makes theinstallation of frame without complicated foundation construction.
* Extra-length screws and columns, with anadjustable upper crosshead, to increase the available test space for longer test
Other tensile grip (optional)
Test area for compression /flexural / bending/shear (optional)
In the lower test area, various testing devices may be coupled, such as compression plates, or test devices for flexural, bending.punching, etc.
Company Profile
Recommend Products
50N-5KN Single Column Universal Testing Machine |
Electronic Universal Testing Machine with 10kN Pneumatic Grips |
Electronic Universal Testing Machine with Hydraulic grips |
Electronic Universal Testing Machine with Temperature Chamber |
50kN -1000kN Hydraulic Dynamic Static Fatigue Testing Machine |
100kN -2000kN Servo Hydraulic Universal Testing Machine |
Customer Photos
Exhibition
Certifications
FAQ:
Are your company a trading one or a factory ?
Factory + trade (integration),19 years focusing on test instruments field,14 yearsexporting experience. How to choose the most suitable products? Our professional team will give you the best suggestion as long as you tell us what
kind of test you need to do and the required specification.
How to operate the machine ?
kind of test you need to do and the required specification.
How to operate the machine ?
We will deliver English manual and video with the machine to you. If you still need our help, please contact us.
Does the machine can be customized according to my requirements ?
Sure, we have a strong technical team and have rich experience.Our goal is to make you satisfied.
What's the delivery term?
At most of time, we have stock in the factory. If there is no stock, normally, the delivery time is 3-10 working days after deposit receipt. If you are in urgent need, we can consider making special arrangement for you.
How about your warranty?
Generally, our warranty is one year. Within the warranty period, we can offer technique support and part
parts change, necessarily, our engineers may go to your place for better service.
parts change, necessarily, our engineers may go to your place for better service.
Can you arrange the shipment for me ?
We can arrange the shipment for our clients by sea or by air. Trading terms FOB, CIF, EXW are available.
