Semiconductor Heat Exchange Equipment

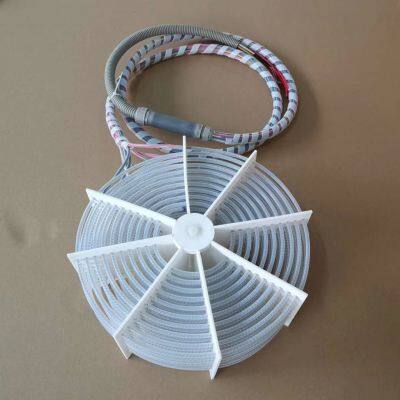

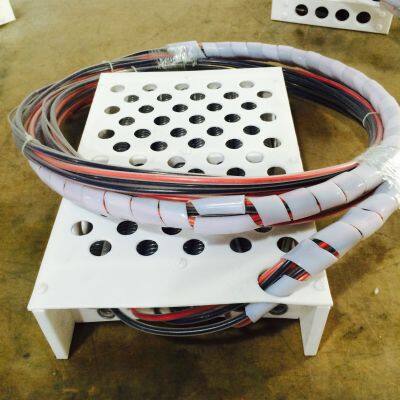

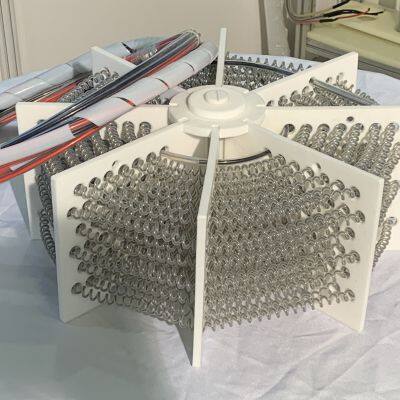

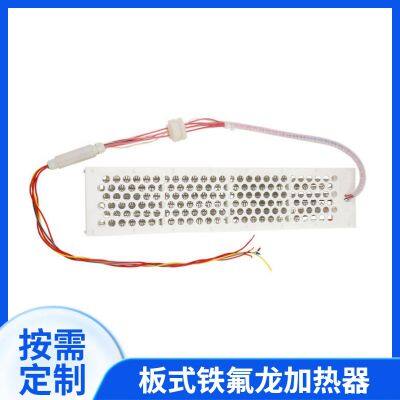

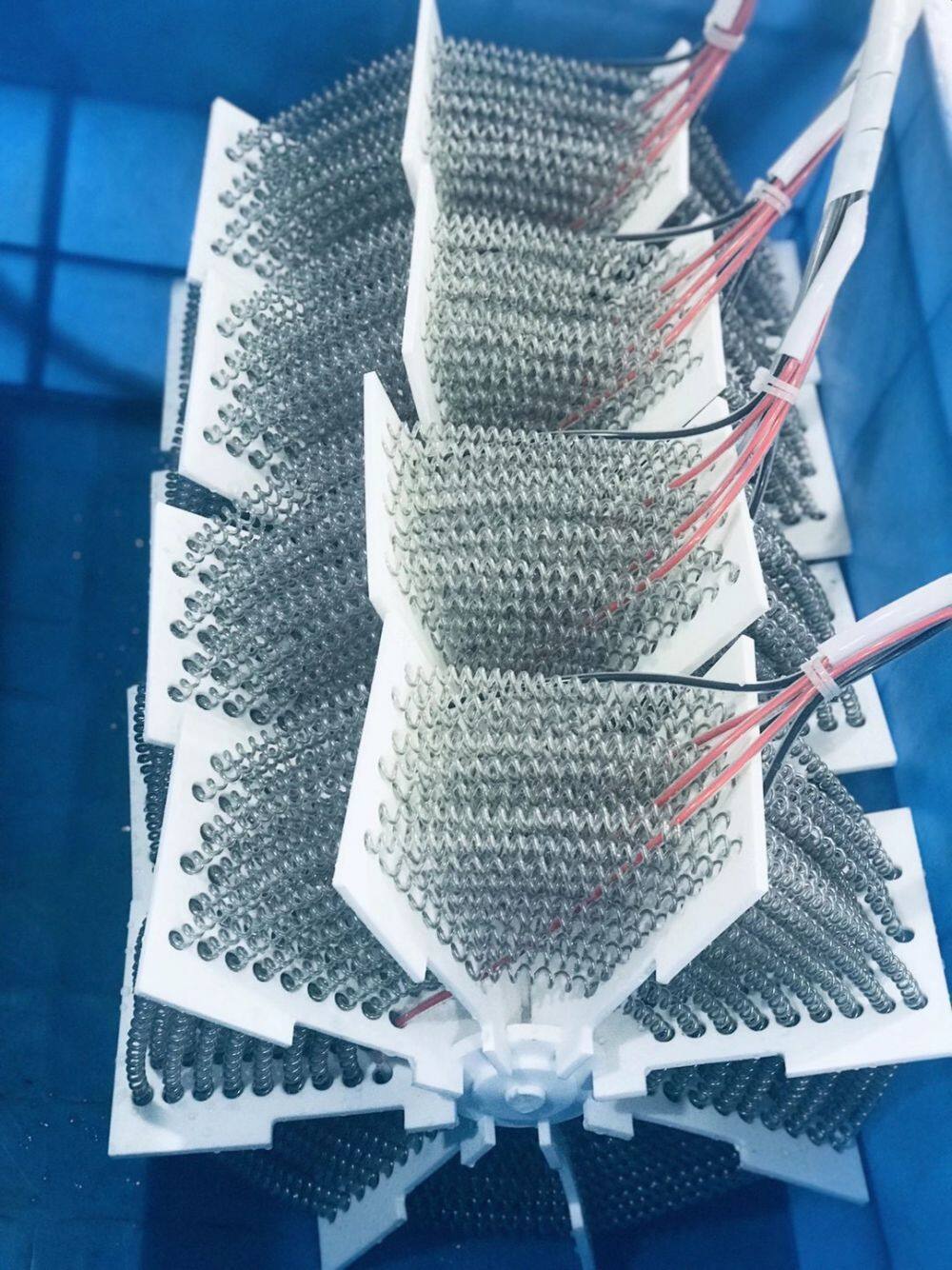

Plate heater
Voltage: 380V/220V or customized
Phase number: 1P2P 3P
Power 1.5KW to 18KW or 3P24KW
Size: Customized according to actual requirements
Features: Plate heater
1. Made of high-quality heating wire direct coating (CPTEF), selected from imported fluoroplastic to manufacture, strong corrosion resistance, non-sticky, energy-saving, environmentally friendly, suitable for all kinds of corrosive liquid heating, 2. Low surface power design to ensure the service life of the product.
3. The electric heaters are equipped with PT100 temperature probes or temperature fuses to extend the service life of the product and ensure the safety of the equipment 4. Energy saving: 20% energy saving compared with heaters of the same power. 5. This product has passed CE certification. Scope of application: single crystal fleece, electronic sheet fleece glass cleaning
Made of high-quality heating wire direct coating (PFA), made of fluorine plastic materials such as DuPont Raw Materials (TEFLON) and Daikin Co., Ltd. (FLON) of Japan, it is manufactured with strong corrosion resistance, non-stickiness, energy saving, environmental protection, and is suitable for heating all kinds of corrosive liquids with low surface power design.<1.5W/C m2) to ensure the service life of the product. The installation position of the electric heater should be careful to prevent the deposits in the solution from being too thick on the surface of the electric heater or the liquid level, and if the liquid level is too low, it will burn the iron gas dragon (PFA) due to poor surface heat dissipation.
The electric heater can be optionally paired with a PT100 temperature probe or a thermal fuse (110) to ensure the service life of the product and the safety of the equipment.
5. Energy saving: 23% energy saving compared with heaters of the same power. This product has passed the CE certification for the EU market. According to customer requirements, strictly design product materials to meet the technical conditions of the process.

The ultra-pure in-line fluid heater series is designed for use in industrial fluid heating applications such as semiconductor, solar, MEMS: and other industries that require the most stringent purity standards. These heaters are made from the highest quality fluoropolymer materials and can be custom-designed for both deionized water and less corrosive process chemicals. Ideal for recirculation and point-of-use use, PVDF/PFA in-line heaters offer a small footprint that saves space and is easy to integrate into existing systems. These heaters range from 1-30kW and have a wide global voltage range. Advantages: Ultra-pure design· PVDF/PFA wetted surface, fast reaction, low power density; ≤ 4 W/in, compact design Maximum power heaters typically have a height of 10" to 30" and a diameter range of 4" to 6" in the smallest footprint Flexible Schemes Multiple designs with multiple options, voltage and power output
Features • Wet surface: PVDF/PFA Size: 1kW to 30kW (depending on customer voltage) • Voltage: 200VAC to 480VAC 1ph and 3ph (depending on power) Temperature: Ambient temperature of 95°C (203°F), :±0.1°C (depending on customer convenience) Flow rate: 0.5GPM (1.9LPM) to 32GPM (122LPM) (depending on model Pressure: 60PSIG @ 95°C Efficiency: >99%
