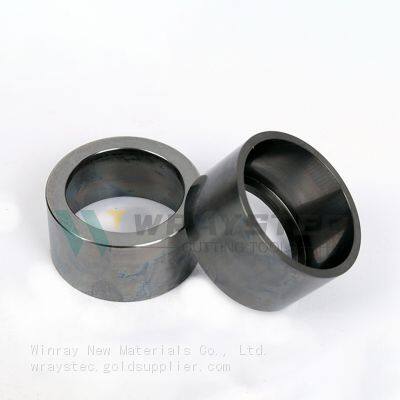

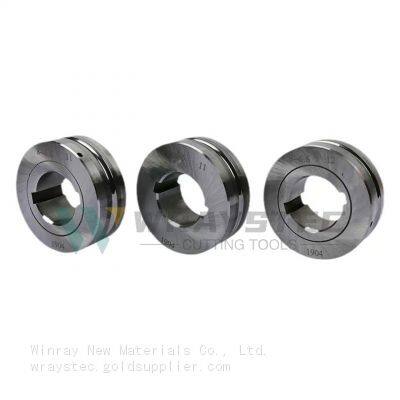

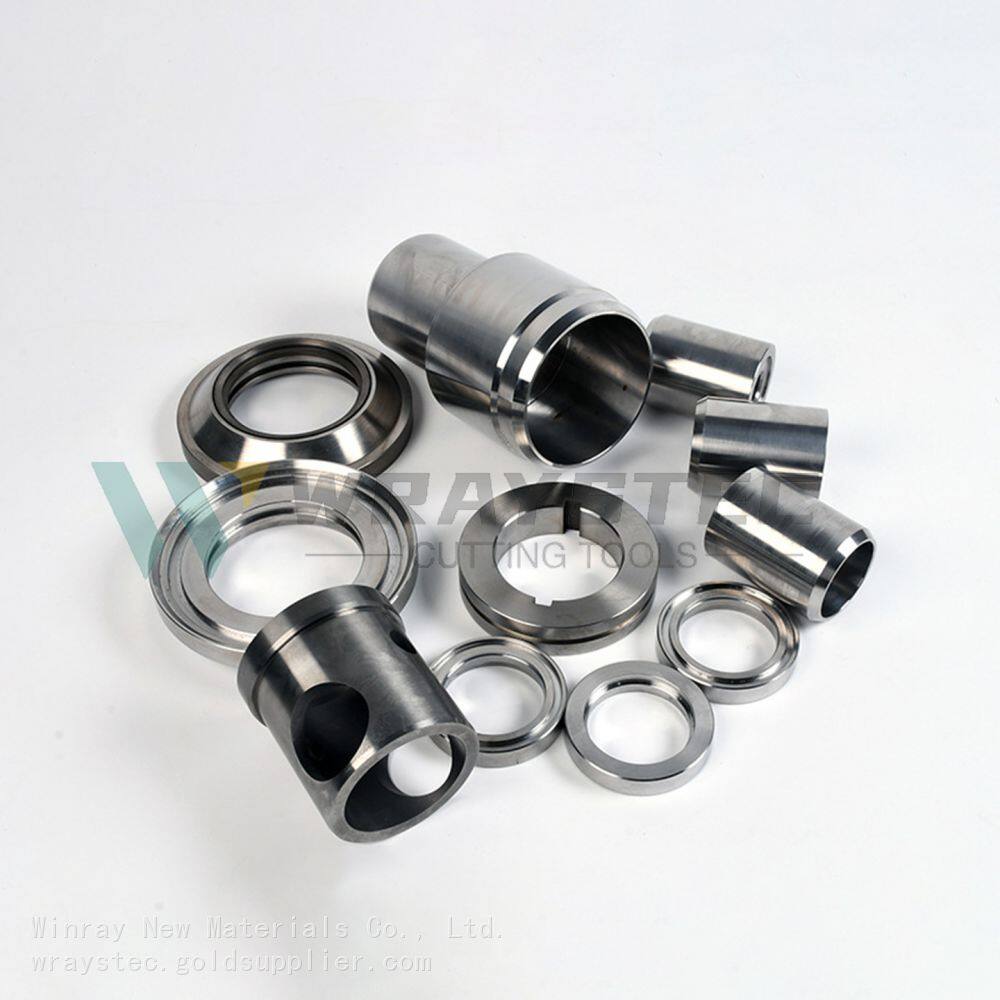

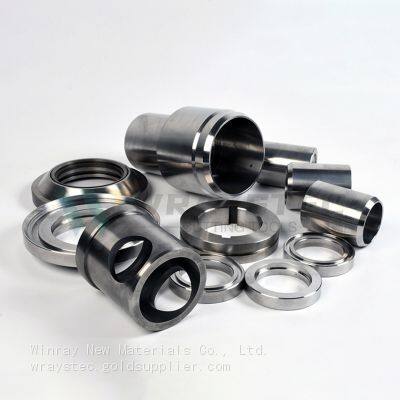

Help CenterCarbide Tungsten Steel Nozzles Petroleum Tungsten Carbide Valve Seats/valve Sleeves/sealing Rings and Custom Wear-resistant Tungsten Wear Parts
Related Products
-
Sector-shaped Woodworking Tray Blades Disposable Spiral Blades R26*R26 Semi-circular R25/26 Double-hole Tungsten Carbide BladesNegotiableMOQ: 10 Blades -
PCD/CBN Diamond Cutting Tool Inserts With 35-degree and 45-degree Non-standard Tungsten Carbide SubstratesNegotiableMOQ: 10 Blades
-
Tungsten Carbide Cutting Tool PCD Substrate DCMW070204 Cemented Carbide Substrate Diamond Inserts Non-standard Customization Available.NegotiableMOQ: 10 Blades
-
Tungsten Carbide Cutting Tool PCD Substrate SCGW09T304/02/08 With Wear-resistant and High-hardnessNegotiableMOQ: 10 Blades
-
PCD Substrate SCMW120408/02/04 High Hardness Carbide Base With 100% Carbide Raw MaterialsNegotiableMOQ: 10 Blades
In oil and gas extraction (especially in wellhead Christmas trees and fracturing equipment), the medium often contains sand, wax, and acidic and alkaline fluids, resulting in extremely harsh working conditions. Carbide valve seats and valve cores typically possess the following characteristics:
Material composition: Primarily based on tungsten carbide (WC), with cobalt (Co) added as a binder. Common grades include YG6, YG6X, YG8, and YG13. Lower cobalt content results in higher hardness but greater brittleness; finer grain size leads to better wear resistance.
Performance advantages:
High hardness: Vickers hardness can reach over 1600HV, enabling it to withstand high-pressure erosion.
Corrosion resistance: It remains stable in media containing hydrogen sulfide, carbon dioxide, and acidic substances.
Sealing performance: With precision grinding, it can achieve zero-leakage metal-to-metal hard sealing.
Manufacturing process: Powder metallurgy (mixing, pressing, sintering) + precision machining (centerless grinding, internal grinding, lapping).
Grades: YG6, YG6X, YG8, YG13, YG15 (Choose based on the requirements for wear resistance and impact resistance.)
Hardness :88.5 ～ 92.5 HRA (Equivalent to 1600–2200 HV)
Main applications: Oil wellhead equipment, fracturing trucks, mud pumps, chemical valves. (Formulations need to be adjusted for different operating conditions.)
Factory Showcase
Mainly Inserts Shapes :
Milling Inserts: APMT APKT RDMT RPMT LNMU BLMP SEKT SDMT SOMT SEKN SEEN SPKN TPKN TPKR TPMR 3PKT WNMU SNMU ONMU AOMT JDMT R390 BDMT,etc.
Turning Inserts: CNMG CCMT SNMG SCMT WNMG TNMG TCMT DCMT DNMG VNMG VBMT KNUX,etc.
Grooving Inserts: MGMN MRMN N151 N123 ZTFD TDC2 TDC3 TDC4,etc.
Inserts for aluminium: APGT APKT CCGT DCGT VCGT RCGT SCGT SEHT TCGT ZTED,etc.
Threading Inserts: 11IR 11ER 16ER 16IR 22ER 22IR,etc.
U drill Inserts: SPMT WCMX WCMT,etc.
Delivery and Shipment :
Q&A:
1.Are you trading company or manufacturer?
We are professional manufacturer of cutting tools for more than 20 years.
2.Which shipping method do you usually use?
We usually send goods by express, for big quantity, we can send by sea or by air.
3.Which payment methods do you accept?
4.Can I get a sample to check your quality?
Yes, after confirm the price, you can require sample to check the quality.
We will send you free sample and you charge the shipping cost.
5.How about the delivery time?
For stock items, the delivery time is about 3-5 days.
If run out of stock, the delivery time is about 15-20 days.
If custom items , the delivery time usually is about 30-35 days.
6.What is the minimum order quantity (MOQ)?
The regular MOQ is 10 pieces.
7.Does the packaging support customized LOGO?
Support customized LOGO on the outer box (need to reach a certain quantity)
