Help CenterCarbide Tungsten Saw Blade Teeth Carbide Saw Tips Circular Saw Blades in Welded Woodworking Cutter Heads Suitable for Aluminum and Stainless Steel
Related Products
-
YG10X Virgin Materials Carbide Rods for Endmills With High Hardness and Wear Resistent 310mm/330mmNegotiableMOQ: 10 Blades -
Tungsten Carbide Bars YG8 Hard Alloy Long Strips and Plates Available in Various Specifications and ThicknessesNegotiableMOQ: 10 Blades
-
APMT1135PDER CNC Milling Inserts for Machining Steel and Stainless Steel in R0.8 Radius.NegotiableMOQ: 10 Blades
-
K10/K20 Carbide Tips High Hardness and Wear-resistant Tungsten Tips Hardmetal PinsNegotiableMOQ: 10 Blades
-
APMT1604PDER Carbide CNC InsertsNegotiableMOQ: 10 Blades

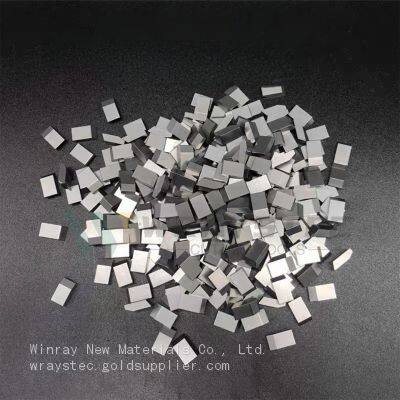

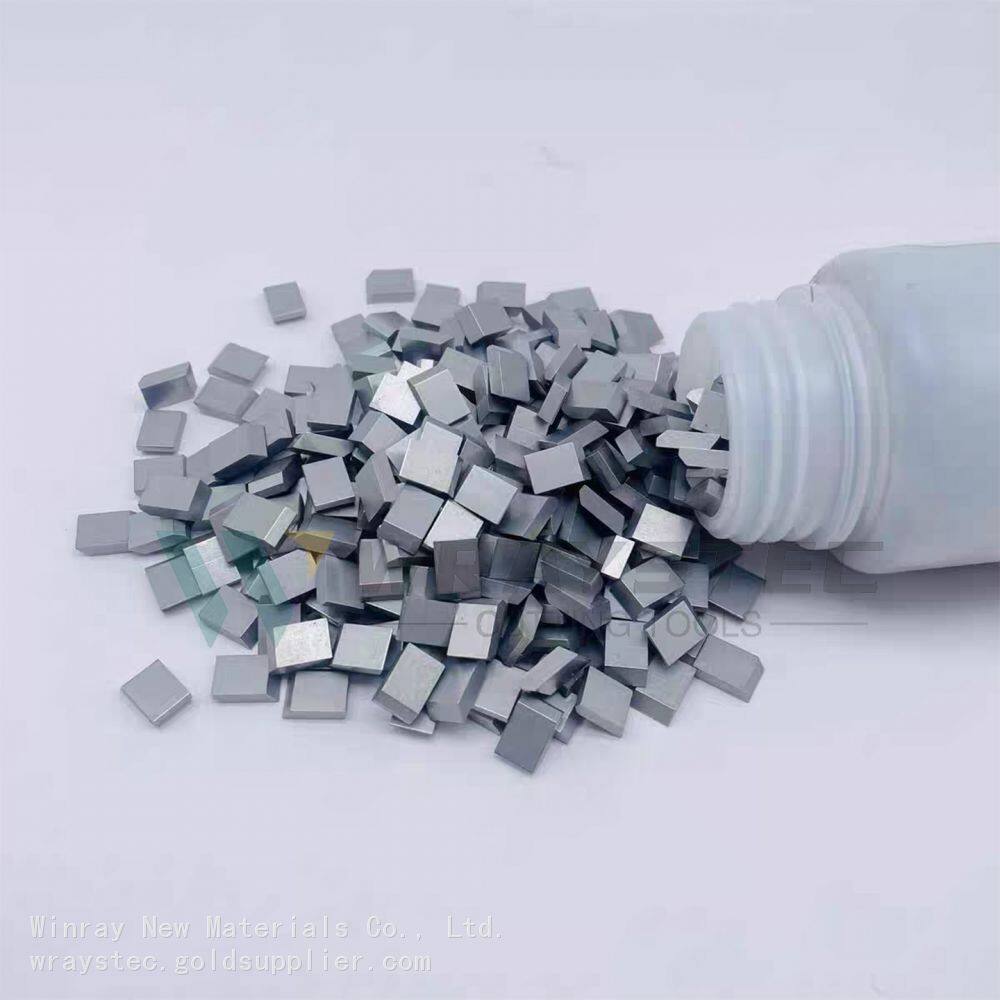

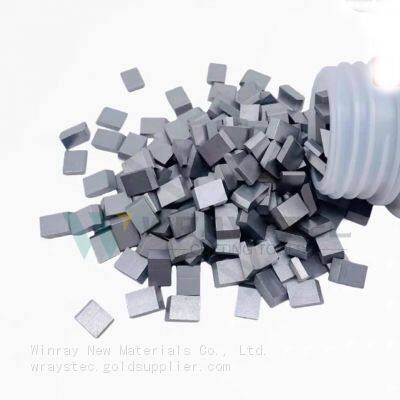

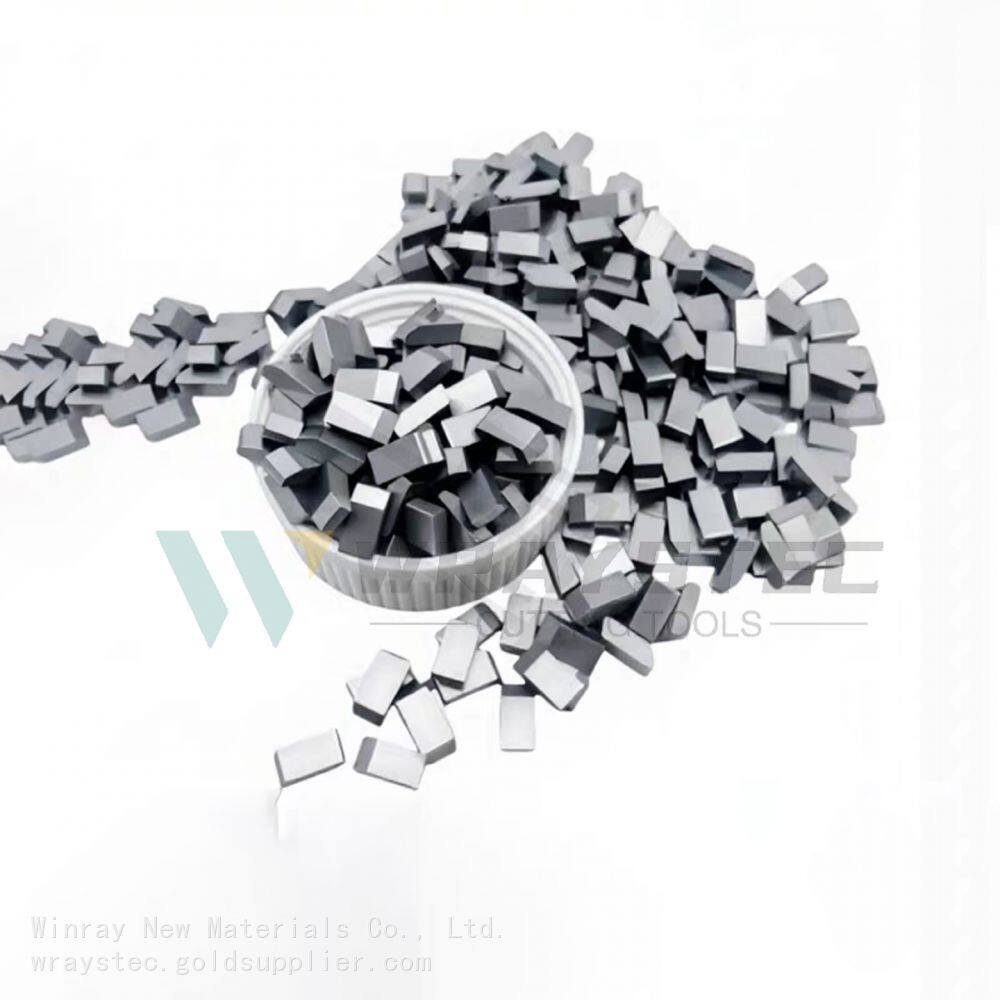

Carbide saw teeth (also often referred to as tungsten carbide saw teeth or saw blade tips) are essentially the "cutting teeth" on a circular saw blade. They are usually not used individually, but are welded to the edge of the saw blade base (usually spring steel or alloy tool steel), and are directly responsible for cutting or grooving.
As the core cutting part of "industrial teeth," they possess extremely high hardness and wear resistance. Below, I have compiled a detailed overview of their material classification, shape characteristics, and selection points:
Carbide saw teeth are mainly composed of tungsten carbide (WC) and a metal binder. Based on different application scenarios, they are mainly divided into two categories:
YG type (Tungsten-Cobalt type):
Composition: Tungsten carbide + Cobalt (Co).
Characteristics: Strong impact resistance and good toughness, but relatively lower heat resistance and wear resistance.
Applications: This is the most commonly used material for wood processing (solid wood, plywood, MDF) and non-ferrous metal (aluminum, copper) cutting. Common grades include YG6, YG8, YG11, etc. The number represents the percentage of cobalt content; the higher the cobalt content (such as YG8), the better the toughness and the less likely it is to chip.
YT type (Tungsten-Titanium-Cobalt type):
Composition: Tungsten carbide + Titanium (Ti) + Cobalt.
Characteristics: High hardness and good heat resistance, but prone to adhesive wear when cutting carbon-containing materials (such as wood).
Applications: Mainly used for cutting ferrous metals such as steel and cast iron.
Carbide saw teeth come in many specifications, usually divided into standard series and non-standard custom designs.
JX series (Woodworking specific):
These are very common standard models in the woodworking industry.
JX5 / JX15 / JX35: Usually used for cutting ordinary wood and plywood.
JX9: Often used for cutting waste wood containing iron nails; it is nickel-plated and has extremely high wear resistance.
Geometric parameters:
Usually expressed as Length (L) × Width (W) × Thickness (T).
For example: 12.5mm × 4.0mm × 2.0mm.
There are also special triangular and trapezoidal particles for specific milling or difficult-to-machine materials.
Matrix type：
Tungsten-cobalt (YG): WC + Co (Suitable for machining brittle materials such as cast iron, non-ferrous metals, plastics, and stone.)
Tungsten-titanium-cobalt (YT): WC + TiC + Co (Suitable for machining ordinary steel (long-chip steel), as TiC effectively prevents steel from sticking.)
Tungsten-titanium-tantalum(niobium)-cobalt (YW): WC + TiC + TaC/NbC + Co (General-purpose matrix, suitable for machining both steel and cast iron and non-ferrous metals, especially suitable for difficult-to-machine materials.)
Common Models of Inventory Matrix:
APGW1135/APGW160404
CCGW0301/CCGW0401/CCGW0502/CCGW0602/CCGW09T3/CCGW1204CNGA0903/CNGA1204/CNGA1606
CNGW0602/CNGW09T3
CPGW0502/CPGW0602
DCGW0702/DCGW11T3DNGA1104/DNGA1504/DNGA1506/DNGA1906DNGW0702/DNGW11T3
SNGA0903/SNGA1204
SNGN0903/SNGN1204
SNGW1203/SNGW1204
SPGN0903/SPGN1203
SCGW0602/SCGW0603/SCGW0903/SCGW09T3/SCGW1204
SPGW0602/SPGW0603/SPGW0903/SPGW1203/SPGW1204
TBGW0601/TBGW0602/TBGW0802
TCGN1103/TCGN1603
TCGW0601/TCGW0602/TCGW06T1/TCGW0802/TCGW0902/TCGW1102/TCGW1103/TCGW1604/TCGW16T3
TNGA1103/TNGA1604/TNGA2204TNGW0802/TNGW0902/TNGW1103/TNGW1604/TNGW16T3TPGN0902/TPGN1102/TPGN1103/TPGN1303/TPGN1603/TPGN2204TPGW0601/TPGW0602/TPGW0802/TPGW0902/TPGW1102/TPGW1103/TPGW16T3VBGW1102/VBGW1103/VBGW1604VCGW0702/VCGW0802/VCGW1102/VCGW1103/VCGW1604/VCGW2205WBGW0601/WBGW0802WNGA0604/WNGA0804
Materials:Solid carbide
Package:10piece/box
Application:PCD tools
Lead time : in stock .
Factory Showcase
Mainly Inserts Shapes :
Milling Inserts: APMT APKT RDMT RPMT LNMU BLMP SEKT SDMT SOMT SEKN SEEN SPKN TPKN TPKR TPMR 3PKT WNMU SNMU ONMU AOMT JDMT R390 BDMT,etc.
Turning Inserts: CNMG CCMT SNMG SCMT WNMG TNMG TCMT DCMT DNMG VNMG VBMT KNUX,etc.
Grooving Inserts: MGMN MRMN N151 N123 ZTFD TDC2 TDC3 TDC4,etc.
Inserts for aluminium: APGT APKT CCGT DCGT VCGT RCGT SCGT SEHT TCGT ZTED,etc.
Threading Inserts: 11IR 11ER 16ER 16IR 22ER 22IR,etc.
U drill Inserts: SPMT WCMX WCMT,etc.
Delivery and Shipment :
Q&A:
1.Are you trading company or manufacturer?
We are professional manufacturer of cutting tools for more than 20 years.
2.Which shipping method do you usually use?
We usually send goods by express, for big quantity, we can send by sea or by air.
3.Which payment methods do you accept?
4.Can I get a sample to check your quality?
Yes, after confirm the price, you can require sample to check the quality.
We will send you free sample and you charge the shipping cost.
5.How about the delivery time?
For stock items, the delivery time is about 3-5 days.
If run out of stock, the delivery time is about 15-20 days.
If custom items , the delivery time usually is about 30-35 days.
6.What is the minimum order quantity (MOQ)?
The regular MOQ is 10 pieces.
7.Does the packaging support customized LOGO?
Support customized LOGO on the outer box (need to reach a certain quantity)
