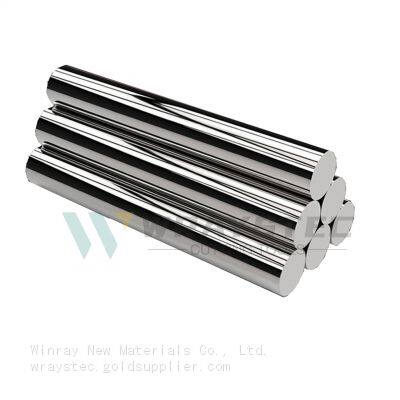

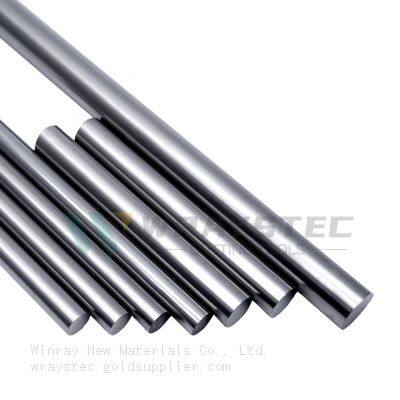

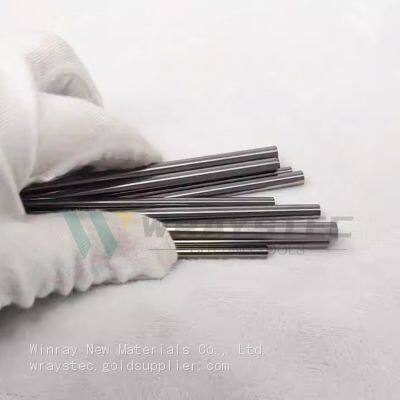

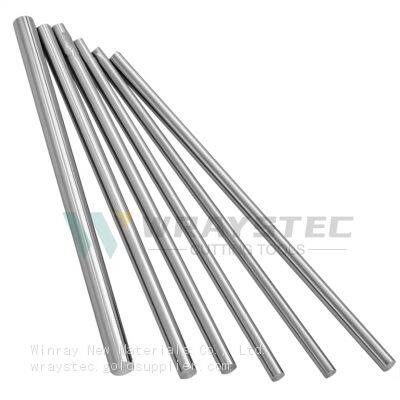

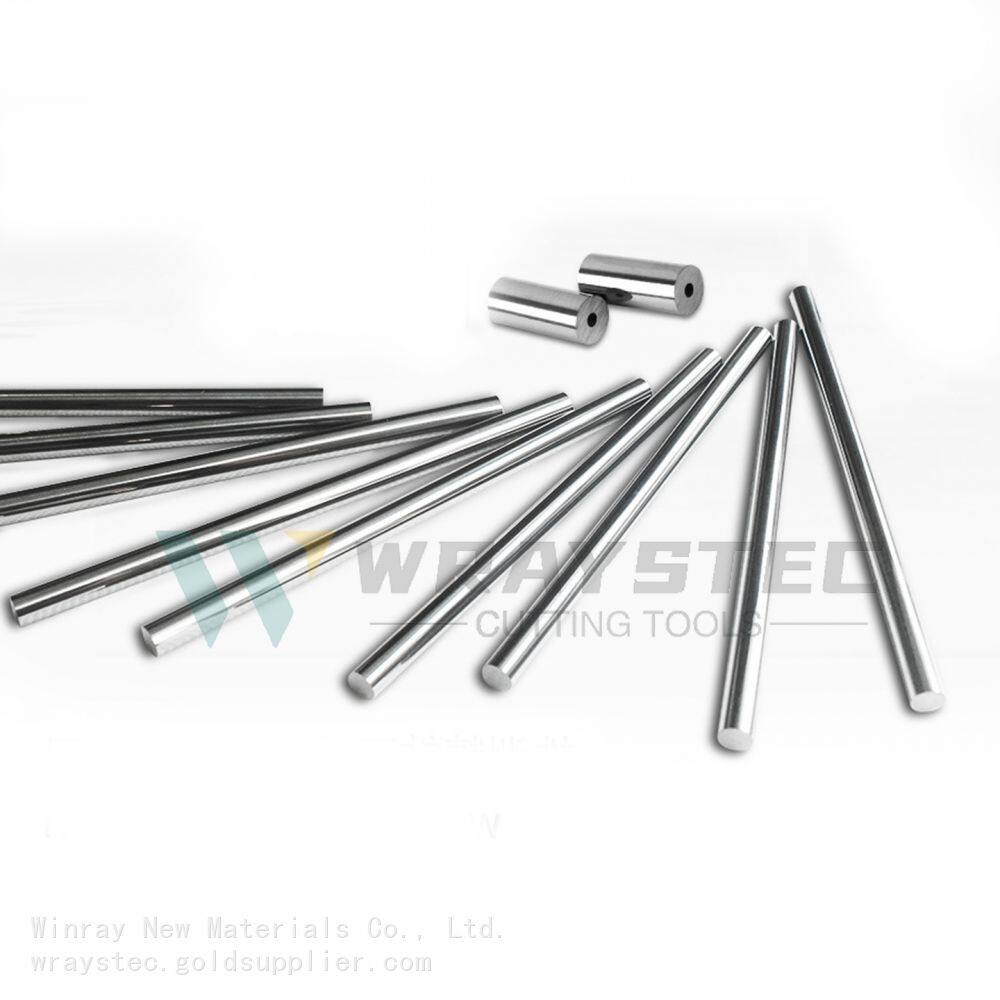

YG10X Virgin Materials Carbide Rods for Endmills With High Hardness and Wear Resistent 310mm/330mm

Cemented carbide rods, also known as tungsten carbide rods, are high-performance materials manufactured using powder metallurgy. They are primarily composed of tungsten carbide (WC), with binding metals such as cobalt (Co) and nickel (Ni), and are produced through pressing and sintering.

This material is often referred to as the "teeth of industry" due to its extremely high hardness and wear resistance, and is widely used in the manufacture of cutting tools, wear-resistant parts, and molds.

Carbide rods have replaced high-speed steel as the mainstream cutting material primarily due to the following superior characteristics:

1) Extremely high hardness and wear resistance: Its hardness can reach HRA 86-93.5 (approximately HRC 69-81), second only to diamond. This means that it experiences minimal wear when processing hard materials, resulting in a long service life.

2) Excellent hot hardness: This is one of its most powerful characteristics. While ordinary steel softens at high temperatures, carbide maintains a very high hardness (such as 60 HRC) even at temperatures of 500℃ or even 900-1000℃, making it ideal for high-speed cutting.

3) Good corrosion resistance: It has excellent resistance to most acids, alkalis, and solvents, and its performance is very stable.

4) High strength and toughness: Although it is very hard, it also possesses a certain degree of bending strength and compressive strength, enabling it to withstand the impact forces during processing (of course, compared to high-speed steel, it is more brittle and susceptible to severe impact).

| Grade | Main Components (Approximate) | Density (g/cm³) | Hardness (HRA) | Typical Applications |

| YG6 | WC 94% / Co 6% | 14.85～15.05 | ≥ 90.0 | Suitable for machining ordinary steel and cast iron, with good wear resistance |

| YG8 | WC 92% / Co 8% | 14.65～14.85 | ≥ 89.5 | Highly versatile, suitable for machining with high impact, such as stainless steel |

| YL10.2 | WC ~90% / Co 10.2% | 14.4～14.6 | ≥ 92.2 | Commonly used in the manufacture of drill bits and end mills, with excellent wear resistance |

Matrix type：

Tungsten-cobalt (YG): WC + Co (Suitable for machining brittle materials such as cast iron, non-ferrous metals, plastics, and stone.)

Tungsten-titanium-cobalt (YT): WC + TiC + Co (Suitable for machining ordinary steel (long-chip steel), as TiC effectively prevents steel from sticking.)

Tungsten-titanium-tantalum(niobium)-cobalt (YW): WC + TiC + TaC/NbC + Co (General-purpose matrix, suitable for machining both steel and cast iron and non-ferrous metals, especially suitable for difficult-to-machine materials.)

Common Models of Inventory Matrix:

APGW1135/APGW160404
CCGW0301/CCGW0401/CCGW0502/CCGW0602/CCGW09T3/CCGW1204CNGA0903/CNGA1204/CNGA1606
CNGW0602/CNGW09T3
CPGW0502/CPGW0602
DCGW0702/DCGW11T3DNGA1104/DNGA1504/DNGA1506/DNGA1906DNGW0702/DNGW11T3
SNGA0903/SNGA1204
SNGN0903/SNGN1204
SNGW1203/SNGW1204
SPGN0903/SPGN1203
SCGW0602/SCGW0603/SCGW0903/SCGW09T3/SCGW1204
SPGW0602/SPGW0603/SPGW0903/SPGW1203/SPGW1204
TBGW0601/TBGW0602/TBGW0802
TCGN1103/TCGN1603
TCGW0601/TCGW0602/TCGW06T1/TCGW0802/TCGW0902/TCGW1102/TCGW1103/TCGW1604/TCGW16T3
TNGA1103/TNGA1604/TNGA2204TNGW0802/TNGW0902/TNGW1103/TNGW1604/TNGW16T3TPGN0902/TPGN1102/TPGN1103/TPGN1303/TPGN1603/TPGN2204TPGW0601/TPGW0602/TPGW0802/TPGW0902/TPGW1102/TPGW1103/TPGW16T3VBGW1102/VBGW1103/VBGW1604VCGW0702/VCGW0802/VCGW1102/VCGW1103/VCGW1604/VCGW2205WBGW0601/WBGW0802WNGA0604/WNGA0804
Materials:Solid carbide
Package:10piece/box
Application:PCD tools
Lead time : in stock .

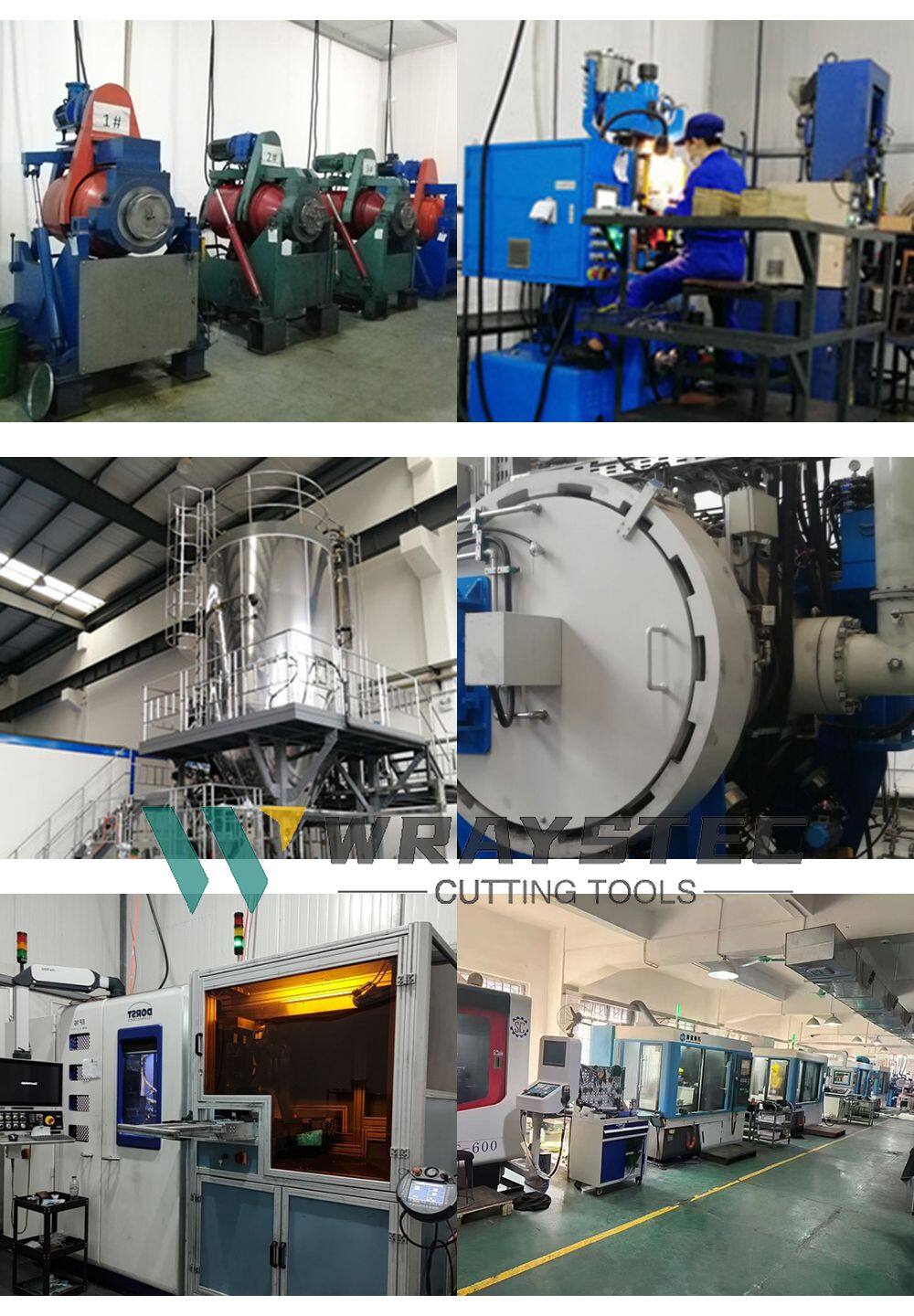

Factory Showcase

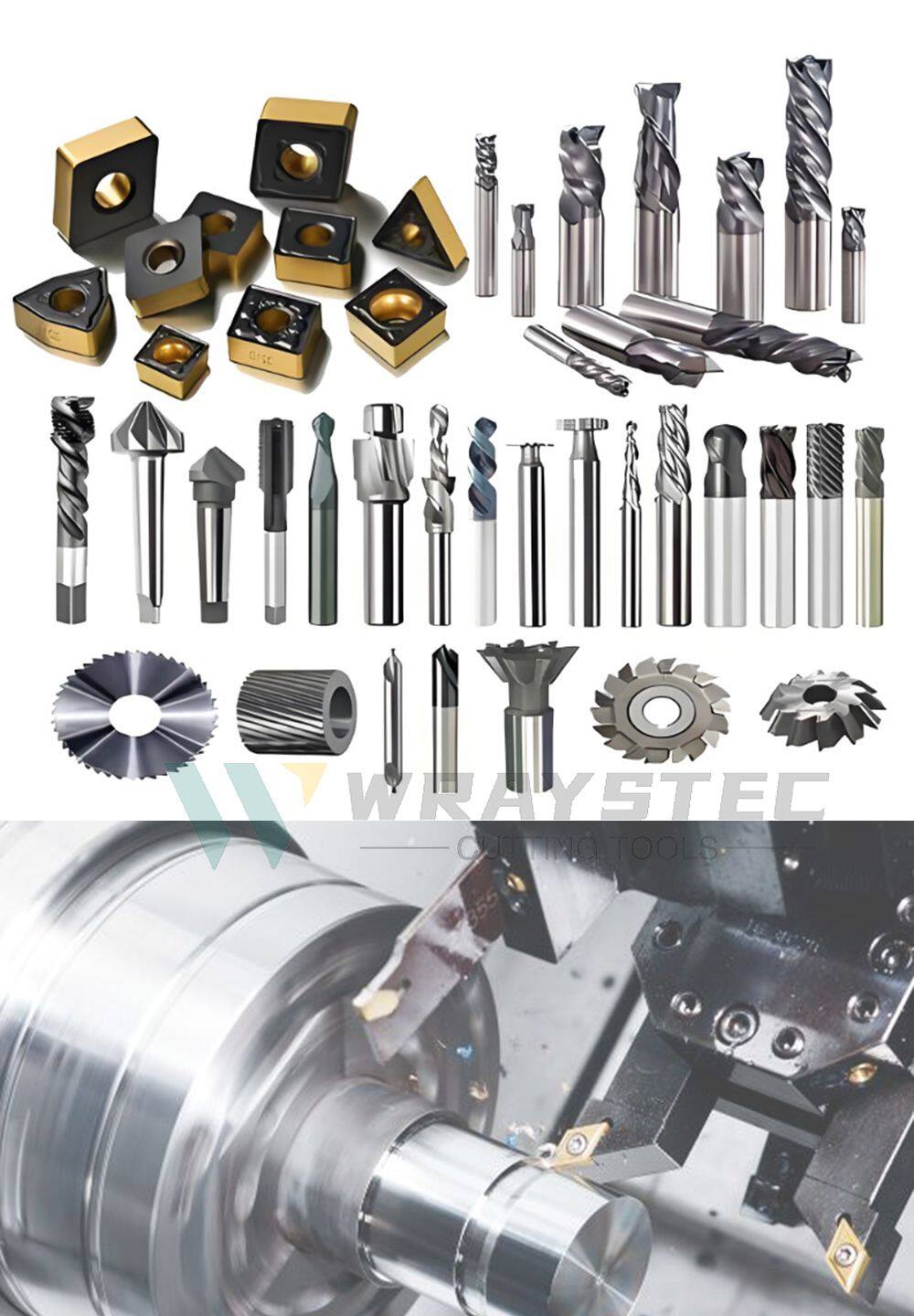

Mainly Inserts Shapes :

Milling Inserts: APMT APKT RDMT RPMT LNMU BLMP SEKT SDMT SOMT SEKN SEEN SPKN TPKN TPKR TPMR 3PKT WNMU SNMU ONMU AOMT JDMT R390 BDMT,etc.

Turning Inserts: CNMG CCMT SNMG SCMT WNMG TNMG TCMT DCMT DNMG VNMG VBMT KNUX,etc.

Grooving Inserts: MGMN MRMN N151 N123 ZTFD TDC2 TDC3 TDC4,etc.

Inserts for aluminium: APGT APKT CCGT DCGT VCGT RCGT SCGT SEHT TCGT ZTED,etc.

Threading Inserts: 11IR 11ER 16ER 16IR 22ER 22IR,etc.

U drill Inserts: SPMT WCMX WCMT,etc.

Delivery and Shipment :

Q&A:

1.Are you trading company or manufacturer?

We are professional manufacturer of cutting tools for more than 20 years.

2.Which shipping method do you usually use?

We usually send goods by express, for big quantity, we can send by sea or by air.

3.Which payment methods do you accept?

4.Can I get a sample to check your quality?

Yes, after confirm the price, you can require sample to check the quality.

We will send you free sample and you charge the shipping cost.

5.How about the delivery time?

For stock items, the delivery time is about 3-5 days.

If run out of stock, the delivery time is about 15-20 days.

If custom items , the delivery time usually is about 30-35 days.

6.What is the minimum order quantity (MOQ)?

The regular MOQ is 10 pieces.

7.Does the packaging support customized LOGO?

Support customized LOGO on the outer box (need to reach a certain quantity)
