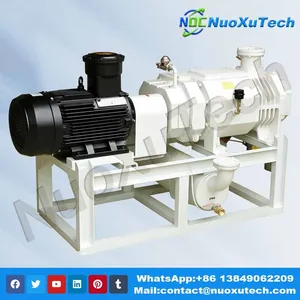

LG dry screw vacuum pumps can manage both condensable vapors and some solids with no residue. They offer a number of advantages over the traditional vacuum pump designs. There’ s is ” NO OIL NO WATER” in contact with the process vapors, so therefore they are considered environmentally friendly.
Specification|
Model |
Pumping Speed 50/60 (Hz) |
Ultimate Pressure 50/60 (Hz) |
Power 50/60 (Hz) |
Speed 50/60 (Hz) |
Inlet | Outlet | Gear Cavity Volume | Cooling Water Volume | Noise | |||
| m3/hr | CFM | L/s | Torr | Pa | KW | RPM | mm | mm | L | L/min | dBA | |
| LG30 | 108/ 144 |
64/ 85 |
30/ 36 |
0.0375/ 0.0075 | 5/1 | 4/5.5 | 2900/ 3550 |
50 | 65 | 0.8 | 10 | ≤76 |
| LG50 | 180/ 216 |
105/ 127 | 50/ 60 |
5.5/7.5 | 65 | 40 | 0.8 | 12 | ≤76 | |||
| LG70 | 252/ 300 |
148/ 176 | 70/ 84 |
7.5/11 | 80 | 40 | 1.3 | 12 | ≤76 | |||
| LG110 | 396/ 480 |
232/ 282 |
110/ 132 | 11/15 | 100 | 65 | 1.4 | 15 | ≤78 | |||
| LG150 | 540/ 650 |
317/ 382 |
150/ 180 | 15/18.5 | 150 | 65 | 2 | 18 | ≤78 | |||
| LG220 | 792/ 960 |
465/ 564 |
220/ 264 |
15/22 | 150 | 75 | 2 | 18 | ≤80 | |||
| LG260 | 950/ 1140 |
560/ 670 |
260/ 312 |
22/30 | 150 | 120 | 3.4 | 20 | ≤80 | |||
| LG300 | 1080/ 1290 | 635/ 758 |
300/ 360 |
30/37 | 150 | 80 | 3.4 | 25 | ≤80 | |||
Oil & Water-Free Operation:
Clean vacuum achieved through dry running operation, eliminating the risk of oil or water contamination in the process.
Ultimate Vacuum Performance:
Capable of reaching ultimate vacuum levels as low as 2 Pa (50 Hz) and 1 Pa (60 Hz), ensuring efficient vapor extraction and processing.
Quiet Operation:
Equipped with special silencers, dry screw vacuum pumps operate quietly, minimizing noise levels and promoting a conducive work environment.
Long Pump Life:
Non-contact design between the screw and casing prevents metal-to-metal contact, ensuring prolonged pump lifespan and reliable performance.
Simple Maintenance:
With a straightforward design, dry screw vacuum pumps offer easy maintenance procedures, reducing downtime and optimizing productivity.
LG dry screw vacuum pumps find versatile applications across various industries, including:
Chemical & Pharmaceutical Processing
Solvent Recovery
Crystallization
Vapor Coating
Petroleum Processing
This is our Roots screw vacuum unit’s application in chemical plant sites.
The unit is mainly composed of Roots vacuum pump, screw vacuum pump, muffler and so on. It belongs to dry vacuum pump, which has no oil and gas pollution in the contact part of the system, and is easy to be centralized treated or recycled by the exhaust body.
Elevate your vacuum processes with the advanced features and superior performance of dry screw vacuum pumps. Discover the benefits of clean, efficient, and reliable vacuum operations tailored to meet the demands of modern industrial applications.
