Molecular Pump series molecular pump can obtain clean and ultra-high vacuum pressure without cold trap and oil baffle. We can provide three types of molecular pump with distinguished structure as, hybrid molecular pump, turbo molecular pump, and grease lubricated hybrid molecular pump.
| Model | unit | FB-600 | FB-1200 | FB-1600 | FB-3600 | ||||
| High vacuum flange | mm | 150CF | 160ISO-K | 200CF | 200ISO-K | 250CF | 250ISO-K | 400 ISO-K | |
| Fore pipe flange | mm | 40 KF | 40 KF | 50 KF | 100 ISO-K | ||||
| Pumping speed | L/s | 600 | 1200 | 1600 | 3600 | ||||
| Compression ration | N2 | >109 | >109 | >109 | >108 | ||||
| H2 | >8×103 | >1×104 | >1×104 | >6×102 | |||||
| Ultimate pressure | Pa | ||||||||
| Rotary Speed | rpm | 24000 | 27000 | 27000 | 13500 | ||||
| Vibration value | µm | ≤0.1 | ≤0.1 | ≤0.15 | ≤0.15 | ||||
| Start-up time | min | ||||||||
| Fore pump speed | L/s | 4-8 | 8-15 | 15 | 30-70 | ||||
| Cooling method | / | Air / water | Air / water | Air / water | water | ||||
| Ambient temperature(Air) | ℃ | ≤20 | ≤20 | ≤20 | 5-40 | ||||
| Cooling water | temperature | ℃ | ≤25 | ≤25 | ≤20 | ≤20 | |||
| consumption | L/min | 2 | 2 | 1-2 | 1 | ||||
| Bake-up temperature | ℃ | ||||||||
| Heater | Power | Kw | / | ||||||
| Input voltage | V | AC220 | AC220 | AC220 | / | ||||
| Mounting position | / | Vertical ±5° | Vertical ±5° | Vertical ±5° | Vertical±5° | ||||

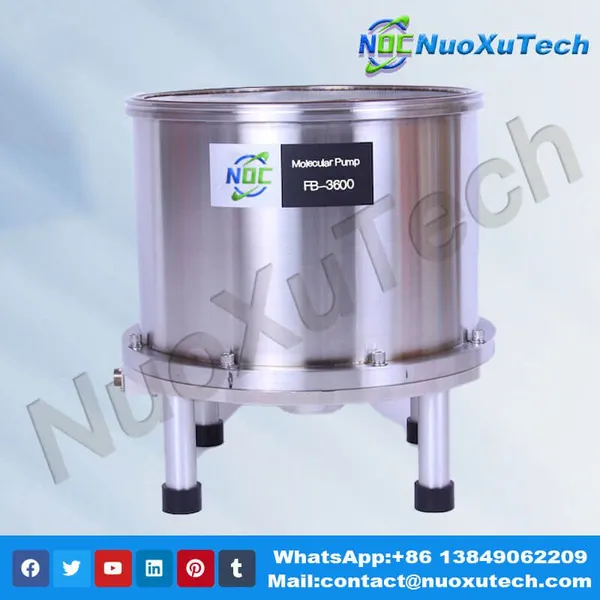

| Weight | Kg | 25 | 29 | 31 | 100 | ||||
These advanced pumping solutions find widespread applications across various industries, including:
Photovoltaic
Lighting
Aerospace
Semiconductor
Energy
Military
Laser Technology
Home Electronics
Materials Science
Automobile Manufacturing
Experience the unmatched performance and versatility of these pumping solutions, designed to meet the demanding requirements of diverse vacuum technology fields with precision and efficiency.
