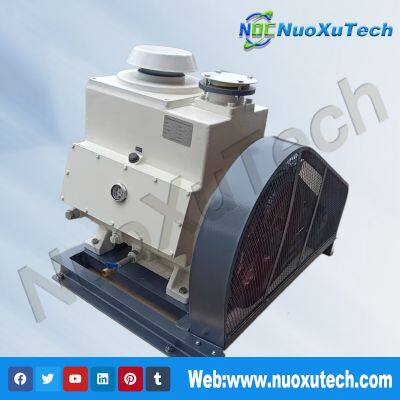

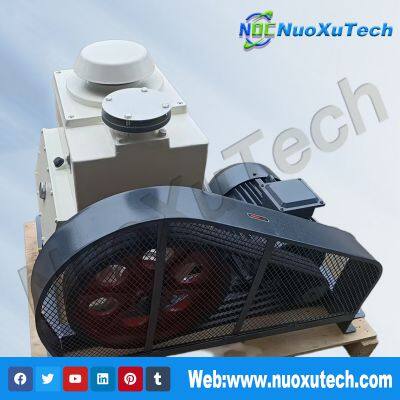

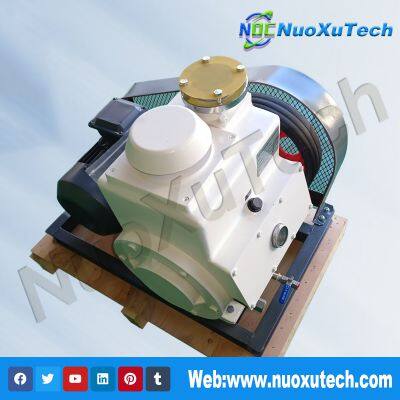

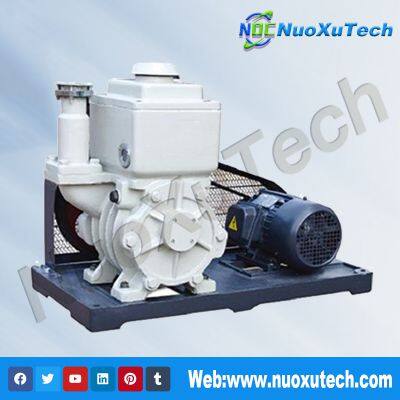

2X-a Series Two Stage Vacuum Pump With CE Certification

2X-a Series Two Stage Vacuum Pump With CE Certification photo-1
2X-a Series Two Stage Vacuum Pump With CE Certification photo-2
2X-a Series Two Stage Vacuum Pump With CE Certification photo-3
2X-a Series Two Stage Vacuum Pump With CE Certification photo-4
US$ 499 - 1499 MOQ: 1 Set
Key Specifications
Get Latest Price
Warranty:
1 year
Structure:
Other, Rotary Vane
After-sales Service:
online
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
15 days
Warranty 1 year
Structure Other, Rotary Vane
After-sales Service online
Oil or Not Oil
Vacuum Degree Vacuum
Work Function Fore Pump
Working Conditions Other, Oil
Transport Package Wooden Cases
Trademark NUOXU
Origin China

The 2X-A Series Two Stage Rotary Vane Vacuum Pump is an oil-sealed, high-performance vacuum pump designed for applications requiring a deeper ultimate vacuum and stable performance. With its dual-stage compression system, the 2X-A pump delivers high pumping efficiency, low noise, and reliable operation in continuous use.

Built with precision-machined vanes and durable materials, the 2X-A series is capable of handling dry or small amounts of vapor-laden gases. It is widely used in laboratories, vacuum coating, refrigeration servicing, vacuum packaging, medical devices, and research equipment.

The compact structure, efficient oil circulation, and simple maintenance make this pump an ideal choice for industrial and scientific vacuum systems that demand consistent and clean vacuum performance.

Specification/Model2X-4A2X-8A2X-15A2X-30A2X-70A
Pumping speed(L/s)48153070
Pumping speed(m 3/h)142954108252
Ultimate pressure


(Pa)

Partial pressure6×10-²(5×10-4Torr)
Total pressure2.66(2×10-2Torr)
Rotary speed(r/min)450320320450420
Motor power(Kw)0.551.12.235.5
Working voltage(V)380380380380380
Cooling ModeNatural cooling                                        Water cooling
Inlet Diam(mm)I.D.2540506580
O.D.30508085100



Dimensions(mm)

Length540790790810910
Width335430530480650
Height380540540560700
Oil capacity(L)1.02.02.83.04.2
Recommend solenoid valveDDC-JQ25DDC-JQ40DDC-JQ50DDC-JQ65DDC-JQ80
Noise (dB A)6570707075
Weight(kg)60158202230480
