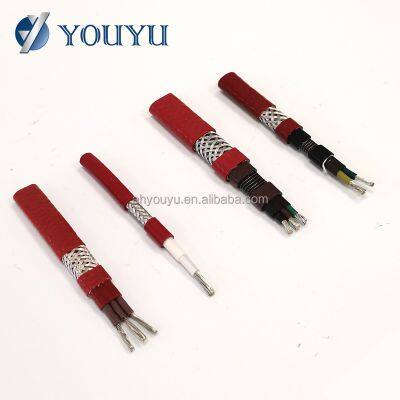

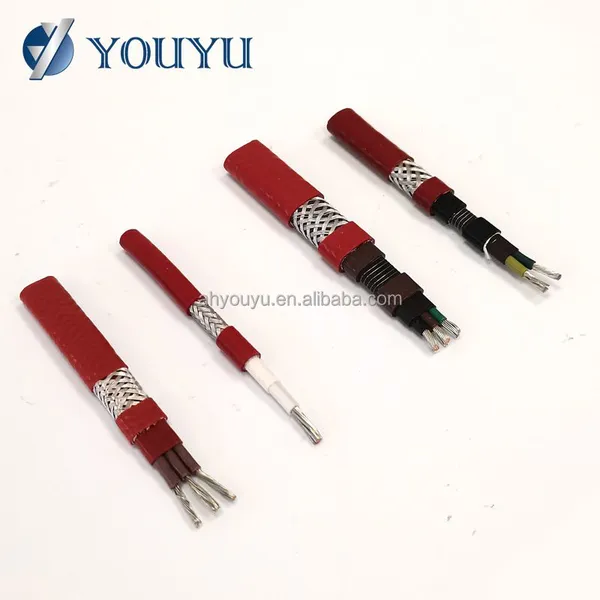

Constant Wattage Heating Cable Twin Conductor Water Pipe Electric Heated Floor Cable
US$ 2 - 5
MOQ: 10 Meters
Key Specifications
Get Latest Price
Application:
Underground
Insulation Material:
Rubber
Conductor Material:
Copper
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
High Temperature 150 Degree Pipelines Heating Cable With Copper Conductor & FEP Insulation Constant Wattage Heat CableUS$ 2 - 3.5MOQ: 1 Meter -
Two-Core RED Plastic Drum Underground Electric Heating Cable Constant-Wattage Underfloor Pipe Heating CableUS$ 2 - 4MOQ: 1 Meter
-
Constant Wattage Electric Heating Cable Constant Heat Cable Constant Heating TapeUS$ 1.5 - 5MOQ: 10 Meters
-
Twin Conductor Electric Parallel Constant Power Heating Cable for Freeze ProtectionUS$ 1.5 - 5MOQ: 10 Meters
-
105 Degree Constant Wattage Heating Cables Heat Resistance CableUS$ 1.5 - 5MOQ: 10 Meters
Application
Underground
Insulation Material
Rubber
Conductor Material
Copper
Jacket
RUBBER
Number of Conductors
2
Brand Name
youyu
Place of Origin
Anhui, China
Length
100m
SUMMARY
Constant Wattage Heating Cable is ideally suited for applications where a particular watt density is required at all times.They
are flexible and can be cut-to-length in the field.Although not suited for
overlapping,its constant output makes it an ideal choice for higher temperature applications where higher
watt densities are reauiredConstant-wattae heatina cable provides precise and constant temperatures
up to 260cldeal for a wide ranae of applications. our heatina cables ensure power remains constant
reaardless of temperature! Constant Wattaae heating cables are suitable for use in harsh corrosive and
hazardous area applications
Constant Wattage Heating Cable is ideally suited for applications where a particular watt density is required at all times.They
are flexible and can be cut-to-length in the field.Although not suited for
overlapping,its constant output makes it an ideal choice for higher temperature applications where higher
watt densities are reauiredConstant-wattae heatina cable provides precise and constant temperatures
up to 260cldeal for a wide ranae of applications. our heatina cables ensure power remains constant
reaardless of temperature! Constant Wattaae heating cables are suitable for use in harsh corrosive and
hazardous area applications
Technical Data Sheet of Two-core Parallel Type Constant Wattage Heating Cable (220V) |
||||||||||
Two-core Parallel Type |
Rated
Voltage
(V)
|
Rated
Power
(w/m)
|
Max Application
Length(m)
|
Max Maintain Temperatue of Fluid (℃) |
Max Tolerance Temperature(℃) |
|||||
RDY2Q-J3-10 |
220 |
10 |
200 |
50 |
205 |
|||||
RDY2Q-J3-20 |
220 |
20 |
120 |
140 |
205 |
|||||
RDY2Q-J3-30 |
220 |
30 |
100 |
125 |
205 |
|||||
RDY2Q-J3-40 |
220 |
40 |
100 |
100 |
205 |
|||||
Technical Data Sheet of Two-core Parallel Type Constant Wattage Heating Cable (380V) |
||||||||||
Two-core Parallel Type |
Rated
Voltage (V) |
Rated
Power
(w/m)
|
Max Application
Length(m)
|
Max Maintain Temperatue of Fluid (℃) |
Max Tolerance Temperature(℃) |
|||||
RDY2Q-J3-20-380 |
380 |
20 |
300 |
130 |
205 |
|||||
RDY2Q-J3-30-380 |
380 |
30 |
230 |
125 |
205 |
|||||
RDY2Q-J3-40-380 |
380 |
40 |
185 |
100 |
205 |
|||||
Technical Data Sheet of Three-core Parallel Type Constant Wattage Heating Cable (380V) |
||||||||||
Three-core Parallel Type |
Rated
Voltage (V) |
Rated Power (w/m) |
Max Application
Length(m)
|
Max Maintain Temperatue of Fluid (℃) |
Max Tolerance Temperature(℃) |
|||||
RDY3Q-J3-20 |
380 |
20 |
390 |
150 |
205 |
|||||
RDY3Q-J3-30 |
380 |
30 |
320 |
140 |
205 |
|||||
RDY3Q-J3-40 |
380 |
40 |
300 |
130 |
205 |
|||||
RDY3Q-J3-50 |
380 |
50 |
250 |
120 |
205 |
|||||
Technical Data Sheet of Two-core Parallel Type Constant Wattage Heating Cable (220/380V) |
||||||||||
Two-core Parallel Type |
Rated
Voltage (V) |
Rated Power (w/m) |
Max Application
Length(m)
|
Max Maintain Temperatue of Fluid (℃) |
Max Tolerance Temperature(℃) |
|||||
RDY2Q-J4-40 |
220/380 |
40 |
120 |
200 |
260 |
|||||
RDY2Q-J4-50 |
220/380 |
50 |
110 |
180 |
260 |
|||||
RDY2Q-J4-60 |
220/380 |
60 |
100 |
160 |
260 |
|||||
1. Are you manufacturer or trading company?
We are professional heating cable manufacturer founded in 2012, located in Wuhu city, Anhui Province, China. Welcome to visit our factory!
2. What's the Minimum Order Quantity?
There is no MOQ requirement for standard product.
And the MOQ for customized product is 10pcs
And the MOQ for customized product is 10pcs
3. What is your delivery time?
Normally within 7~15 days, The specific delivery time is determined according to the product model and quantity you ordered.
4. What's the payment term?
T/T, L/C, Western Union, Paypal, Alibaba secure payment, D/P.
5. Can you provide samples for testing before placing orders ?
Yes, we can provide samples to check quality and testing its performance.
6. What is warranty of your product?
25 years free warranty for underfloor heating cable & mat
7. Can you do OEM and ODM for us?
Yes, we can provide professional OEM and ODM services. We have an experienced R&D technical team that can provide you with standard and customized products, and can also put your logo on the heating mat.
8.If your heating cable eco-friendly?
Our heating mat is all in accordance with ROHS, you can buy and use freely.
9.Do you offer or supply room thermostat compatible to your electric underfloor heating system?
Yes, we have mechanical, LCD digital display, WIFI and other types of thermostats for your choice.
10.Which floor decoration materials are suitable for installing the underfloor heating system?
Tile, marble, wood floor, laminate, vinyl board, concrete and other floor decoration materials.
11.Does each room require its own thermostat?
We recommend that each room be equipped with a thermostat to control the temperature independently,
which will save energy and make temperature control simpler and more accurate.
