Honeywell TK-AUDIO AS-2500 Pure post-stage broadcast power amplifier 660W
Function description
(1) It is equipped with RCA socket and XLR socket, which is very suitable for large, medium and small public broadcasting
(2) It is equipped with 100V, 70V constant voltage output and 4~16Ω constant resistance output
(3) The output volume is adjustable
(4) 5-unit LED working status display: power supply "POWER", signal "SINGNAL", elimination "CLIP", protection "PROT", high temperature "TEMP", easy to observe the working condition of the machine
(5) It has perfect output short-circuit protection and over-temperature protection functions
(6) The temperature control of the cooling fan starts
Chinese performance specifications:
Device model AS-2500
Rated output power 660W
Output Mode 4-16 ohms (Ω) constant impedance output
660W 70V(7.4 ohms(Ω)) 100V(15.1 ohms(Ω)) constant voltage output
Line input <1V, unbalanced
Line output <1V, unbalanced
Frequency response 60 Hz ~ 15k Hz (± 3 dB)
Nonlinear distortion THD <0.5% at 1kHz, 1/3 of the rated output power, total harmonic distortion at full power rated output≤2% signal-to-noise ratio >75 dB S/N
Damping factor 200
Voltage rise rate 15V/uS
Output regulation <3 dB from signalless static to full capacity
Function control One volume adjustment and one power switch
Cooling method: DC 12V FAN temperature control air cooling method
Indicators Power: 'POWER', Elimination: 'CLIP', Signal: 'SINGNAL', Protection: 'PROT',
High temperature: 'TEMP'
Protect AC FUSE×15A
AC FUSE×1, short circuit load, excessive temperature
Power cord (3×1.5 mm2) ×1.5M (standard)
Power Supply AC 220V ± 10% 50-60Hz
Power consumption is 1300W
Machine size 89(H)×483(W)×366(D) mm
Box size 185(H)×520(W)×435(D) mm
Net weight 19.74kg
Gross weight 21.36kg
Send Inquiry to This Supplier
You May Also Like
-
Honeywell TK-AUDIO TKH-P10A TKH-P30A Horn Speaker ABS/IP66NegotiableMOQ: 3000 Cases
-
Honeywell Integrated Public Address / SpeakersNegotiableMOQ: 1 Combo
-

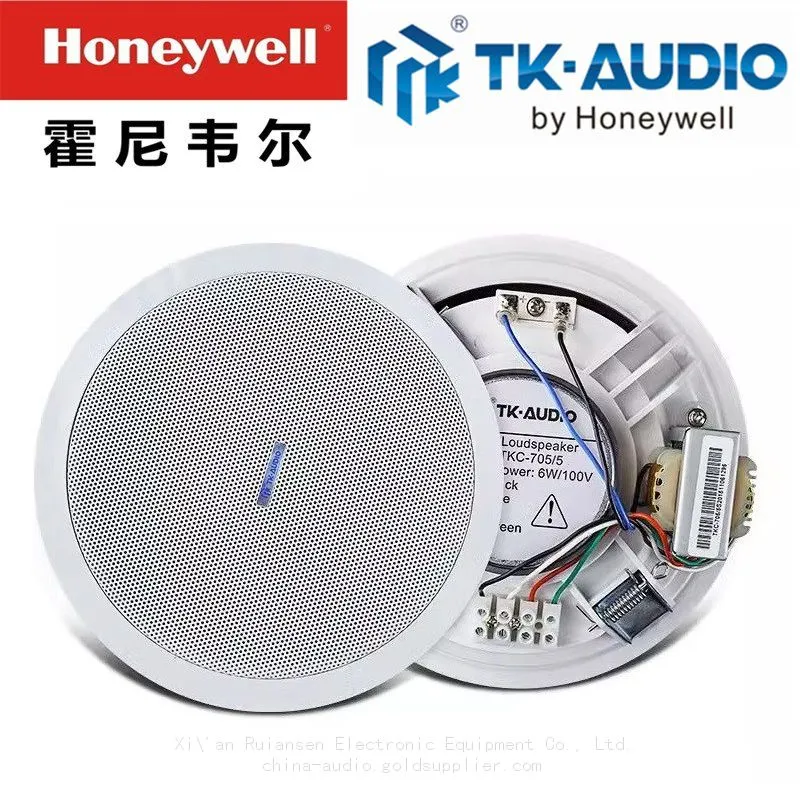

Honeywell TKC-705/5 Ceiling-mounted Speaker 3/6WNegotiableMOQ: 12 Cases
-
