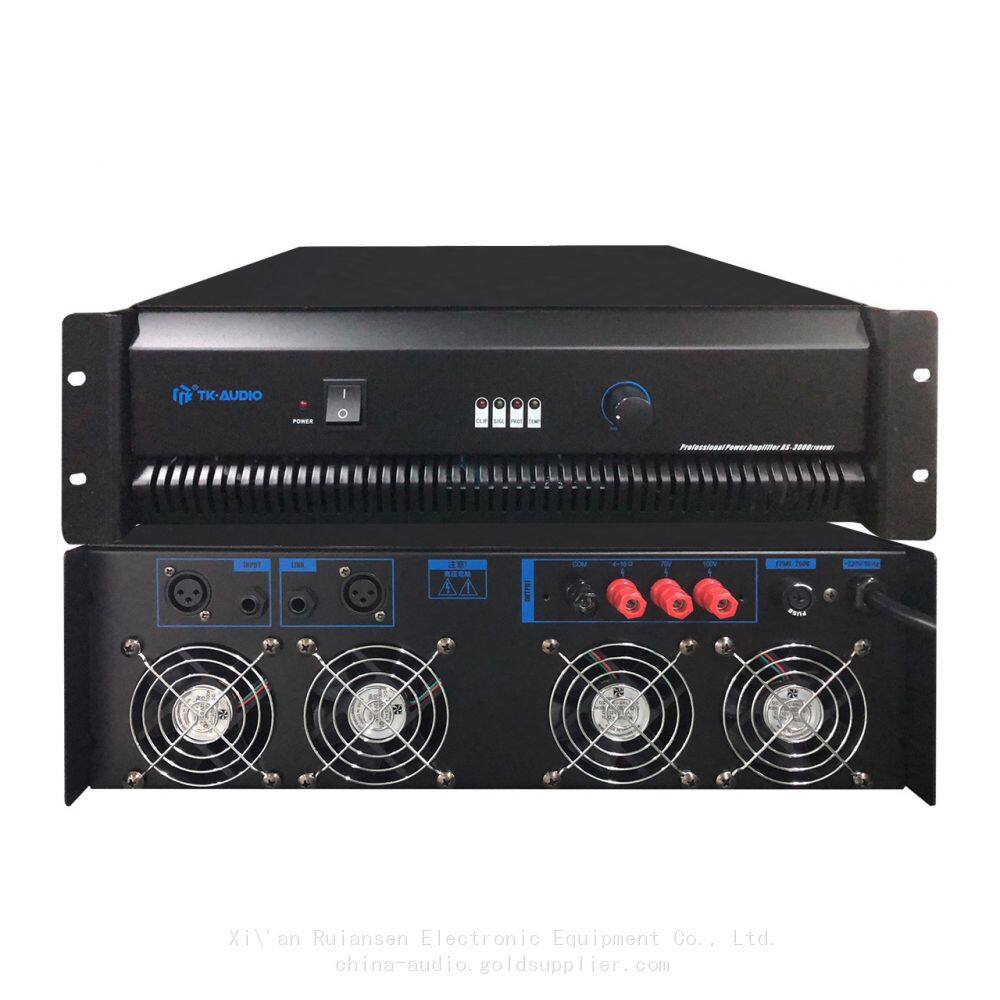

Honeywell TK-AUDIO AS-3000 Pure post-stage broadcast power amplifier 1000W
Function description
(1) It is equipped with RCA socket and XLR socket, which is very suitable for large, medium and small public broadcasting
(2) It is equipped with 100V, 70V constant voltage output and 4~16Ω constant resistance output
(3) The output volume is adjustable
(4) 5-unit LED working status display: power supply "POWER", signal "SINGNAL", elimination "CLIP", protection "PROT", high temperature "TEMP", easy to observe the working condition of the machine
(5) It has perfect output short-circuit protection and over-temperature protection functions
(6) The temperature control of the cooling fan starts
Performance specifications:
Device model AS-3000
Rated output power of 1000W
Output Mode 4-16 ohms (Ω) constant impedance output
1000W 70V(4.9 ohms(Ω)) 100V(10 ohms(Ω)) constant voltage output
Line input 10k ohms(Ω) <1V, unbalanced
The line output is 10k Ω<1V, unbalanced
Frequency response 50 Hz ~ 18k Hz (± 1.5 dB)
Nonlinear distortion THD <0.5% at 1kHz, 1/3 of the rated output power signal-to-noise ratio >85 dB S/N
Damping factor 600
Voltage rise rate 40V/uS
Output regulation <3 dB from signalless static to full capacity
Function control One volume adjustment and one power switch
Cooling method: DC 12V FAN temperature control air cooling method
Indicators Power: 'POWER', Elimination: 'CLIP', Signal: 'SINGNAL', Protection: 'PROT',
High temperature: 'TEMP'
Protects AC FUSE×20A
AC FUSE×1, short circuit load, over-temperature, DC output, output overload
Power cord (3×1.5 mm2) ×1.5M (standard)
Power Supply AC 220V ± 10% 50-60Hz
Power consumption is 1750W
Machine size 133(H)×486(W)×483(D) mm
Box size 225(H)×610(W)×585(D) mm
Net weight 25kg
Gross weight 27.5kg
