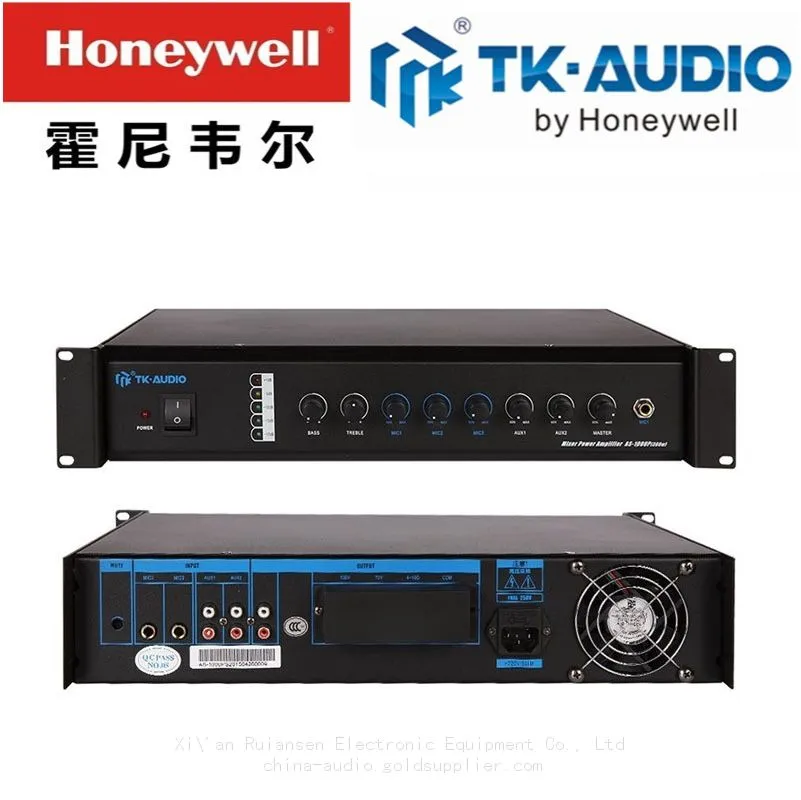

Honeywell TK-AUDIO AS-1000P Broadcast Power Amplifier 360W background music system
Function description
(1) 5 signal inputs (3 microphone inputs, 2 channel inputs)
(2) It is equipped with 100V, 70V constant voltage output and 4~16Ω constant resistance output
(3) The volume of each input channel is adjusted independently
(4) Independent adjustment of treble and bass
(5) It has a three-level priority design: MIC1 is the highest priority, MIC2, 3 and line AUX1 and 2 are the first
Level 3
(6) MIC1 automatic silent sound is equipped with adjustment switch, adjustable range: 0 to -30dB
(7) LED level display
(8) It has perfect output short-circuit protection and over-temperature protection functions
(9) The temperature control of the cooling fan is started
(10) It is very suitable for broadcasting in small and medium-sized public places
Performance specifications:
Device model AS-1000P
Rated output power 360W
Output Mode 4-16 ohms (Ω) constant impedance output
360W 70V(14 ohms(Ω)) 100V(28 ohms(Ω)) constant voltage output
Microphone input MIC1: 600 ohms(Ω) 5-8 mV, unbalanced
MIC2: 600 ohms(Ω) 5-8 mV, unbalanced
MIC3: 600 ohms(Ω) 5-8 mV, unbalanced
Line input AUX1: 10k ohms(Ω) 150-470 mV, unbalanced
AUX2: 10k ohms(Ω) 150-470 mV, unbalanced
Auxiliary Output 1.3V (0 dB)
Frequency response 60 Hz ~ 15k Hz (± 3 dB)
Nonlinear Distortion THD
Signal-to-noise ratio S/N Line: 75 dB, MIC: 60 dB
Tone adjustment range BASS: 100 Hz (± 10 dB), TREBLE: 12k Hz (± 10 dB)
Silent suppression capability When MIC1 is input, MIC2, MIC3, AUX1, and AUX2 signals are attenuated by 0~30 dB
Output regulation
Function control There are five volume adjustments, one high and one bass adjustment, one silent sound adjustment, and one power switch
Cooling method: DC 12V FAN temperature control air cooling method
Indicator Light Power: 'POWER', Level Display: '+1dB, -5dB, -10dB, -13dB, -17dB'
Protects AC FUSE×8A
AC FUSE×1, short circuit load, excessive temperature
Power cord (3×0.75 mm2) ×1.5M (standard)
Power Supply AC 220V ± 10% 50-60Hz
Power consumption is 750W
Machine size 89(H)×483(W)×366(D) mm
Box size 185(H)×520(W)×435(D) mm
Net weight 14.08kg
Gross weight 15.7kg
