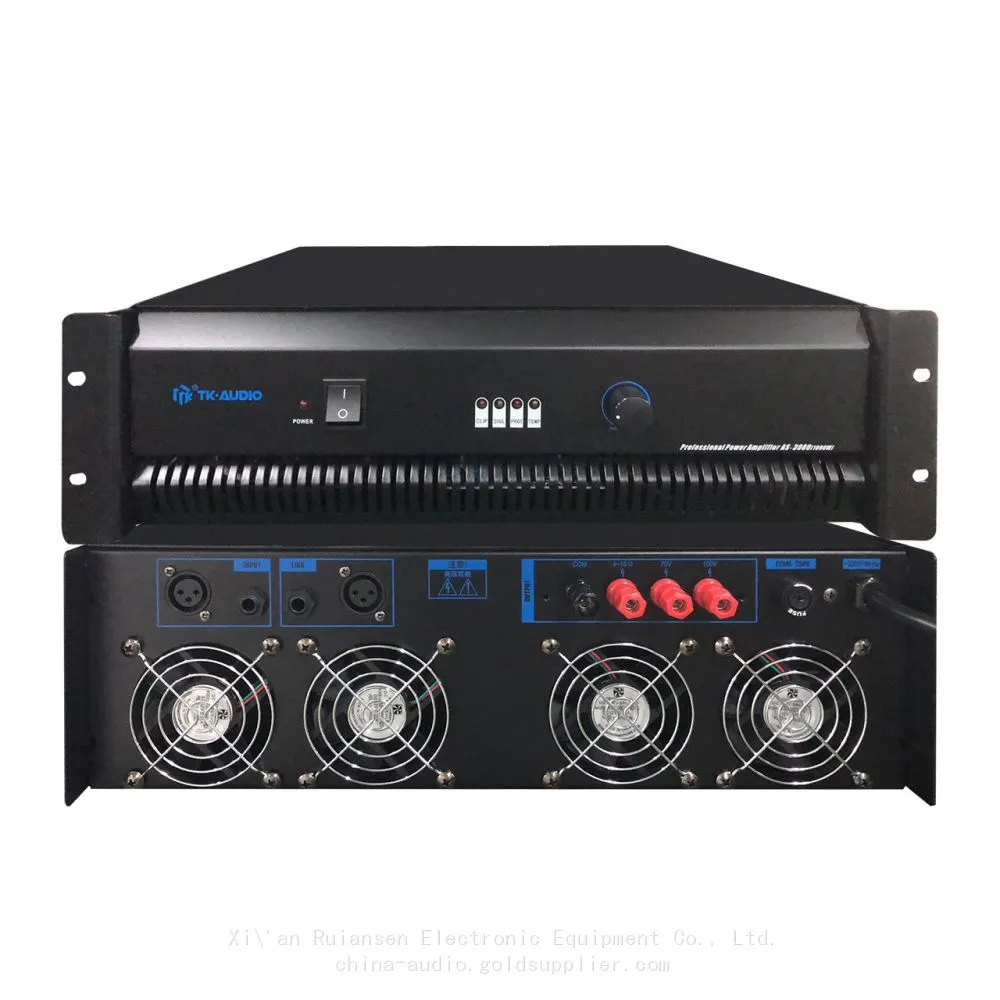

Honeywell TK-AUDIO AS-3500 Pure post-stage broadcast power amplifier 1500W
Function description
(1) It is equipped with RCA socket and XLR socket, which is very suitable for large, medium and small public broadcasting
(2) It is equipped with 100V, 70V constant voltage output and 4~16Ω constant resistance output
(3) The output volume is adjustable
(4) 5-unit LED working status display: power supply "POWER", signal "SINGNAL", elimination "CLIP", protection "PROT", high temperature "TEMP", easy to observe the working condition of the machine
(5) It has perfect output short-circuit protection and over-temperature protection functions
(6) The temperature control of the cooling fan starts
Performance specifications:
Device model AS-3500
Rated output power of 1500W
Output Mode 4-16 ohms (Ω) constant impedance output
1500W 70V(3.3 ohms(Ω)) 100V(6.7 ohms(Ω)) constant voltage output
Line input 10k ohms(Ω)
Line output 10k ohms(Ω)
Frequency response 50 Hz ~ 18k Hz (± 1.5 dB)
Nonlinear distortion THD 85 dB S/N
Damping factor 600
Voltage rise rate 40V/uS
Output regulation
Function control One volume adjustment and one power switch
Cooling method: DC 12V FAN temperature control air cooling method
Indicators Power: 'POWER', Elimination: 'CLIP', Signal: 'SINGNAL', Protection: 'PROT',
High temperature: 'TEMP'
Protects AC FUSE×25A
AC FUSE×1, short circuit load, over-temperature, DC output, output overload
Power cord (3×1.5 mm2) ×1.5M (standard)
Power Supply AC 220V ± 10% 50-60Hz
Power consumption is 2300W
Machine size 133(H)×486(W)×483(D) mm
Box size 225(H)×610(W)×585(D) mm
Net weight 27kg
Gross weight 30kg
