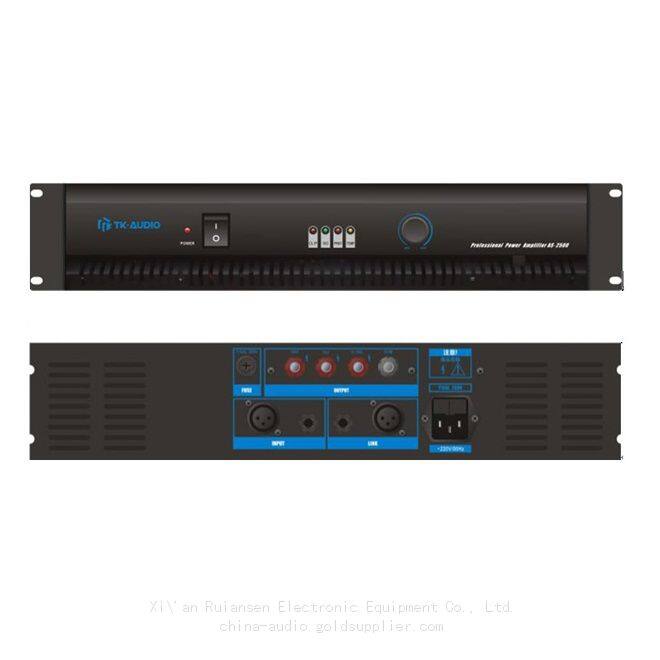

Honeywell TK-AUDIO AS-2000 Pure post-stage broadcast power amplifier 460W
Function description
(1) It is equipped with RCA socket and XLR socket, which is very suitable for large, medium and small public broadcasting
(2) It is equipped with 100V, 70V constant voltage output and 4~16Ω constant resistance output
(3) The output volume is adjustable
(4) 5-unit LED working status display: power supply "POWER", signal "SINGNAL", elimination "CLIP", protection "PROT", high temperature "TEMP", easy to observe the working condition of the machine
(5) It has perfect output short-circuit protection and over-temperature protection functions
(6) The temperature control of the cooling fan starts
Chinese performance specifications:
Equipment model AS-2000
Rated output power 460W
Output Mode 4-16 ohms (Ω) constant impedance output
460W 70V (10.7 ohms(Ω)) 100V (21.7Ω) constant voltage output
Line input <1V and unbalanced
Line output <1V, unbalanced
Frequency response 60 Hz ~ 15k Hz (± 3 dB)
Nonlinear distortion THD <0.5% at 1kHz, 1/3 of the rated output power, total harmonic distortion at full power rated output≤2% signal-to-noise ratio >75 dB S/N
Damping factor 200
Voltage rise rate 15V/uS
Output regulation <3 dB from signalless static to full capacity
Function control One volume adjustment and one power switch
Cooling method: DC 12V FAN temperature control air cooling method
Indicators Power: 'POWER', Elimination: 'CLIP', Signal: 'SINGNAL', Protection: 'PROT',
High temperature: 'TEMP'
Protect AC FUSE×15A
AC FUSE×1, short circuit load, excessive temperature
Power cord (3×1.5 mm2) ×1.5M (standard)
Power Supply AC 220V ± 10% 50-60Hz
Power consumption is 950W
Machine size 89(H)×483(W)×366(D) mm
Box size 185(H)×520(W)×435(D) mm
Net weight 17.66kg
Gross weight 19.3kg
Send Inquiry to This Supplier
You May Also Like
-
Honeywell Integrated Public Address / SpeakersNegotiableMOQ: 1 Combo
-

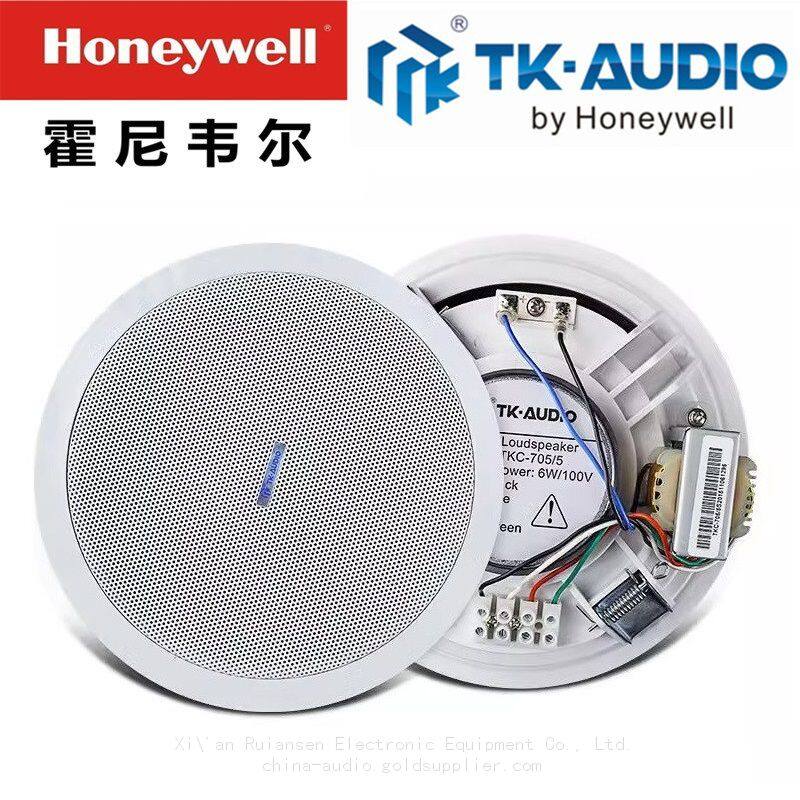

Honeywell TKC-705/5 Ceiling-mounted Speaker 3/6WNegotiableMOQ: 12 Cases
-
