# **UltraFlo PVDF Membrane: The Pinnacle of Filtration Excellence**
## **Product Overview**
Our UltraFlo series represents the next generation of ultrafiltration membranes engineered with advanced PVDF (Polyvinylidene Fluoride) material technology. Designed for exceptional durability and performance, these membranes deliver reliable separation solutions for diverse industrial and municipal applications.
## **Core Features**
- **Advanced PVDF Material**: Superior chemical resistance and mechanical strength

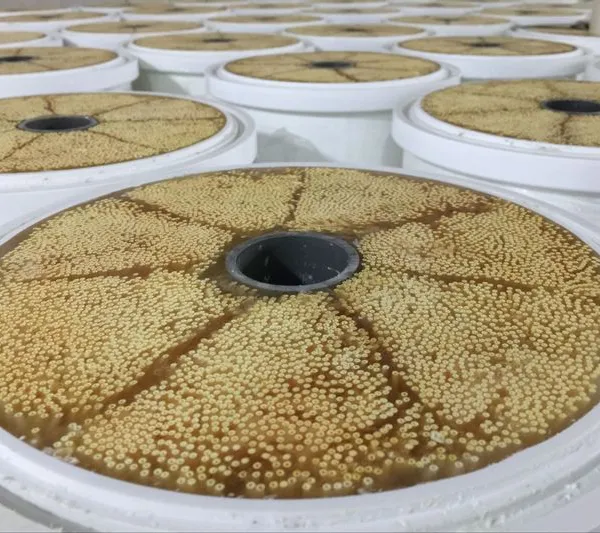

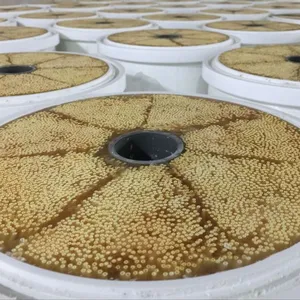

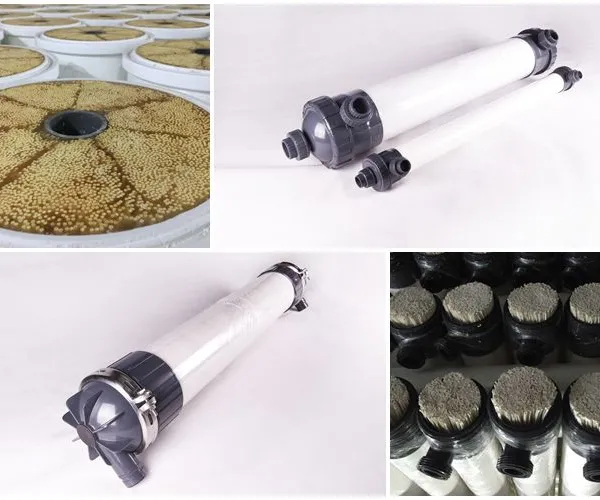

- **Hollow Fiber Configuration**: High surface-area-to-volume ratio for optimal efficiency
- **Asymmetric Structure**: Precisely controlled pore size distribution
- **Hydrophilic Modification**: Enhanced anti-fouling properties and water permeability
- **Modular Design**: Easy integration and scalability for various system requirements
## **Material Advantages: Why PVDF?**
- **Chemical Resistance**: Excellent stability against oxidants (tolerates up to 200ppm chlorine), acids, and alkalis
- **Mechanical Robustness**: High tensile strength withstands backwashing pressures up to 3 bar
- **Thermal Stability**: Operates effectively in 5-40°C temperature range
- **Long Service Life**: 3-5 years typical lifespan with proper maintenance
- **Food-Grade Certification**: Compliant with FDA and EU standards for direct contact applications
## **Technical Performance Specifications**
| Parameter | Specification |
|-----------|--------------|
| **Pore Size** | 0.01-0.1 μm (nominal) |
| **Flux Rate** | 50-150 LMH (L/m²·h) @ 25°C |
| **Recovery Rate** | >90-95% |
| **pH Range** | 2-11 (continuous operation) |
| **Operating Pressure** | 0.5-2.5 bar |
| **Turbidity Removal** | >99.9% |
| **Pathogen Removal** | >99.99% (bacteria) / >99% (virus) |
| **Backwash Interval** | 30-60 minutes |
## **Product Applications**
### **Water & Wastewater Treatment**
- **Drinking Water Purification**: Municipal water plants, decentralized systems
- **Industrial Process Water**: Pretreatment for RO systems, cooling tower make-up
- **Wastewater Reuse**: MBR (Membrane Bioreactor) systems, tertiary treatment
- **Seawater Pretreatment**: RO system protection from particulates and organics
### **Specialized Industries**
- **Food & Beverage**: Juice clarification, dairy processing, ingredient recovery
- **Biopharmaceutical**: Buffer preparation, fermentation broth clarification
- **Electronics**: Ultrapure water pretreatment, chemical recovery
- **Chemical Processing**: Catalyst recovery, product purification
## **Competitive Advantages**
1. **Lower Operating Costs**: Reduced chemical cleaning frequency (30-50% less than conventional membranes)
2. **Higher Productivity**: 15-25% greater flux compared to standard UF membranes
3. **Energy Efficient**: 0.1-0.3 kWh/m³ energy consumption
4. **Minimal Footprint**: Modular systems require 30-50% less space
5. **Smart Compatibility**: IoT-ready for remote monitoring and predictive maintenance
## **Product Keywords**
**Primary Keywords**:
- PVDF Ultrafiltration Membrane
- Hollow Fiber UF Membrane
- Industrial Ultrafiltration System
- Water Treatment Membrane
**Performance Keywords**:
- High-Flux UF Membrane
- Chemical Resistant Filter
- Low Fouling Membrane
- Backwashable Ultrafiltration
**Application Keywords**:
- MBR Membrane Bioreactor
- RO Pretreatment Membrane
- Wastewater Recycling System
- Drinking Water Purification Membrane
**Technical Keywords**:
- 0.01 Micron PVDF Membrane
- Hydrophilic UF Membrane
- Cross-flow Filtration
- Dead-end Filtration System
---
**Certifications & Compliance**: NSF/ANSI 61, ISO 9001, CE Mark, FDA CFR 21 Compliant

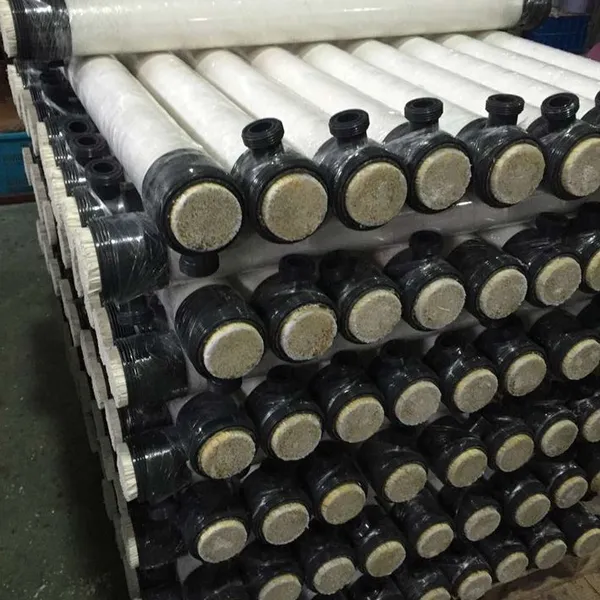

**Sizes Available**: Standard 8-inch/10-inch diameter modules, custom lengths from 40-80 inches
**Warranty**: 2-year manufacturer warranty with performance guarantee
**Technical Support**: Comprehensive service package including installation supervision, operator training, and remote diagnostic support
---
**UltraFlo PVDF Membrane: Where Advanced Material Science Meets Proven Filtration Performance**
