PVDF Hollow Fiber Ultrafiltration Membrane--4 Inch Module

PVDF Hollow Fiber Ultrafiltration Membrane--4 Inch Module thumbnail-1
PVDF Hollow Fiber Ultrafiltration Membrane--4 Inch Module thumbnail-2
PVDF Hollow Fiber Ultrafiltration Membrane--4 Inch Module thumbnail-3
PVDF Hollow Fiber Ultrafiltration Membrane--4 Inch Module thumbnail-4
PVDF Hollow Fiber Ultrafiltration Membrane--4 Inch Module thumbnail-5
PVDF Hollow Fiber Ultrafiltration Membrane--4 Inch Module photo-1
PVDF Hollow Fiber Ultrafiltration Membrane--4 Inch Module photo-2

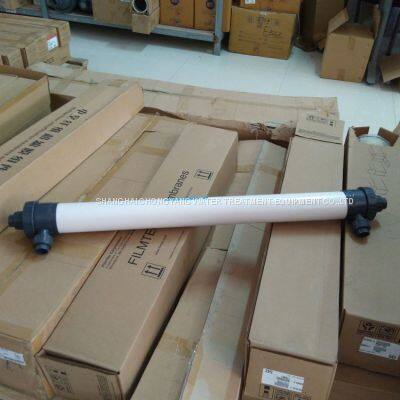

PVDF Hollow Fiber Ultrafiltration Membrane--4 Inch Module photo-3
PVDF Hollow Fiber Ultrafiltration Membrane--4 Inch Module photo-4

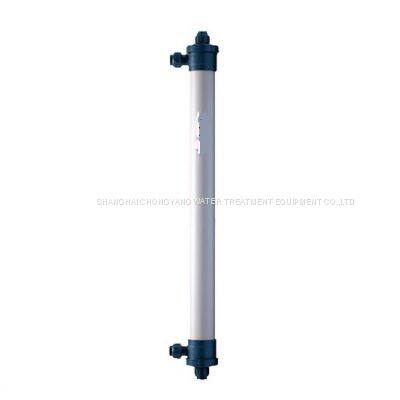

PVDF Hollow Fiber Ultrafiltration Membrane--4 Inch Module photo-5
US$ 10000 - 100000 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
CY-Water
Place of Origin:
China
Model Number:
UF Membrane
Contact Supplier Request Quote Chat Now
Shanghai Chongyang Water Treatment Equipment Co.,ltd
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
40 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name CY-Water
Place of Origin China
Model Number UF Membrane

Product Name: inline 4" uf membrane/uf membrane ceramic/uf filter ultra filter membrane

Mani Parameter of PVDF Hollow Fiber Membrane Module

Membrane Type

External Pressure Hollow Fiber

Membrane Material

PVDF

Housing Material

UPVC

Nominal membrane pore diameter

＜0.03µm

Inner & Outer Diameter

Inner & Outer Diameter 0.7*1.3mm

Module Type

OH-4”9010

OH-6”16010

OH-8”20010

OH-UF-2860

OH-UF-2880

Net weight & Water Weight (KG)

4+4

12+12

20+20

40+40

50+50

Membrane Area ㎡

9

20

35

55

73

Overall Size

90*1100

160*1100

200*1100

225*1860

225*2360

Inlet & Outlet Diameter

DN25

DN32

DN40

DN50

DN50

Pure Water Flux

≥2T/H

≥5T/H

≥6T/H

≥10T/H

≥15T/H

Design Flux 0.1Mpa/25℃

0.5-1m³/h

1-1.5m³/h

1.5-2m³/h

2-2.5m³/h

3-3.5m³/h

Interception aperture

0.03μm

Useful Life

3-5 years

Turbidity of produced water

≤ 0.2 NTU

Produced Water SDI

≤ 2.5

TOC Removal Rate

20% ～ 60 %

pH  Range

2～11 ( Cleaning  1~12)

Maximum influent turbidity

300 NTU

Maximum inlet pressure

6.0 bar

Filtration flux range

40～120 L/m2.h.bar 25℃(According to inlet condition),

Maximum Membrane Pressure Difference

3bar

Operating temperature range

2-45℃

Maximum influent residual chlorine concentration

200 mg/L

Maximum residual chlorine concentration of cleaning agent

5000 mg/L

Operation Method

Full flow Filtering or cross-flow filtering
