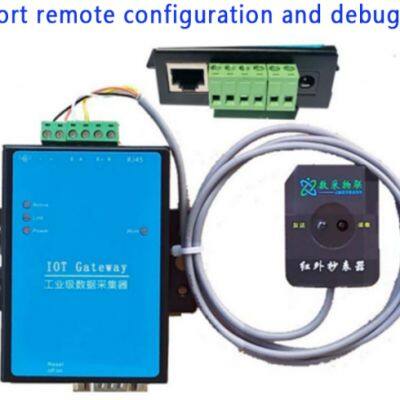

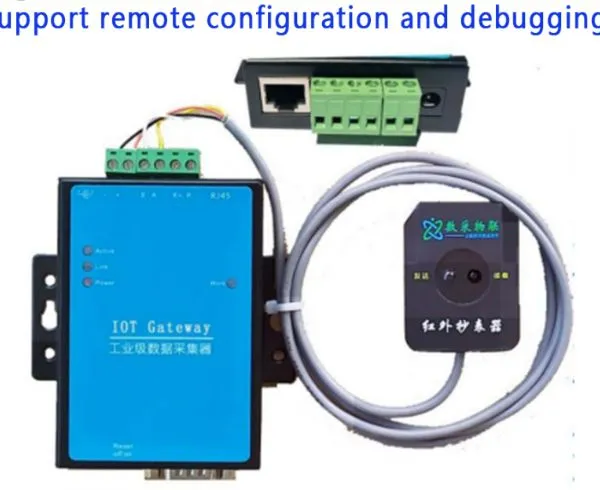

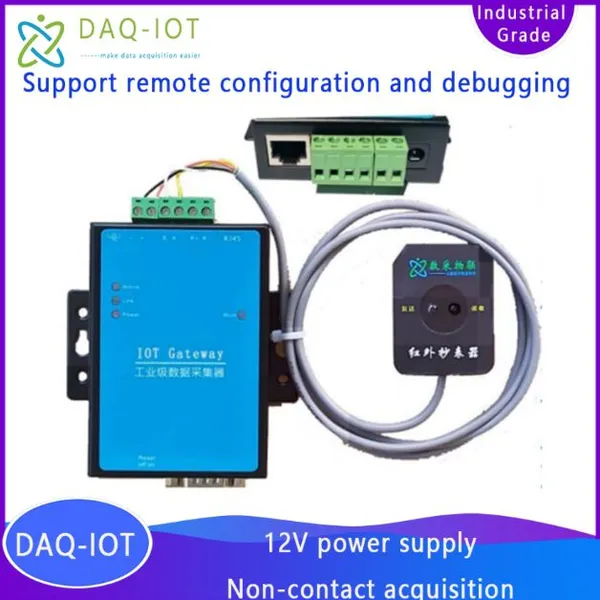

Ethernet Infrared Meter Reader DLT645 to JSON for Smart Electricity Meters

SC-GP-IR LAN Ethernet infrared meter reader is a product launched by Shanghai Shucai IoT Technology Co., Ltd. for the DLT645 to JSON function of electricity meter collection . It automatically collects data from DLT 645 meters, converts it into JSON format and sends it to the cloud server. It supports 1 Ethernet interface and RS485 serial port. The high-quality power supply design with a wide voltage of 9~24V provides better adaptability to industrial environments , and the DIN rail mounting accessories that can be equipped are suitable for DIN rail installation.

Our company solemnly promises:

You buy not only the product, but also the meticulous and thoughtful technical support service ! ! ! ( =^_^= )

This product only needs ordinary workers to connect the power and install it on site! No debugging is required!

We provide free remote guidance, remote configuration and debugging services, and send data to the user's designated cloud platform.

Free IoT solution consulting services!

"Q/GDW 1365-2013 Technical Specification for Security Certification of Smart Electricity Meter Information Exchange" State Grid Standard

《Multi-function Electric Energy Meter Communication Protocol DLT645-2007》 National Standard

"Three-phase smart energy meter type specification Q/GDW1356-2013" State Grid Standard

Interface: 485: Terminal block; 422: Terminal block

Power supply: positive inside and negative outside, standard power socket; two-wire terminal

Size: L x W x H = 9.4cm x 6.5cm x 2.5cm

Panel lights: 1. ACT: When the ACT light is green, it means that data is being transmitted normally between Ethernet and RS485. When the ACT light flashes blue, it means that data is being returned from RS485 to Ethernet. If the data is short, the blue flashing time is short, so you need to pay attention.

2. LINK: When the LINK light is green, it means the RJ45 network cable is connected. When the LINK light is blue, it means the TCP connection is established or in UDP mode.

3. POWER: Indicates that the serial port server is powered on.

Baud rate: 1200~115200bps

Parity : None, Odd, Even, Mark, Space

Data bits: 5 to 9

Operating temperature: -40~85℃

Storage temperature: -45~165℃

Humidity range: 5~95% relative humidity

Network protocols: TCP/UDP/ARP/ICMP/DHCP/DNS/HTTP

Communication method: Socket

User Configuration: Windows Configuration Tool Configuration tool

u Simple installation and quick deployment help IoT projects to be implemented quickly

u Supports full-duplex, high-speed data forwarding without packet loss.

u Non-intrusive collection, does not affect the normal operation of the equipment

u Free Windows virtual serial port & device management tool Configuration tool, supports virtual serial ports, and can search for devices and modify parameters with one click.

Support sending data in josn format
