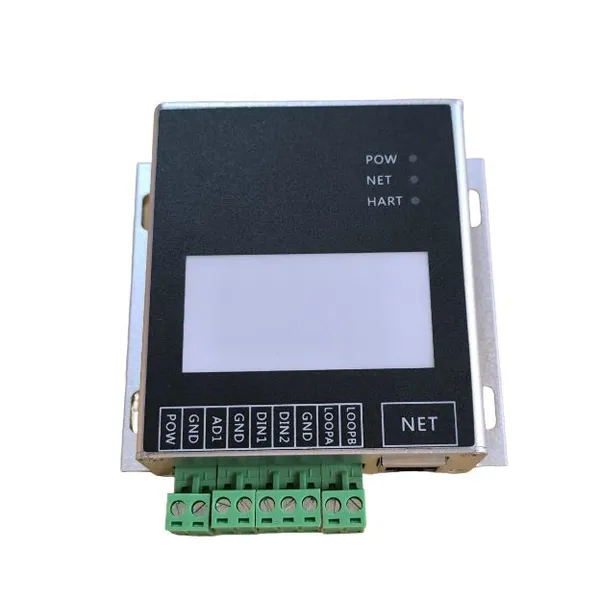

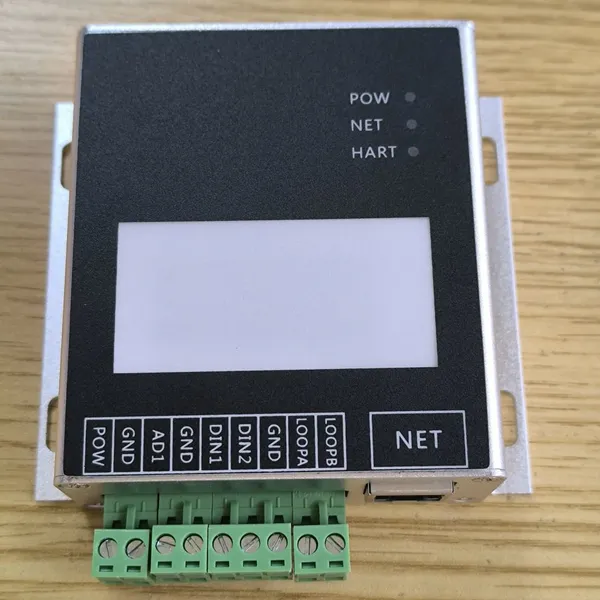

DAQ-GP-HART remote data collector is a high-tech product integrating HART protocol and TCP/IP communication, which is a miniature RTU system. It takes high-grade ARM microcontroller as the core, and consists of high-precision operational amplifier, interface chip, watchdog circuit, input/output circuit, etc. It is also embedded with TCP/IP gateway module and HART modem chip, which is characterised by stable performance and high cost performance.
As DAQ-GP-HART remote data collector is designed for industrial integration, it adopts special design in temperature range, vibration, electromagnetic compatibility and interface diversity, etc., which ensures stable operation in harsh environment and provides high quality assurance for your equipment.
1.1 Product Performance
● One way analogue sampling, 32-bit high-precision A/D sampling function at the same time.
One analogue sampling, 32-bit high-precision A/D sampling function at the same time.
● One way HART interface.
● Can be configured to collect data parameters, range, zero point, etc. ● Has a power failure memory function.
● With power failure memory function, no need to reset parameters after power failure.
Equipped with large-capacity EEPROM, data can be saved according to the set saving interval.
Power supply and HART communication indicators clearly indicate the working status of the collector.
● Data can be read directly from the instrument via HART protocol.
● All operating parameters can be queried and set locally and remotely.
● Parameters can be configured via Ethernet.
1.2 Main parameters
● Mounting dimensions: L61 mm × W94 mm.
● Shell size: L94 mm × W103 mm × H33 mm.
● Operating ambient temperature: -20°C to +80°C. ● Storage temperature: -25°C.
● Storage temperature: -25℃～+80℃.
● Power supply input voltage: DC 9 to 24V.
● Analogue input impedance: 250Ω, DC 4-20mA, DC 0-5V DC signals can be collected.
● HART protocol sampling resistance is 250Ω.
● Protection class: IP65.
