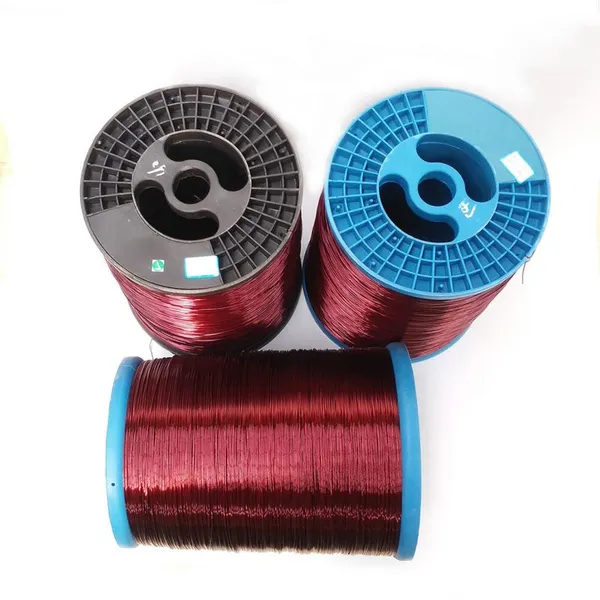

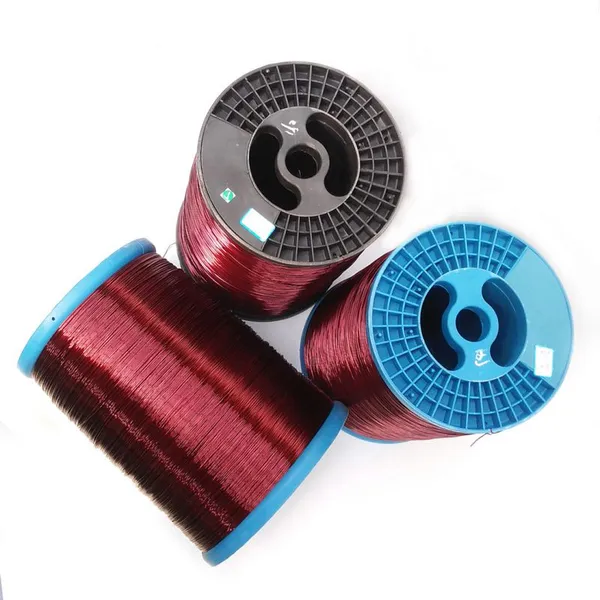

High Thermal Grade Enameled Aluminum Wire Manufactured by Professional Factory More Than 50 Years Azerbaijan
US$ 4.36
500 - 4999 Kilograms
US$ 3.96
≥5000 Kilograms
Key Specifications
Get Latest Price
Type:
Insulated
Insulation Material:
polyester-imide, Polyamide imide
Conductor Material:
Aluminum
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Wire EIW/AIW/PEW Enameled Copper Clad Aluminum Class 180 Polyester 0.50-6.00mm PhilippinesUS$ 4.65 - 4.70MOQ: 500 Kilograms -
EIAIW 220class 1.0mm-2.99mm Round Enameled Aluminum Wire For Motor Winding From SuzhouUS$ 4.65 - 4.80MOQ: 500 Kilograms
-
99.99 Pure Aluminum Enameled Copper Wire 180 Class 200 Class 220 Class From SuzhouUS$ 4.65 - 4.80MOQ: 500 Kilograms
-
Fio Enameled Aluminum Manufacturer Enameled Copper Wire for Transformer Motor 0.50-6.00mm RussiaUS$ 4.65 - 4.70MOQ: 500 Kilograms
-
Factory Price Heat Resistant Enameled Aluminum Wire Produced by Professional Manufacturer ISO9001 Certification NM1000US$ 3.89 - 4.39MOQ: 500 Kilograms
Type
Insulated
Conductor Material
Aluminum
Conductor Type
Solid
Model Number
Q(ZY/XY)-220
Brand Name
YONGDONG
Place of Origin
Shandong, China(Mainland)
Diameter:
awg
Style:
Enameled Aluminum Wire
Shape:
Round
Heat-resisting class:
C class
Insulation Material:
polyester-imide, Polyamide imide
Production Range:
0.20mm-5.00mm
Certification:
ULE234565 ROHS REACH
Bobbin:
PT25 PT30 PT60 PT200 PT270
Conductor
Aluminum
Standard
IEC NEMA GB JIS
Product Description
Round Wire Diameter: 0.5mm-6.00mm (3awg-24awg/6swg-25swg) Magnetic wire swg
Product Name: AWG enameled aluminum wire /swg Magnetic wire
SWG AWG Gauge Class 130-220 Enameled Aluminum Round Wire Price for Rewinding of Motors
Product Name | QZ(G)-155 | QZ-180 | Q(ZY/XY)-200 | Q(ZY/XY)-220 |
Thermal Class | 155, class F | 180, class H | 200, class C | 220, class N |
Coating Material | PEW(G) | EIW | EI/AIW | EI/AIW |
Cross Section Range (mm) | 0.20-5.00 | 0.20-5.00 | 0.20-5.00 | 0.20-5.00 |
Insulation Thickness (IEC) | Grade 1 Grade 2 Grade 3 | Grade 1 Grade 2 Grade 3 | Grade 1 Grade 2 Grade 3 | Grade 1 Grade 2 Grade 3 |
Standard | GB/T6109.2 GB/T23312.4 IEC60317-3 | GB/T6109.5 GB/T23312.5 IEC60317-8 NW30 | GB/T6109.20 GB/T23312.7 IEC60317-13 NW35 | GB/T6109.22 IEC60317-46 NW16 |
