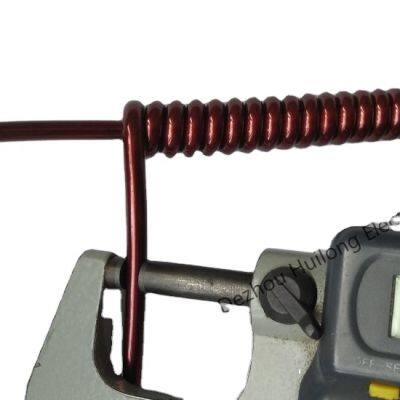

Max Diameter Enameled Aluminium Round Wire Manufacturer 5.0mm 6.0mm From Suzhou
US$ 4 - 6
MOQ: 1 Kilogram
Key Specifications
Get Latest Price
Type:
Insulated
Insulation Material:
EI/AIW
Conductor Material:
Aluminum
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
PEW Electric Motor Winding Wire Enameled Aluminium Enamelled Winding Wires From SuzhouUS$ 3.70 - 4.00MOQ: 500 Kilograms -
Electrical Wires Aluminum Conductor With Varnish Enameled Aluminum Winding Manufacturer Price IEC-60317 Standard VietnamUS$ 4.28 - 4.58MOQ: 500 Kilograms
-
China Factory Direct Supply 0.300mm-5.0mm 200C Round Size Aluminium Enamelled Winding Wire AWG4-AWG32 VietnamUS$ 4.65 - 4.80MOQ: 500 Kilograms
-
6 Awg Magnet Wire PakistanUS$ 4 - 6MOQ: 1 Kilogram
-
New Type 240 Class Aluminum Enameled Winding Wire for Voice CoilUS$ 4 - 6MOQ: 1 Kilogram
Type
Insulated
Conductor Material
Aluminum
Conductor Type
Solid
Model Number
Q(ZY/XY)-200
Brand Name
YONGDONG
Place of Origin
Other Country
Diameter:
5.0MM
Style:
Enameled Aluminum Wire
Shape:
Round
Heat-resisting class:
C class
Insulation Material:
polyester-imide, Polyamide imide
Production Range:
0.20mm-6.0mm
Certification:
UL234565 ROHS REACH
Bobbin:
PT25 PT30 PT60 PT200
Product Description
Round Wire Diameter: 0.2mm-6.0mm
Product Name: max diameter enameled aluminium round wire manufacturer 5.0mm 6.0mm
Product Name | QZL-155 | QZYL-180 | Q(ZY/XY)-200 | Q(ZY/XY)L-220 |
Thermal Class | 155, class F | 180, class H | 200, class C | 220, class C |
Coating Material | PEW(G) | EIW | EI/AIW | EI/AIW |
Cross Section Range (mm) | 0.2-4.5 | 0.2-4.5 | 0.2-4.5 | 0.2-4.5 |
Insulation Thickness (IEC) | Grade 1 Grade 2 Grade 3 | Grade 1 Grade 2 Grade 3 | Grade 1 Grade 2 Grade 3 | Grade 1 Grade 2 Grade 3 |
Standard | GB/T6109.2 GB/T23312.4 IEC60317-3 | GB/T6109.5 GB/T23312.5 IEC60317-8 NW30 | GB/T6109.20 GB/T23312.7 IEC60317-13 NW35 | GB/T6109.22 IEC60317-46 NW16 |
