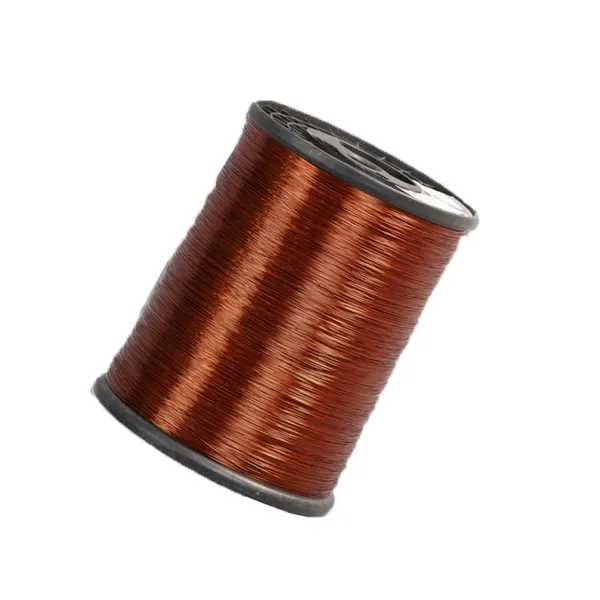

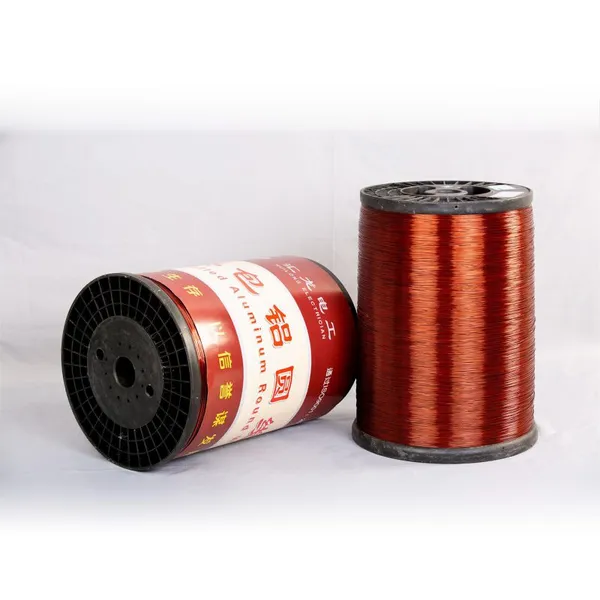

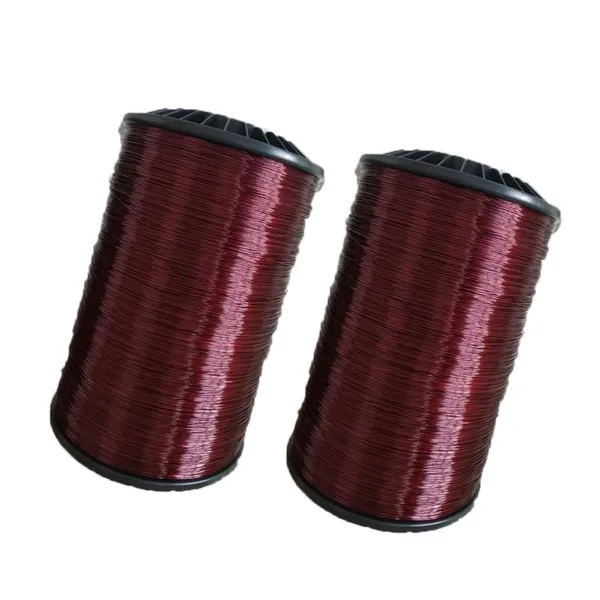

High Heat Resistance Aluminum Enameled Magnet Wire 0.50-6.00 mm for Motors and Transformers Round Wire
US$ 3.96
500 - 4999 Kilograms
US$ 3.73
≥5000 Kilograms
Key Specifications
Get Latest Price
Type:
Insulated
Insulation Material:
EI/AIW
Conductor Material:
Aluminum
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
6.0mm Max Diameter Enameled Aluminium Round Wire Manufacturer CameroonUS$ 4 - 6MOQ: 1 Kilogram -
QZYB-180 High Temperature Resistant Enameled Aluminum Wire Produced by Professional Manufacturer ISO9001 CertificationUS$ 3.65 - 3.99MOQ: 500 Kilograms
-
Insulated Aluminum Wire With Varnish Professional Manufacturer Prices AWG SWG With UL ISO ROHS Certification From SuzhouUS$ 3.58 - 3.88MOQ: 500 Kilograms
-
Enameled Wire Aluminum Conductor With Varnish Insulation Professional Manufacturer Prices AWG SWG With UL Certification ThailandUS$ 3.61 - 3.89MOQ: 500 Kilograms
-
Electrical Wires Aluminum Wire Heat Resistant Enameled Aluminum Wire Produced by Professional Factory More Than 50 Years ThailandUS$ 3.62 - 3.91MOQ: 500 Kilograms
Type
Insulated
Conductor Material
Aluminum
Conductor Type
Solid
Model Number
Q(ZY/XY)-180
Brand Name
YONGDONG
Place of Origin
Shandong, China(Mainland)
Diameter:
0.50-6.0 mm
Style:
Enameled Aluminum Wire
Shape:
Round
Insulation Material:
polyester-imide, Polyamide imide
Production Range:
0.60mm-6.00mm
Certification:
ULe234565 ROHS REACH
Bobbin:
PT25 PT30 PT60 PT200
Material
High Purity Aluminium
Standard
IEC NEMA GB JIS
MOQ
500kg
Product Description
Round Wire Diameter: 0.6mm
Scope: 4awg-23awg
Product Name: hHigh voltage aluminum enameling magnet wire for electrical motor 0.60-6.00mm
Product Name | QZ(G)-155 | QZ-180 | Q(ZY/XY)-200 | Q(ZY/XY)-220 |
Thermal Class | 155, class F | 180, class H | 200, class C | 220, class N |
Coating Material | PEW(G) | EIW | EI/AIW | AIW |
Cross Section Range (mm) | 0.2-5.0 | 0.2-5.0 | 0.2-5.0 | 0.2-5.0 |
Insulation Thickness (IEC) | Grade 1 Grade 2 Grade 3 | Grade 1 Grade 2 Grade 3 | Grade 1 Grade 2 Grade 3 | Grade 1 Grade 2 Grade 3 |
Standard | GB/T6109.2 GB/T23312.4 IEC60317-3 | GB/T6109.5 GB/T23312.5 IEC60317-8 NW30 | GB/T6109.20 GB/T23312.7 IEC60317-13 NW35 | GB/T6109.22 IEC60317-46 NW16 |
