Home > Electrical & Electronics > Optical Fiber, Cable & Wire > Electric Wire & Cable > Big Size 6.0 mm Pure Aluminum Enameled Aluminum Wire QZYL 180 Class Pakistan

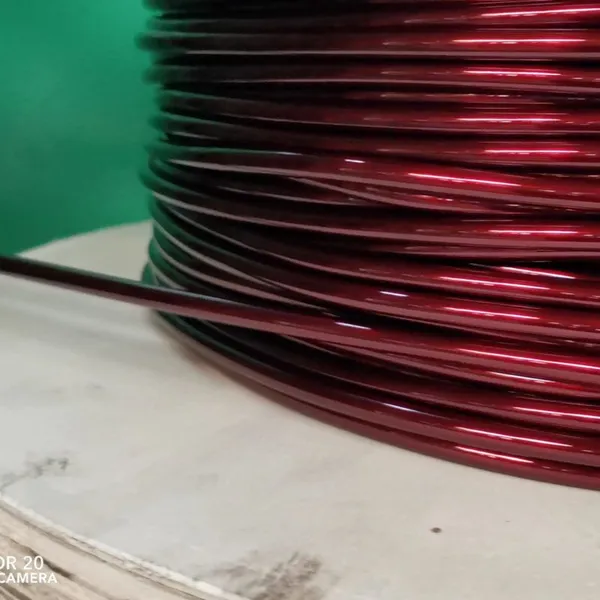

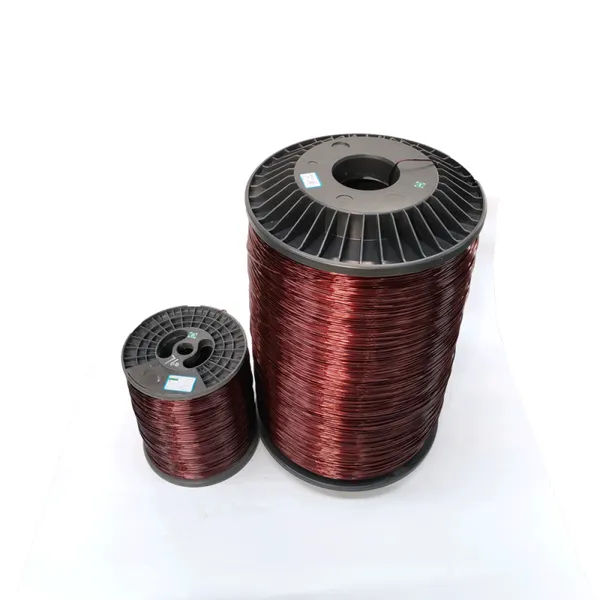

Big Size 6.0 mm Pure Aluminum Enameled Aluminum Wire QZYL 180 Class Pakistan
US$ 4.80
500 - 4999 Kilograms
US$ 4.75
5000 - 17999 Kilograms
US$ 4.65
≥18000 Kilograms
Key Specifications
Get Latest Price
Type:
Insulated
Insulation Material:
EI/AIW
Conductor Material:
Aluminum
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
High Temperature Resistant Enameled Aluminum Wire Professional Equipment Electric Wires BrazilUS$ 3.85 - 4.01MOQ: 500 Kilograms -
High Heat Resistance Aluminum Enameled Magnet Wire 0.50-6.00 mm for Motors and Transformers Round WireUS$ 3.73 - 3.96MOQ: 500 Kilograms
-
6.0mm Max Diameter Enameled Aluminium Round Wire Manufacturer CameroonUS$ 4 - 6MOQ: 1 Kilogram
-
QZYB-180 High Temperature Resistant Enameled Aluminum Wire Produced by Professional Manufacturer ISO9001 CertificationUS$ 3.65 - 3.99MOQ: 500 Kilograms
-
Insulated Aluminum Wire With Varnish Professional Manufacturer Prices AWG SWG With UL ISO ROHS Certification From SuzhouUS$ 3.58 - 3.88MOQ: 500 Kilograms
Type
Insulated
Conductor Material
Aluminum
Conductor Type
Solid
Model Number
QZYL 180
Brand Name
YONGDONG
Place of Origin
Shandong, China(Mainland)
Diameter:
6.0
Style:
Enameled Aluminum Wire
Shape:
Round
Insulation Material:
polyester-imide, Polyamide imide
Production Range:
0.14mm-6.0mm
Certification:
ROHS REACH
Bobbin:
PT25 PT30 PT60 PT200 PT270
Product Description
Product Name: 6.0mm Pure aluminum enameled wire 180 class
Product Name |
QZ(G)L-155 |
QZYL-180 |
Q(ZY/XY)L-200 |
Q(ZY/XY)L-220 |
Thermal Class |
155, class F |
180, class H |
200, class C |
220, class N |
Coating Material |
PEW(G) |
EIW |
EI/AIW |
EI/AIW |
Cross Section Range (mm) |
0.14-6.0 |
0.14-6.0 |
0.14-6.0 |
0.14-6.0 |
Insulation Thickness (IEC) |
Grade 1
Grade 2
Grade 3
|
Grade 1
Grade 2
Grade 3
|
Grade 1 Grade 2 Grade 3 |
Grade 1 Grade 2 Grade 3 |
Product Details
Techinical Data
Why do enamelled aluminium wires fail to bond properly?
During the use of enameled aluminum wire, cracking, patent leather or cracking may occur, it collectively referred to as adhesion problems for the following reasons:
1. The first coat of paint is too thin
2. The thickness of the paint is not uniform, one side is thick, the other side is thin.
3. Paint film thickness uneven at different courses.
4. The speed of the machine is not suitable, resulting in insufficient curing or over curing
5. The material problem of the insulating paint itself.
6.The diameter of enameled aluminum wire is not round.
That is all the reasons we often meet with the unqualified adhesion of enameled aluminum wire.
Packing & Delivery
Certifications
Our Company
FAQ
Send Inquiry to This Supplier
1Yr
Business Type
Manufacturer
Year Established
1970
Factory Size
10,000-30,000 square meters
Annual Export Value
Above US$100 Million
