Home > Electrical & Electronics > Optical Fiber, Cable & Wire > Electric Wire & Cable > Electrical Supplies Enameled Aluminum Wires With Insulation Coating for Transformer Coil Motors ISO UL ROHS REACH Certification Spain

Electrical Supplies Enameled Aluminum Wires With Insulation Coating for Transformer Coil Motors ISO UL ROHS REACH Certification Spain

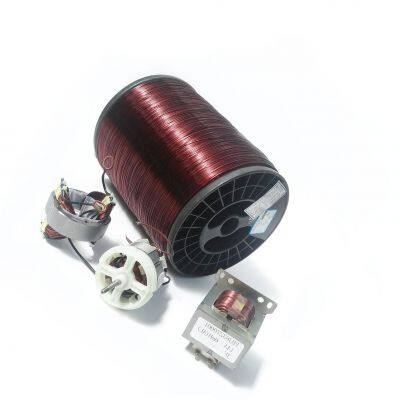

Electrical Supplies Enameled Aluminum Wires With Insulation Coating for Transformer Coil Motors ISO UL ROHS REACH Certification Spain photo-1

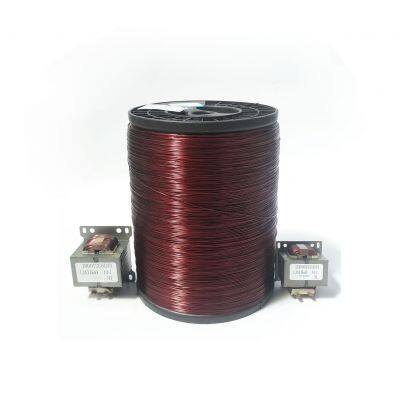

Electrical Supplies Enameled Aluminum Wires With Insulation Coating for Transformer Coil Motors ISO UL ROHS REACH Certification Spain photo-2

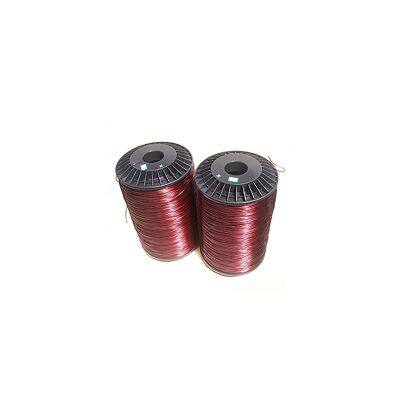

Electrical Supplies Enameled Aluminum Wires With Insulation Coating for Transformer Coil Motors ISO UL ROHS REACH Certification Spain photo-3
Electrical Supplies Enameled Aluminum Wires With Insulation Coating for Transformer Coil Motors ISO UL ROHS REACH Certification Spain photo-4
Electrical Supplies Enameled Aluminum Wires With Insulation Coating for Transformer Coil Motors ISO UL ROHS REACH Certification Spain photo-5
Electrical Supplies Enameled Aluminum Wires With Insulation Coating for Transformer Coil Motors ISO UL ROHS REACH Certification Spain photo-6
US$ 3.95 500 - 4999 Kilograms
US$ 3.55 ≥5000 Kilograms
Key Specifications
Get Latest Price
Type:
Insulated
Insulation Material:
polyesterimide/polyamidimide
Conductor Material:
Aluminum
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Type Insulated
Conductor Material Aluminum
Conductor Type Solid
Model Number Q(ZY/XY)L-2/220
Brand Name YONGDONG
Place of Origin Shandong, China(Mainland)
Diameter: 4AWG-32AWG
Brand Name: YONGDONG
Bobbin: PT25/PT30/PT60/PT200/PT270
Coating: polyesterimide/polyamidimide
Executive standard: IEC60317 NEMC JIS GB
Certification: ULE234565 ROHS REACH ISO9001
Heat-resisting class: C class
Production Range: 0.20mm-5.00mm
Model: -1/-2/-3
Shape: Round
Product Description

Enameled Aluminum Wire:

Round Wire Diameter: 0.6mm-5.00mm (4awg-32awg) Magnetic wire swg
Product Name: PT200 spool EI/AIW 200 class enameled aluminum wire for transformer
SWG AWG Gauge Class 130-220 Enameled Aluminum Round Wire Price for Rewinding of Motors
Specification
item
value
Place of Origin
Shandong, China(Mainland)
Brand Name
YONGDONG
Model Number
Q(ZY/XY)L-2/220
Type
insulated
Application
Microwave Oven
Conductor Material
Aluminum
Conductor Type
Solid
Insulation Material
polyesterimide/polyamidimide
Diameter:
4AWG-32AWG
Bobbin:
PT25/PT30/PT60/PT200/PT270
Coating:
polyesterimide/polyamidimide
Executive standard:
IEC60317 NEMC JIS GB
Certification:
ULE234565 ROHS REACH ISO9001
Heat-resisting class:
C class
Production Range:
0.20mm-5.00mm
Model:
-1/-2/-3
Shape:
Round
Packing & Delivery
Packed in cartons,standard exprot pallet packing for enamelled wire. Inner packing: Different plastic spools according to wire size(PT25,PT30,PT60,PT200,PT270) Outer packing: Carton and wooden case or customer required
Company Profile
Dezhou Huilong Electrical Equipment Co., Ltd. was formerly known as Dezhou Enameled Wire Factory, which was established in 1970. It has more than 70 employees and has 40 years of professional production of enameled wire and mature production technology support. The products are mature and stable in quality. South Korea, Thailand, India, Brazil, Italy, Indonesia, Turkey, and other countries are familiar with the country's technical standards and requirements. In November 2000, it passed the ISO9000 certification. The company has strong technical strength and advanced supporting equipment and complete testing equipment. There are up to 13 inspection items to ensure that the quality of the finished enameled wire meets customer needs and standards. Our company now has 24 drawing machines and 8 enamel machines. The newly introduced vertical furnace enamel machine can produce spools within PT270. In order to meet the quality requirements of the enameled wire, all painting equipment is transformed into mold paint. The product is uniform and has excellent performance.
Certifications
FAQ
1. who are we?
We are based in Shandong, China, start from 2010,sell to Domestic Market(55.00%),Southeast Asia(10.00%),South America(6.00%),Eastern Asia(5.00%),Northern Europe(4.00%),South Asia(4.00%),Africa(4.00%),Mid East(3.00%),North America(2.00%),Central America(2.00%),Southern Europe(2.00%),Eastern Europe(1.00%),Oceania(1.00%),Western Europe(1.00%). There are total about 51-100 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
enameled aluminum wire,enameled copper wire,Enameled flat wire,Paper covered wire

4. why should you buy from us not from other suppliers?
DezhouHuilongElectricalEquipment Co., Ltd. was formerly known as Enameled Wire Factory.It was established in 1970 and covers an area of over 20,000 square meters.It has a registered capital of 3 million yuan and more than 40 years of production experience.

5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW,DDP,DDU;
Accepted Payment Currency:USD,GBP,CNY;
Accepted Payment Type: T/T,L/C,Western Union;
Language Spoken:English,Chinese
