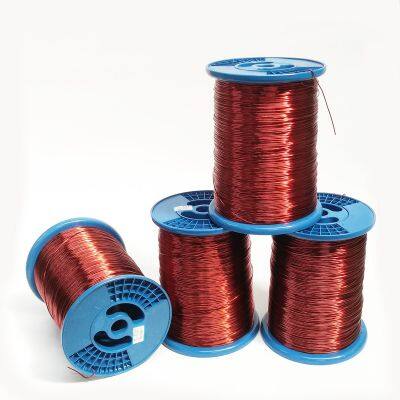

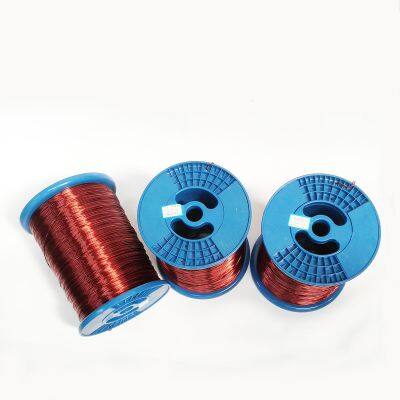

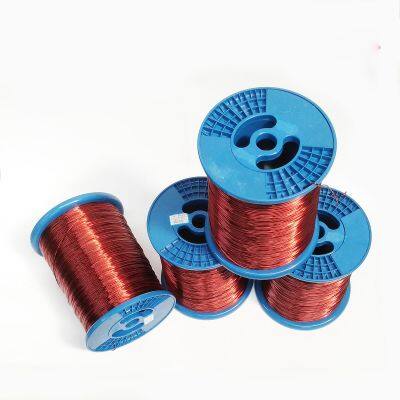

Electrical Wires High Heat Resistance 200 Class IEC-60317 Standard Enameled Aluminum Wire
US$ 3.85
500 - 4999 Kilograms
US$ 3.51
≥5000 Kilograms
Key Specifications
Get Latest Price
Type:
Insulated
Insulation Material:
polyester-imide, Polyamide imide
Conductor Material:
Aluminum
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Electrical Supplies High Temperature Resistance Class 200 Enameled Aluminium Winding Wire AWG 16 for Transformer Coils PeruUS$ 3.50 - 3.90MOQ: 500 Kilograms -
Electrical Supplies China Factory UL Approve Class 200 Enameled Aluminum Round Wire For TransformerUS$ 3.45 - 3.85MOQ: 500 Kilograms
-
Electrical Supplies 6.0 mm IEC-60317 Enameled Aluminum Round Electrical Wires Manufacturing Price for Transformer PeruUS$ 3.92 - 4.02MOQ: 500 Kilograms
-
Electrical Supplies Aluminum Winding Wire UL Certified Enameled Electrical Wires AWG EI/AIW 200/220 for Magnetic CoilUS$ 3.60 - 3.90MOQ: 500 Kilograms
-
Electrical Supplies ISO9001 Certification Aluminum Enameled Wire Polyamideimide Composite Polyester Enamel Aluminum Coil WindingUS$ 3.59 - 3.89MOQ: 500 Kilograms
Type
Insulated
Conductor Material
Aluminum
Conductor Type
Solid
Model Number
Q(ZY/XY)-220
Brand Name
YONGDONG
Place of Origin
Shandong, China
Diameter:
awg
Style:
Enameled Aluminum Wire
Shape:
Round
Heat-resisting class:
C class
Insulation Material:
polyester-imide, Polyamide imide
Production Range:
0.20mm-5.00mm
Certification:
ULE234565 ROHS REACH
Bobbin:
PT25 PT30 PT60 PT200 PT270
Product name
enameled aluminum wire
Product Description
Round Wire Diameter: 0.2mm-5.00mm (4awg-32awg/6swg-35swg) Magnetic wire SWG
Product Name: AWG enameled aluminum wire /SWG Magnetic wire
The enameled wire is made of Elentas paint, and all of it is painted with a mold to ensure the continuity and stability of the product. The voltage is above 5000V. Suitable for oil transformers and high-temperature resistant power tool coils.
ULe234565, SGS certified global hot enameled wire
In order to show our sincerity, our company can provide free samples, but the freight is borne by the buyer. We will reduce all the expenses in the first trial. Be honest and serve first.

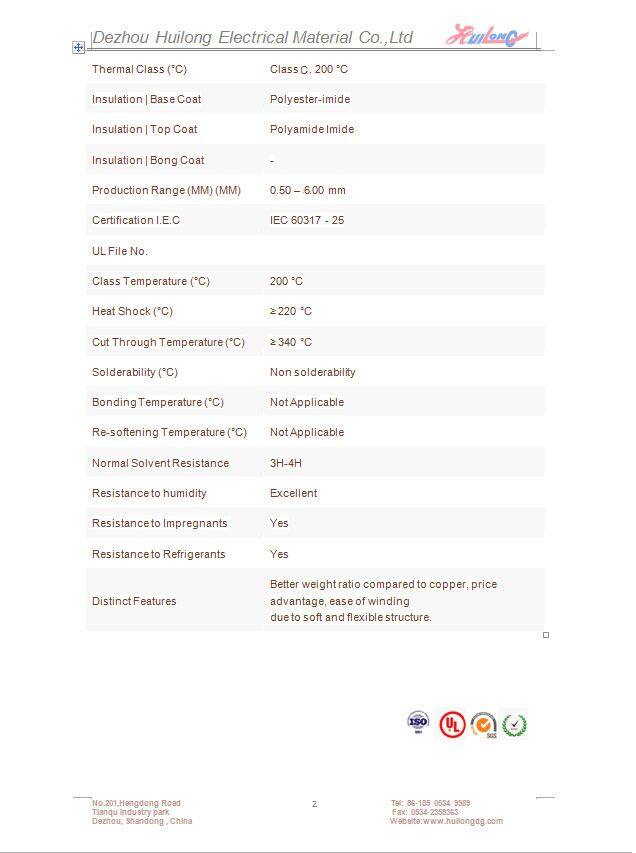

Product Name | QZ(G)-155 | QZ-180 | Q(ZY/XY)-200 | Q(ZY/XY)-220 |
Thermal Class | 155, class F | 180, class H | 200, class C | 220, class N |
Coating Material | PEW(G) | EIW | EI/AIW | EI/AIW |
Cross Section Range (mm) | 0.20-5.00 | 0.20-5.00 | 0.20-5.00 | 0.20-5.00 |
Insulation Thickness (IEC) | Grade 1 Grade 2 Grade 3 | Grade 1 Grade 2 Grade 3 | Grade 1 Grade 2 Grade 3 | Grade 1 Grade 2 Grade 3 |
Standard | GB/T6109.2 GB/T23312.4 IEC60317-3 | GB/T6109.5 GB/T23312.5 IEC60317-8 NW30 | GB/T6109.20 GB/T23312.7 IEC60317-13 NW35 | GB/T6109.22 IEC60317-46 NW16 |
