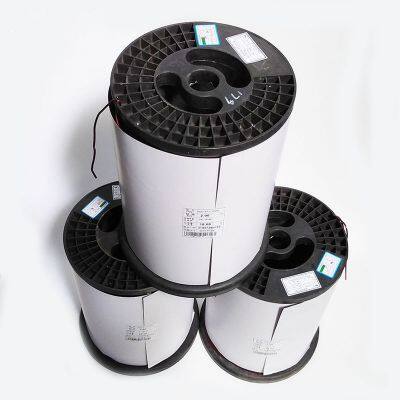

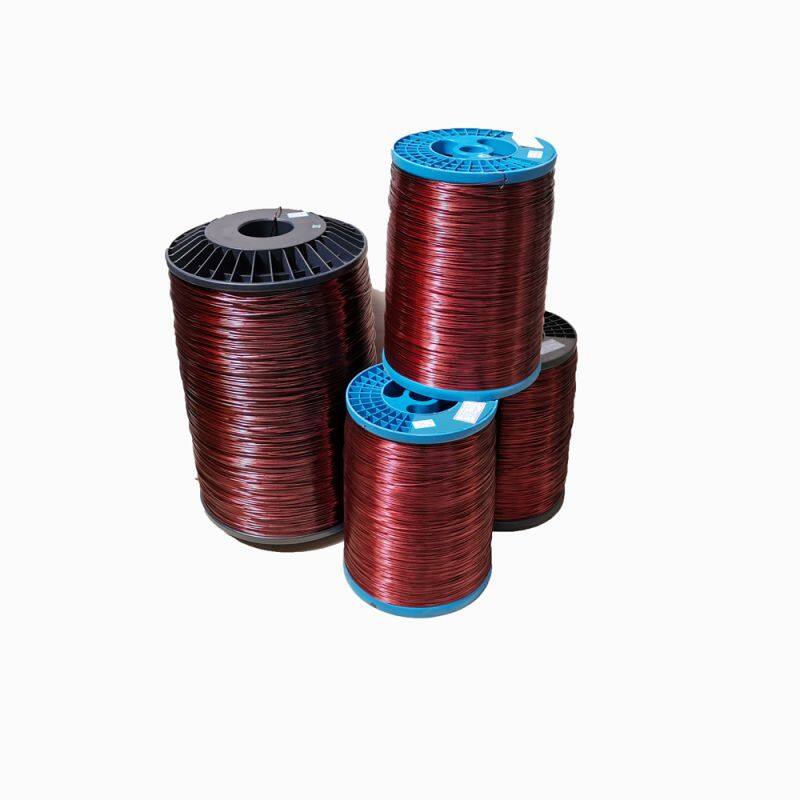

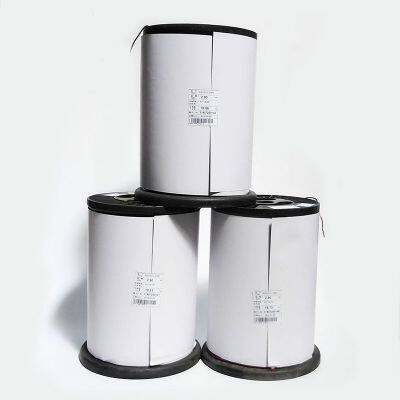

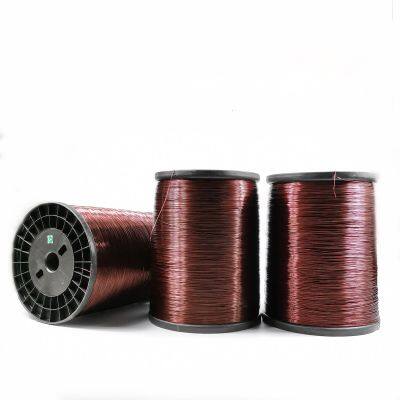

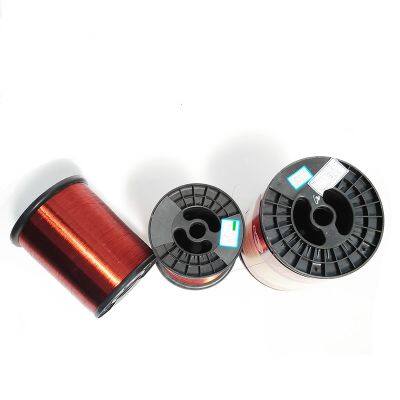

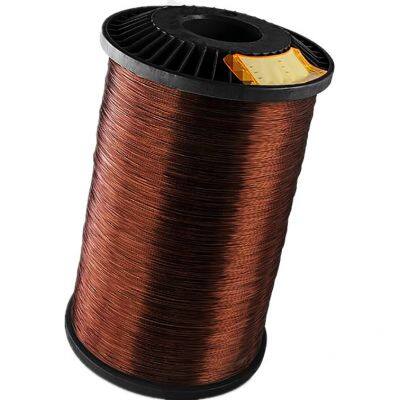

Electrical Supplies Enameled Aluminum Round Wire Insulated Winding Coil ISO9001 UL Certification Peru
US$ 3.91
500 - 4999 Kilograms
US$ 3.53
≥5000 Kilograms
Key Specifications
Get Latest Price
Type:
Insulated
Insulation Material:
polyester-imide, Polyamide imide
Conductor Material:
Aluminum
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Electrical Supplies High Grade RoHS REACH Certification Enameled Aluminum Winding Wire Ceiling Fan IEC-60317 Standard PeruUS$ 3.56 - 3.91MOQ: 500 Kilograms -
Electrical Supplies Enameled Insulation Aluminum Conductor Electrical Magnet Wire With ISO9001 UL Certification PeruUS$ 3.58 - 3.89MOQ: 500 Kilograms
-
Electrical Wires Enameled Aluminum Round Wire for Motor Transformers REACH ROHS CertificationUS$ 3.53 - 3.90MOQ: 500 Kilograms
-
Electrical Wires Enameled Aluminum Magnet Wires With Insulation for Transformer Coil Motors ISO UL ROHS REACH Certification PeruUS$ 3.55 - 3.92MOQ: 500 Kilograms
-
Electrical Wires Best Selling Enameled Aluminum Round Wire Insulated Winging AWG SWG IEC-60317US$ 3.52 - 3.88MOQ: 500 Kilograms
Type
Insulated
Conductor Material
Aluminum
Conductor Type
Solid
Model Number
Q(ZY/XY)-200
Brand Name
YONGDONG
Place of Origin
Shandong, China(Mainland)
Diameter:
AWG/SWG
Style:
Enameled Aluminum Wire
Shape:
Round
Heat-resisting class:
C class
Insulation Material:
polyester-imide, Polyamide imide
Production Range:
0.20mm-5.00mm
Certification:
ISO9001 ROHS REACH
Bobbin:
PT25 PT30 PT60 PT200 PT270
Standard
IEC NEMA GB JIS
Conductor
Aluminum
Product Description
Round Wire Diameter: 0.2mm-5.00mm (4awg-32awg/6swg-35swg) Magnetic wire swg
Product Name: 200 class enameled aluminum wire for transformer cleaning machine
SWG AWG Gauge Class 130-220 Enameled Aluminum Round Wire Price for Rewinding of Motors
Product Paramenters
Product Name | QZ(G)-155 | QZ-180 | Q(ZY/XY)-200 | Q(ZY/XY)-220 |
Thermal Class | 155, class F | 180, class H | 200, class C | 220, class N |
Coating Material | PEW(G) | EIW | EI/AIW | EI/AIW |
Cross Section Range (mm) | 0.20-5.00 | 0.20-5.00 | 0.20-5.00 | 0.20-5.00 |
Insulation Thickness (IEC) | Grade 1 Grade 2 Grade 3 | Grade 1 Grade 2 Grade 3 | Grade 1 Grade 2 Grade 3 | Grade 1 Grade 2 Grade 3 |
Standard | GB/T6109.2 GB/T23312.4 IEC60317-3 | GB/T6109.5 GB/T23312.5 IEC60317-8 NW30 | GB/T6109.20 GB/T23312.7 IEC60317-13 NW35 | GB/T6109.22 IEC60317-46 NW16 |
PT200 spool | 410*410*660 mm 65-75KG | 410*410*660 mm 65-75KG | 410*410*660 mm 65-75KG | 410*410*660 mm 65-75KG |
